Entry handle set lock

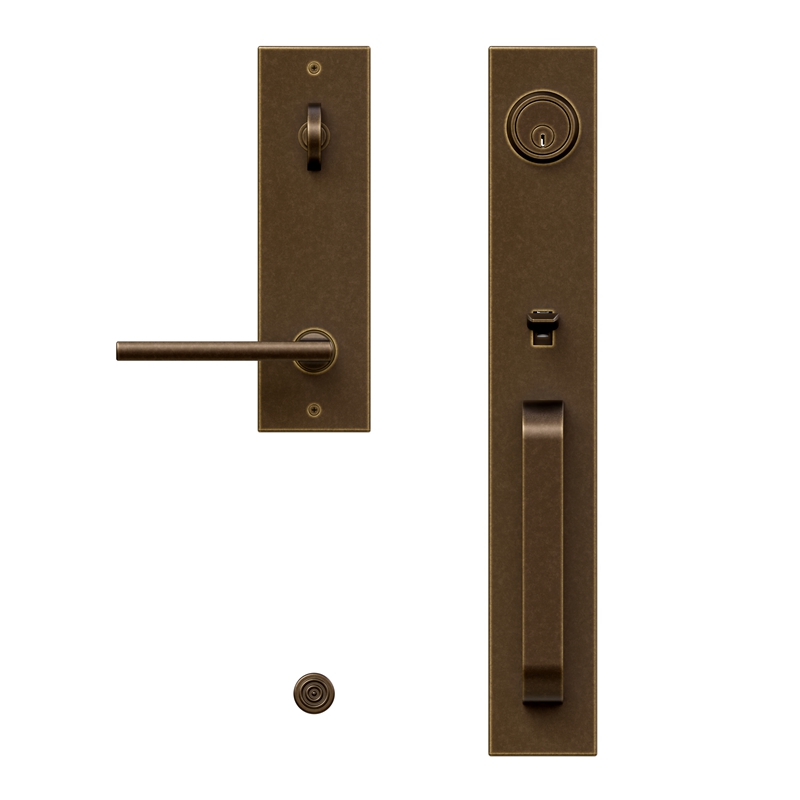

M15 Entry Handle Set Lock ANSI/BHMA A156.12 F102 Handle set trim
PRODUCT / Entry handle set lock
M15 Entry Handle Set Lock – Interconnected Lock
The M15 Series Entry Handle Set Lock is
designed for residential and light-commercial entrance doors, combining a
classic handleset appearance with enhanced security and convenient operation.
Both the interior and exterior trims feature a long-plate design, creating a
coordinated look on both sides of the door.
Featuring a tubular latch, deadbolt and integrated interlock mechanism, the M15 allows the latch and deadbolt to be released together through a single-motion operation. Durable materials and premium finishes make it suitable for apartments, condominiums, villas and other entrance applications.
- Category
- Handle set
- FUNCTION
- F102 Handle set trim
01 / OVERVIEW
Overview
The M15 Series uses the F102 handle set
trim configuration, with matching long plates on both the interior and exterior
sides. Its dual-latch design combines a tubular latch and deadbolt to provide
layered security for everyday entry applications.
The integrated interlock mechanism allows
the latch and deadbolt to be released simultaneously, offering convenient
egress and smooth operation. Available in stainless steel and brass
constructions, the series accommodates different durability and design
requirements.
Designed to meet ANSI/BHMA A156.12 Grade 1
performance requirements and tested for over 800,000 cycles, the M15 is built
for reliable use. UL/cUL 10C-listed configurations are available for 3-hour
fire-rated door assemblies, subject to the applicable listing and assembly
requirements.
Application
- Residential entrance doors
- Apartments and condominiums
- Multi-family housing
- Churches
- Hospitality projects
- Villas and private residences
- Light-commercial buildings
02 / FEATURE
Feature
Matching Escutcheon Trim Design
Both interior and exterior trims are escutcheon design, creating a coordinated
appearance and a consistent architectural style on both sides of the door.
Dual-Latch Locking System
Combines a tubular latch and deadbolt to provide layered security for
residential and light-commercial entrances.
Single-Motion Unlocking
The integrated interlock mechanism allows the latch and deadbolt to be released
simultaneously, providing convenient operation and efficient access.
ANSI/BHMA Grade 1 Performance
Designed to meet ANSI/BHMA A156.12 Grade 1 requirements for function, strength
and security, with testing exceeding 400,000 cycles.
Premium Material Options
Available in stainless steel and brass constructions to meet different project
requirements for durability, corrosion resistance and appearance.
Durable, Corrosion-Resistant Finishes
Premium finishes help maintain appearance and support long-term performance in
frequently used entrance applications.
Classic Architectural Styling
Combines traditional handleset proportions with refined details and
contemporary finish options to complement a variety of door styles.
UL/cUL Fire-Rated Options
Listed configurations are available for 3-hour fire-rated door assemblies,
subject to the applicable certification and assembly requirements.
Residential and Light-Commercial
Versatility
Suitable for entrance doors in homes, apartments, condominiums, hospitality
projects and light-commercial buildings.
03 / FUNCTION
Function
| Picture | Model no. | ANSI no. | Function | Description | Lever | Cylinder | Thumb turn | Emergency turn |
|---|---|---|---|---|---|---|---|---|
|
M15 | F102 | Handle set trim | Thumbpiece on outside and lever on inside retracts latch; Rotating turn from inside or key from outside extends dead bolt to locked position; Both dead bolt and latch bolt are retracted to unlocked position by operating inside lever. |
✓ | ✓ | ✓ |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | *Standard backset 2-3/4" (70mm) |
| Outside handleset | SS303/Brass/Zinc alloy, 17-1/2"×2-45/64" (444.5×68.5mm) |
| Projection | 2-31/64" (63.3mm) |
| Inside escutcheon | SS303/Brass/Zinc alloy, 9-17/32"×2-45/64" (242×68.5mm) |
| Latch bolt | Square corner latch bolt, Brass, chrome plated, field reversible |
| Latch throw | A156.36 Grade 1, 1/2" (12.7mm) projection |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1” |
| Face plate | SS304, 2-1/4"×1-1/8"×1/16" |
| Inside locking type | Thumb turn SS303 cast |
| Outside thumb piece | SS303/Brass/Zinc alloy |
| Cylinder | A16 Φ1-1/8" cylinder, C28000 brass, 5 pin, 3 keys, satin nickel face |
| Latch bolt strike | SS304, 2-3/4" curved lip T-strike |
| Dead bolt strike | SS304, 2-3/4" ×1-1/8"×1/16" (70×29×2mm) deadbolt strike |
| Strike box | PA66 |
| Handing | Non-handed |
| Finishes | US32D/US32/US4/US19/US10B |
| ANSI/BHMA | ANSI/BHMA A156.12 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Handle Set Trim details
| Trim type | Handle set |
| Material | SS303/Brass/Zinc alloy |
| Thickness | 3/32" (2.5mm) |
| Width | 2-45/64" (68.5mm) |
| Height | 17-1/2" (444.5mm) |
| Projection | 2-31/64" (63.3mm) |
Lever details
Cylinder details
A11
Cylinder for outside trim
5 pin & 3 keys, brass body, satin nickel cylinder face
Latch bolt strike details
ST-02
2-3/4" (70mm) curved lip “T” strike SS304.
1-1/4" (32mm) curved lip from center of screw holes to end of lip.
Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA66
Dead bolt strike details
ST-03 *Standard
4-7/8" (124mm) ANSI curved lip strike SS304.
2-3/4" ×1-1/8"×1/16" (70×29×2mm) strike SS304
Strike box Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA6
