Bathroom indicator lock
M54 LED Indicator Lock Bathroom Lock
PRODUCT / Bathroom indicator lock

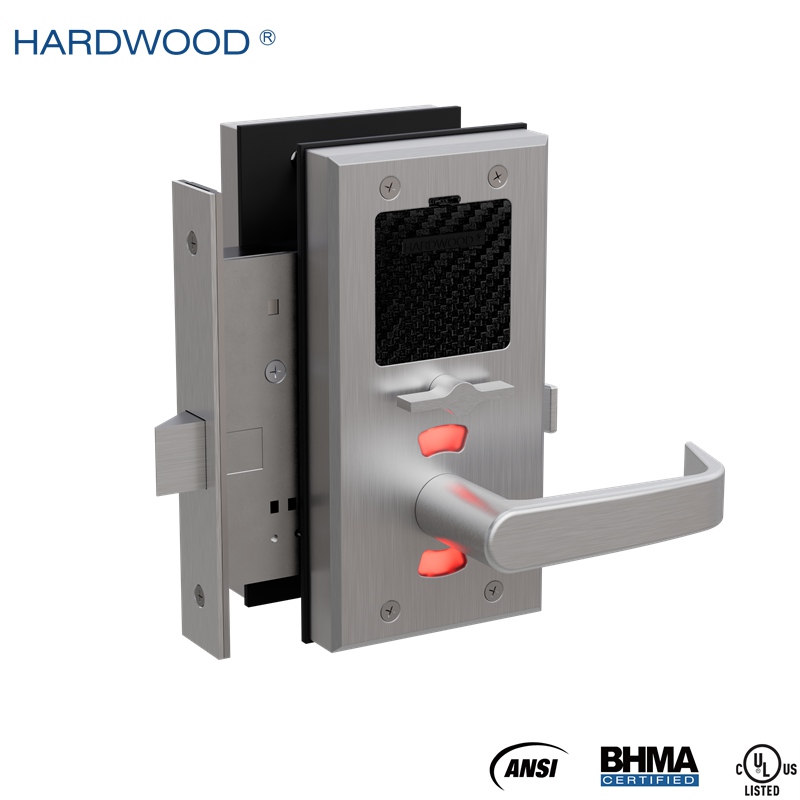

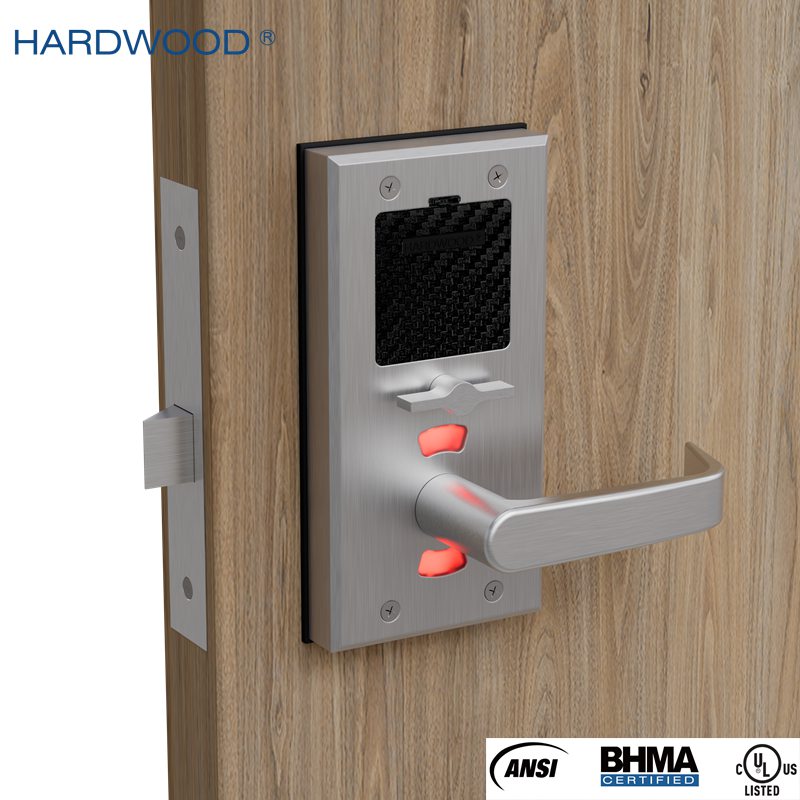

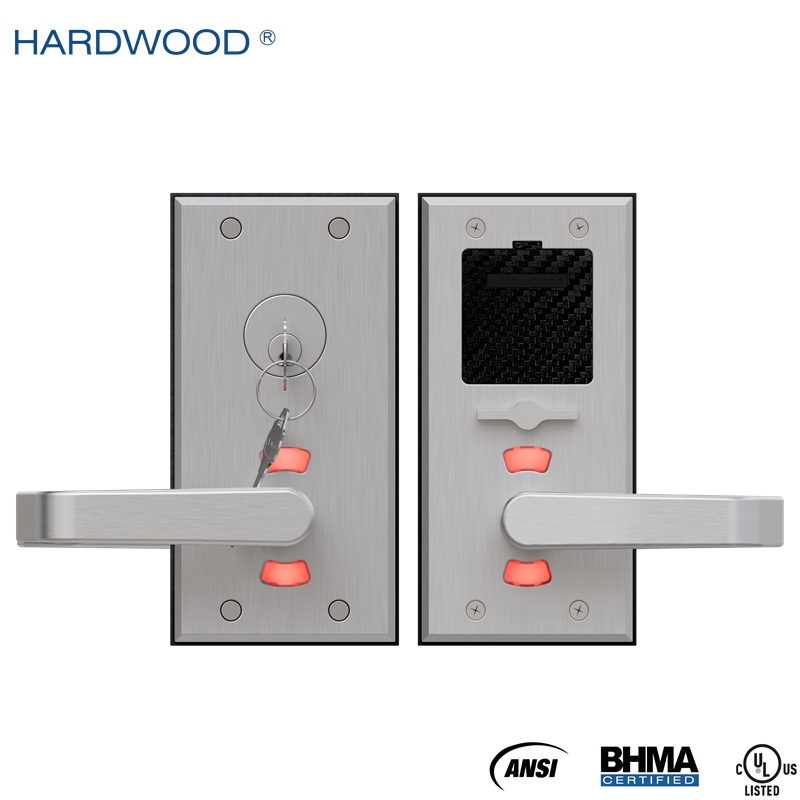

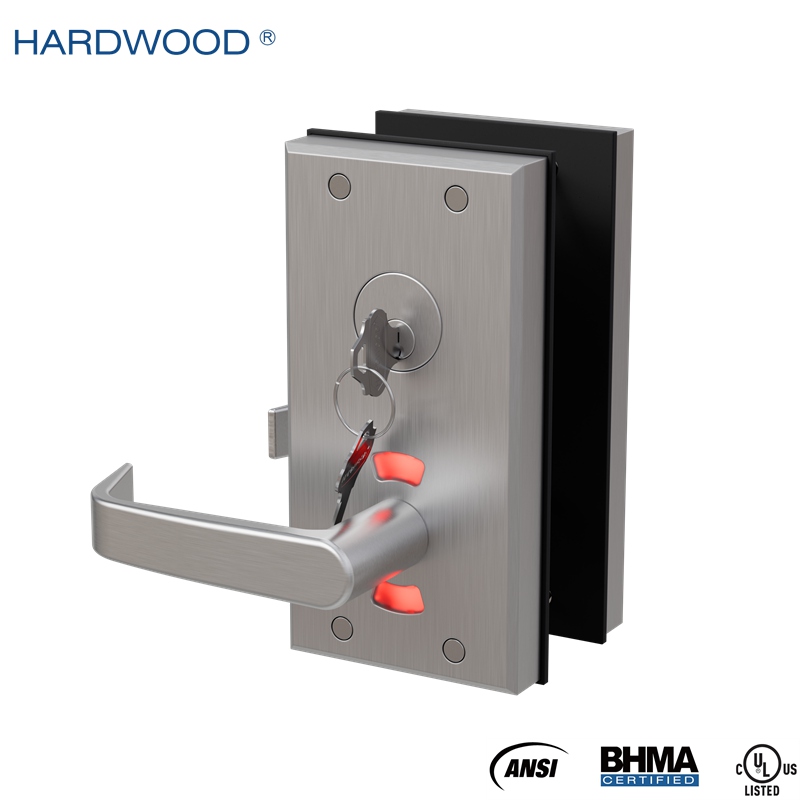

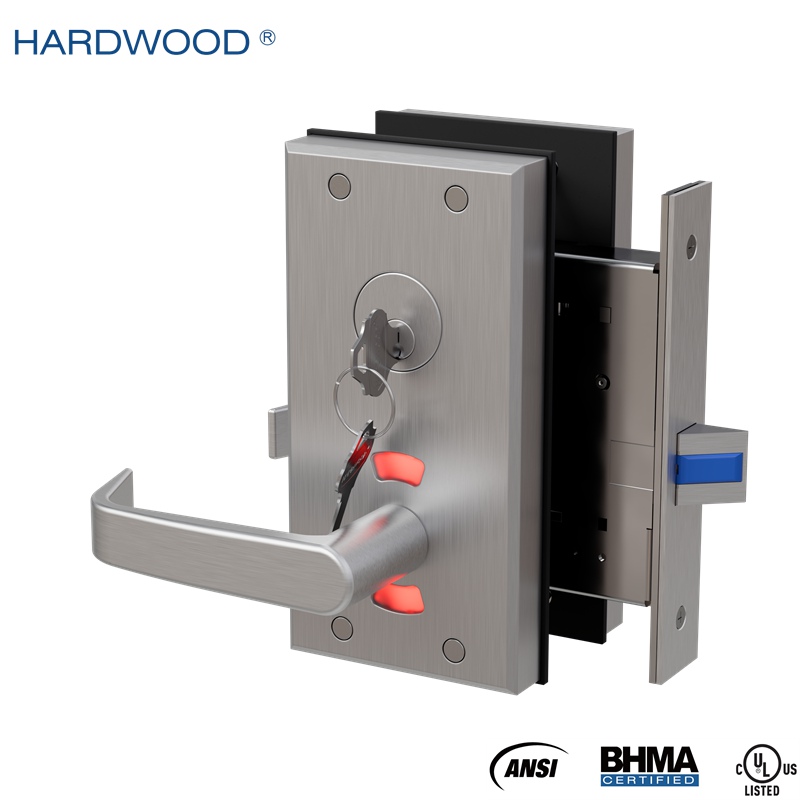

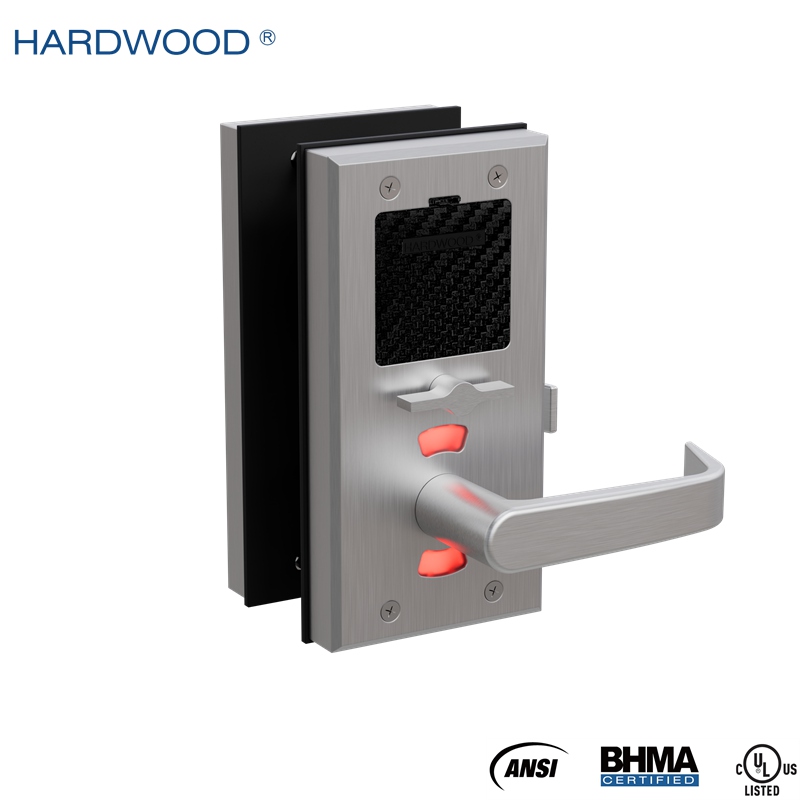

M54 LED Indicator Lock – Bathroom Lock
The M54 LED Indicator Lock is designed for
bathrooms, public restrooms and other privacy-sensitive spaces in commercial
buildings. Its LED indicator trim provides a clear visual indication of door
status, helping users identify whether the room is in use and reducing
unnecessary access attempts.
Built for frequent use, the M54 combines a durable mortise lock body with stainless steel components and a reinforced escutcheon design. It is suitable for demanding environments where dependable operation, user convenience and long service life are essential.
- Category
- Indicator lock
- FUNCTION
- Bathroom Lock
01 / OVERVIEW
Overview
The M54 combines an LED indicator trim with
a compact mortise lock body for bathroom and privacy applications. Its highly
visible LED status indication makes room status easier to identify from a
distance, improving convenience in busy public facilities.
The lock is designed in accordance with
ANSI/BHMA A156.13 performance requirements and exceeds ANSI/BHMA Grade 1 cycle
performance requirements, with testing exceeding 1,000,000 cycles. Stainless
steel internal components and housing support durability and corrosion
resistance, while four through-bolts secure the escutcheon trim to help resist
forced damage.
Application
- Commercial and public washrooms
- Office buildings
- Airports and transportation facilities
- Shopping centers and retail facilities
- Educational facilities
- Healthcare facilities
- Government buildings
- Hotels and hospitality facilities
- Mother's rooms
- Quiet rooms
- Dressing rooms
02 / FEATURE
Feature
Features & Advantages
Clear LED Occupancy Indication
Provides highly visible LED status indication, allowing users to identify the
indicated door status from a distance and reducing unnecessary attempts to
enter an occupied room.
Convenient Privacy Control
Designed for bathroom and restroom applications, combining controlled door
operation with a clear visual status indicator to improve user convenience and
privacy.
ANSI/BHMA A156.13 Performance
Designed to meet ANSI/BHMA A156.13 requirements and tested beyond 1,000,000
cycles, exceeding the ANSI/BHMA Grade 1 cycle performance requirement for
demanding, high-frequency applications.
Compact Mortise Lock Design
Combines LED indicator trim with a compact mortise lock body, providing a
practical solution for commercial privacy doors.
Corrosion-Resistant Stainless Steel
Construction
Stainless steel internal components and housing help resist corrosion and
support long-term durability in frequently used facilities.
Reinforced Escutcheon Attachment
The escutcheon trim on both sides is secured by four through-bolts, helping
maintain a firm attachment and resist damage from forced impact or tampering.
Built for High-Traffic Facilities
Designed for frequent daily operation in commercial and public environments
where reliable performance and easy-to-identify door status are important.
03 / FUNCTION
Function
| Picture | Model no. | Function | Description | Lever | Cylinder | Thumb turn | Emergency turn |
|---|---|---|---|---|---|---|---|
|

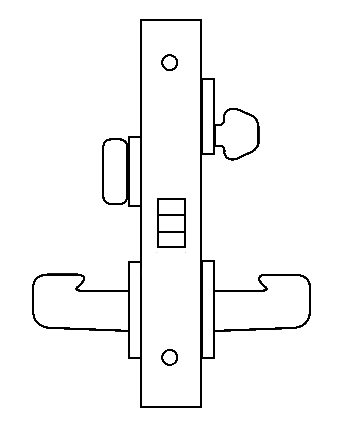

M54 | Intruder Security Lock | Latch bolt operated by lever from either side. Key or thumb turn lock or unlock both levers. |
✓ | ✓ | ✓ |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | *Standard backset 2-3/4" (70mm) |
| CTC | Cylinder to lever distance 3-7/8" (98mm) |
| Lock case | SS304, thickness 3/32" |
| Latch bolt | SS303, A156.13 Grade 1 latch bolt projection 3/4", 2 pcs anti-fraction |
| Hub | AISI4140 42CrMo steel |
| Face plate | SS304, ANSI/BHMA A156.115 8"×1-1/4"×1/16" (203 ×31.7×2.1mm) |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 4-7/8" ANSI curved lip strike, thickness 5/64" (2mm) |
| Strike box | PA66 |
| Indicator trim | SS304 housing, thickness 1/8" (3mm), LED indicator |
| Handing | Non-handed, Field reversible latch bolt |
| Finishes | US32D/US4/US10B |
| ANSI/BHMA | ANSI/BHMA A156.13 certified Grade 1 |
05 / CONFIGURATION
Configuration

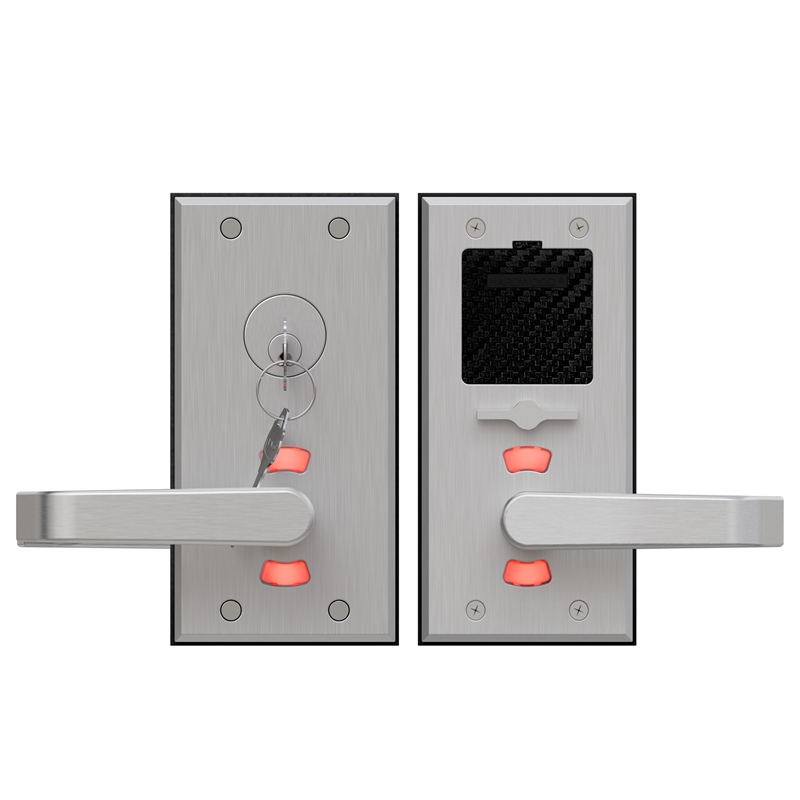

Indicator trim details
| Trim type | Escutcheon trim |
| Material | SS303 cast |
| Thickness | 9/64" (3.6mm) |
| Width | 2-1/16" (52mm) |
| Height | 9-11/16" (246.6mm) |
| Projection | 2-1/2" (63mm) |

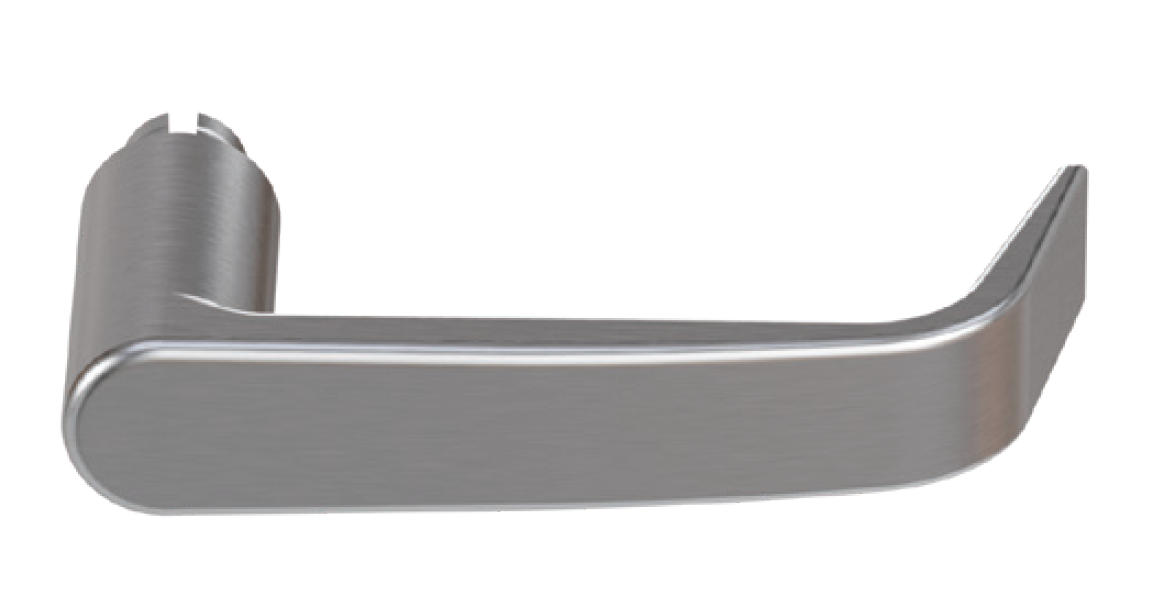

Lever details
Thumbturn details

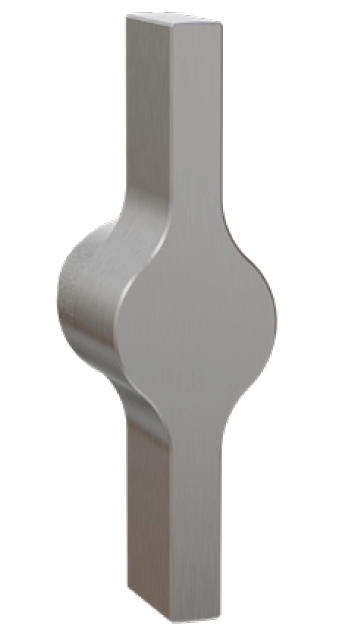

T-thumb turn M30A5
1-3/4"×3/8"(44×10mm)
SS303 cast US32D

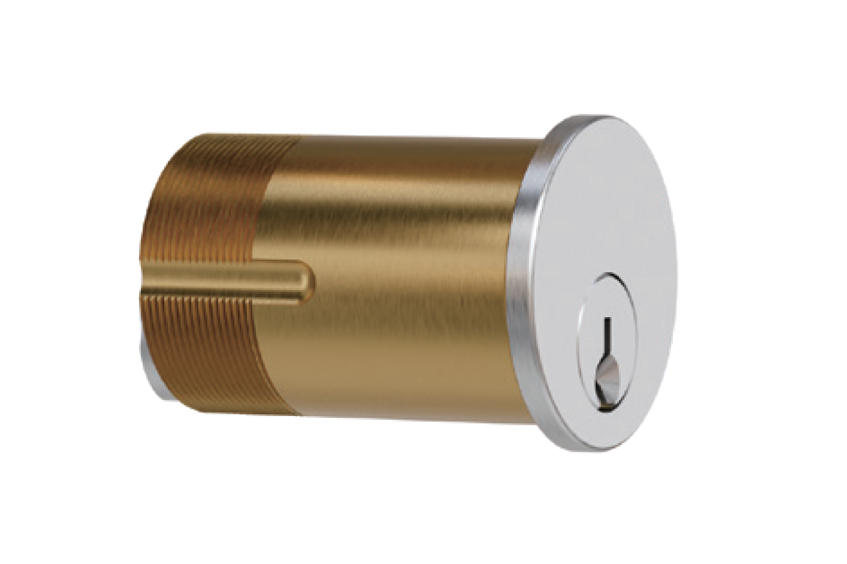

Cylinder details
A13 cylinder
Φ1-1/8"×1-1/2" (Φ29×38.2mm)
C28000 brass body, 6 pins
Satin nickel cylinder face
3 pcs of C26000 brass keys, nickel plated.
Strike details

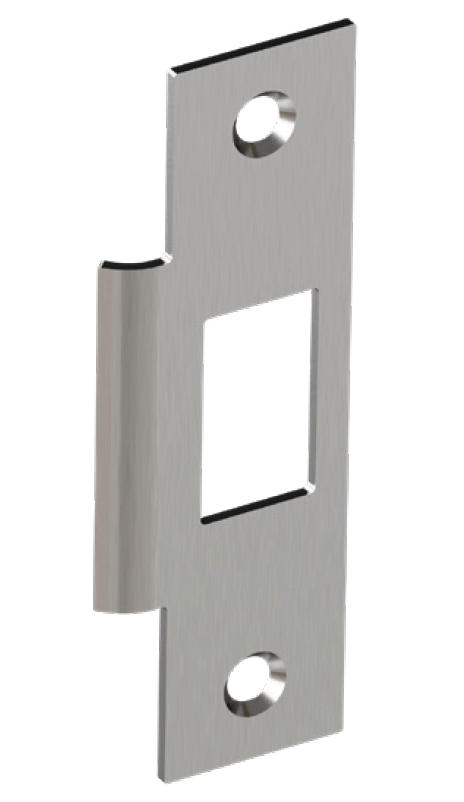

ST-09 Strike
4-7/8" (124mm) ANSI curved lip strike SS304.
1-3/64" (26.5mm) curved lip from center of screw holes to end of lip
Thickness 5/64" (2mm)
