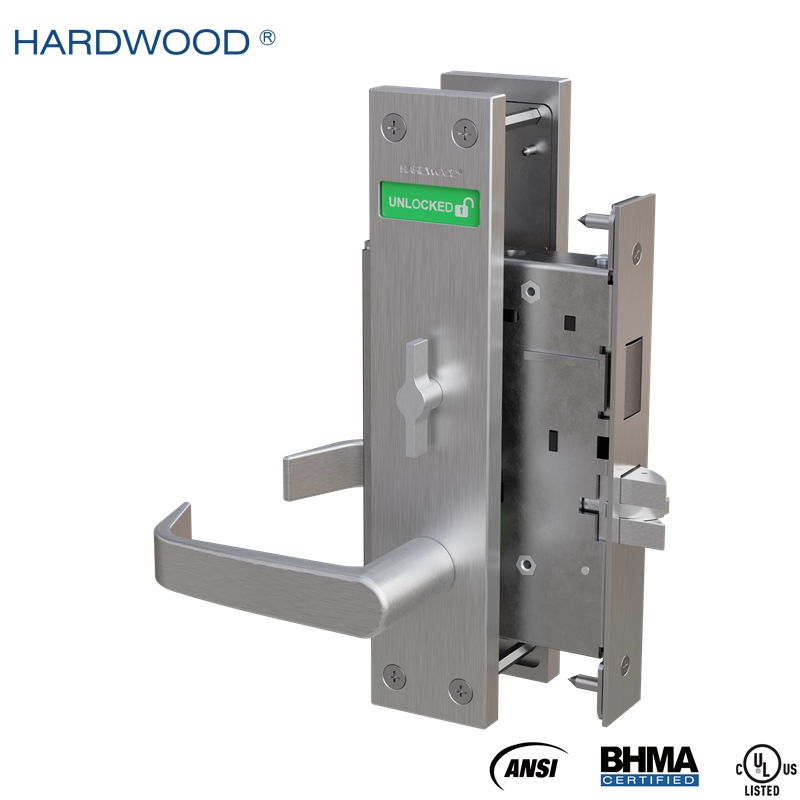

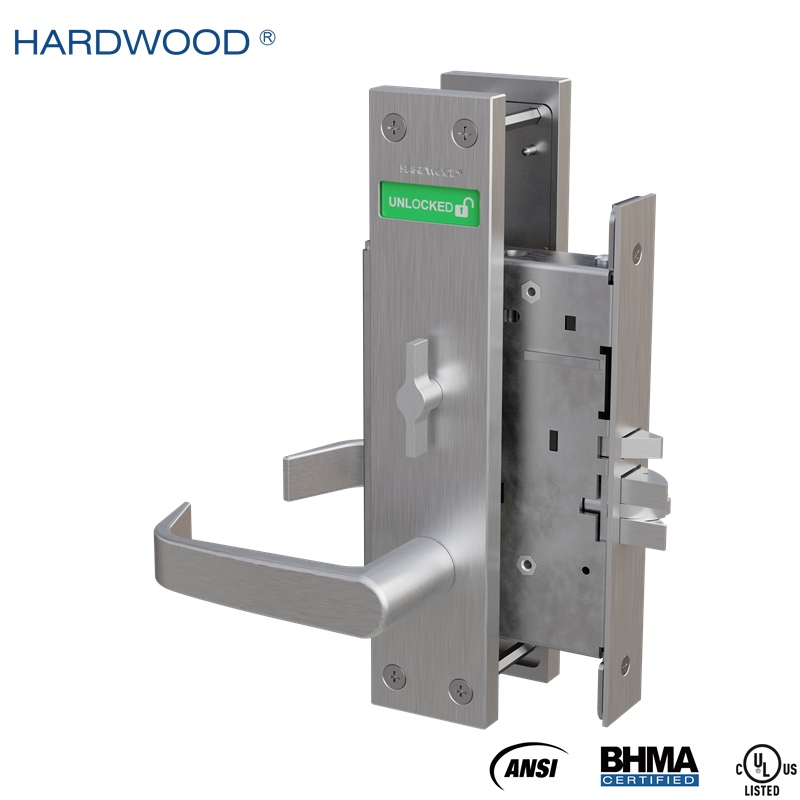

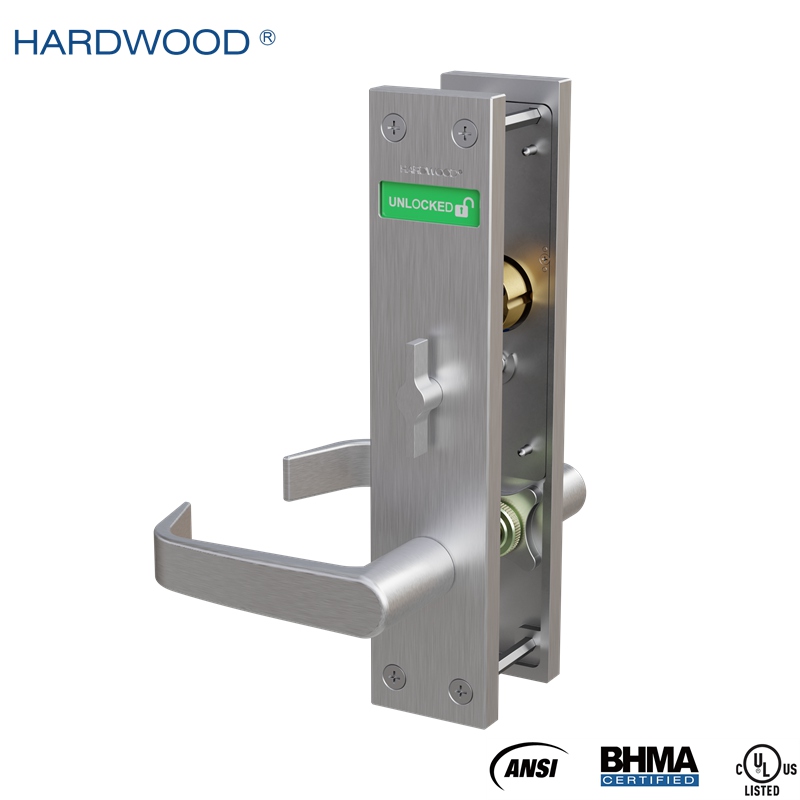

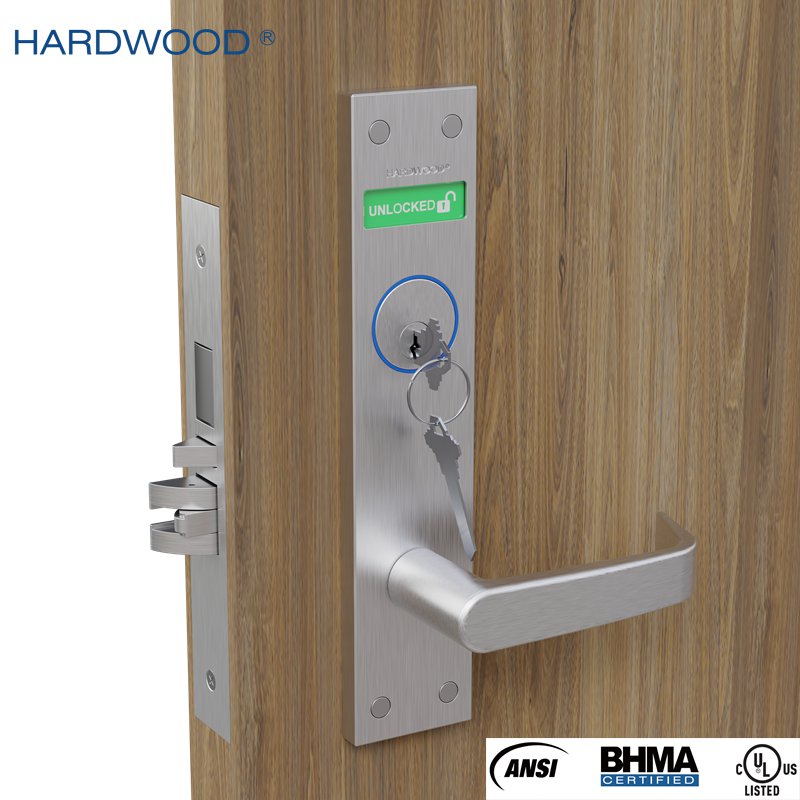

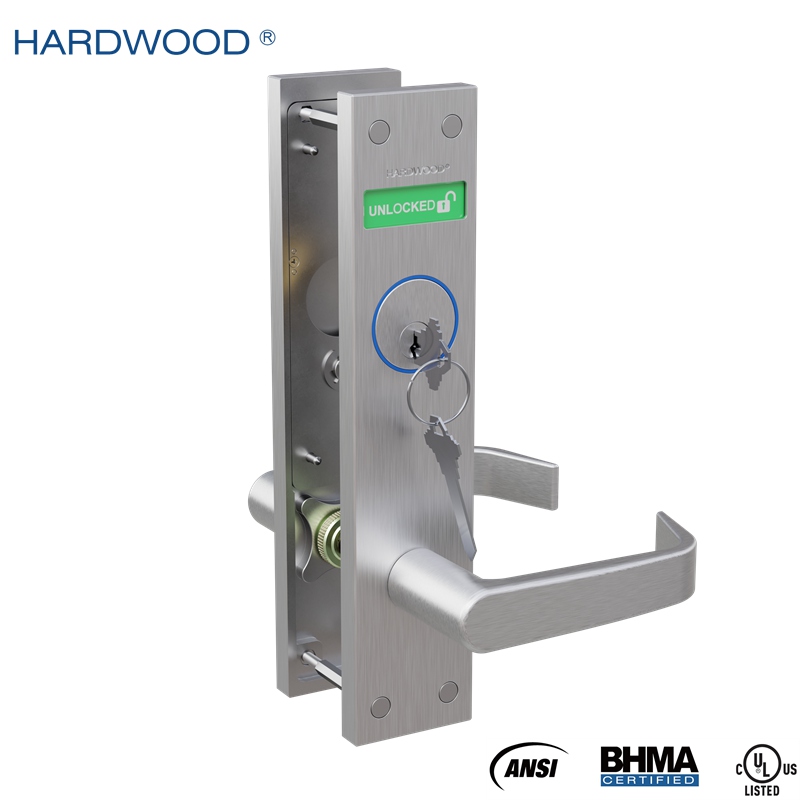

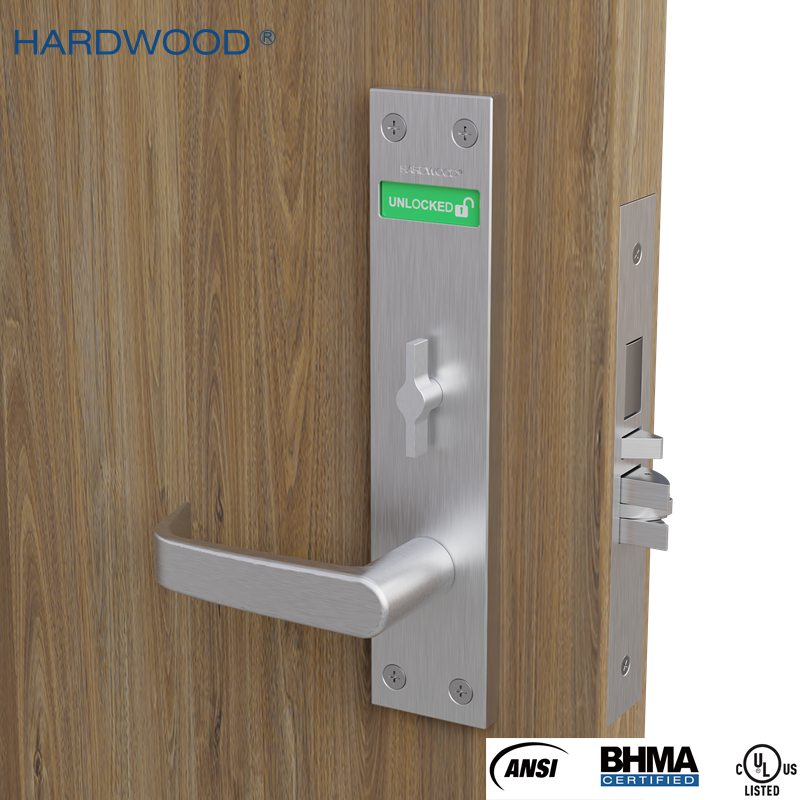

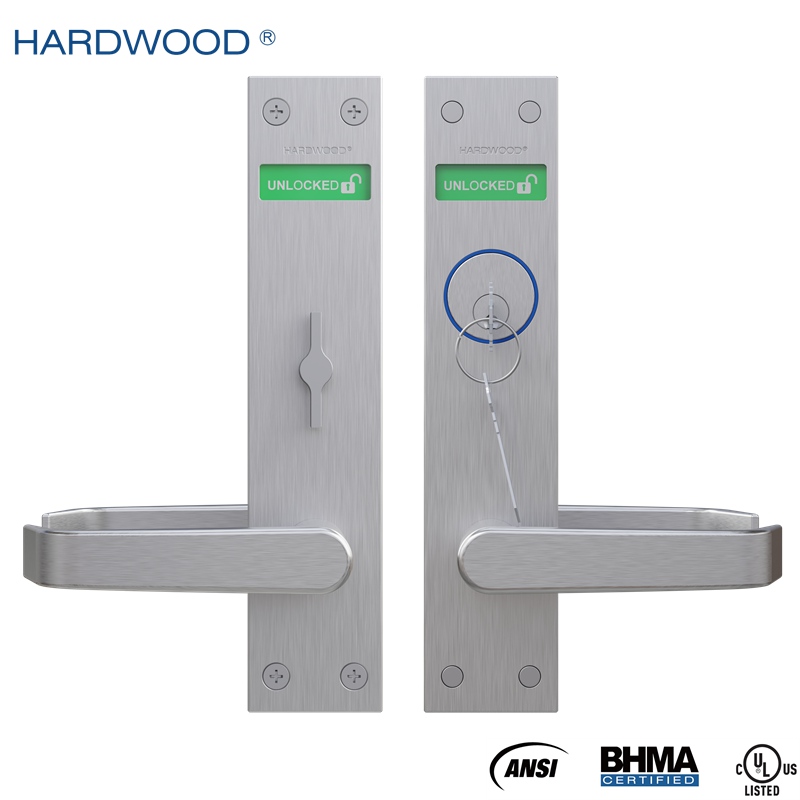

Escutcheon trim indicator lock

Escutcheon Indicator Trim:

Provides clear visual confirmation of the door's locking status, allowing users to identify the indicated status at a glance.

Occupied/Vacant Status Indication:

Helps users determine whether a room is occupied or available without needing to knock, improving convenience in privacy-sensitive areas.

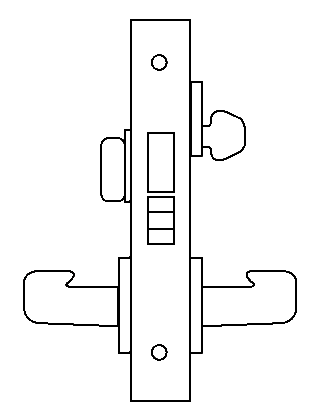

Multifunction Mortise Lock Body:

Built on the DD Series platform, with four functions integrated into a single lock case to accommodate different application requirements.

Grade 1 Performance:

Designed to meet ANSI/BHMA A156.13 requirements and exceed Grade 1 cycle performance requirements for demanding, high-traffic environments.

Stainless Steel Construction:

Stainless steel lock case and internal components provide strength, corrosion resistance, and long-term durability.

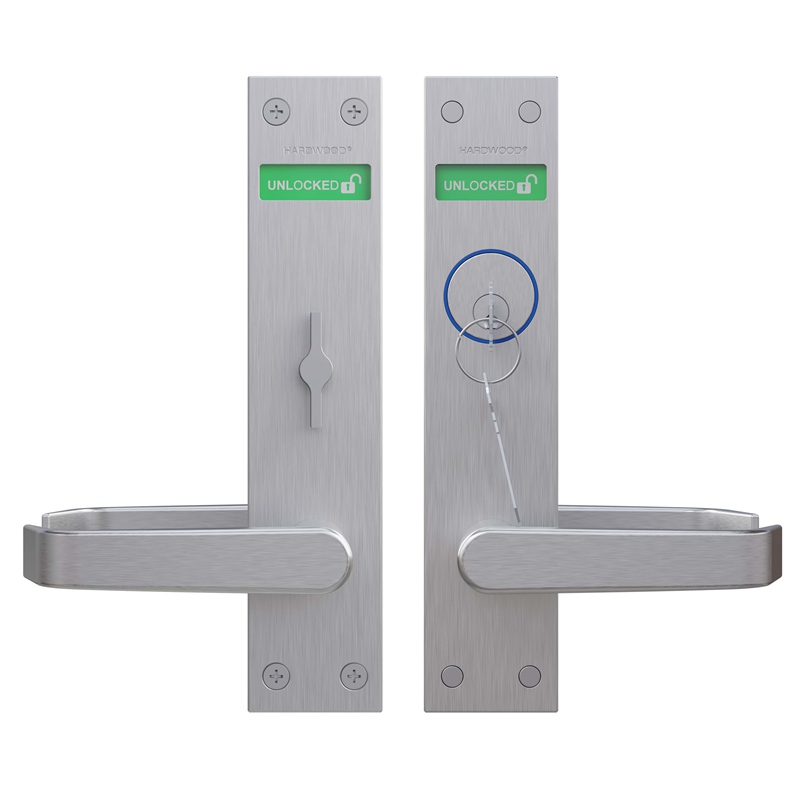

Reinforced Indicator Trim:

Four through-bolts connect and secure the two sides of the indicator trim, helping resist forced damage and improve mounting stability.

Quick-Reversible Handing:

Allows the handing to be reversed without disassembling the lock case, simplifying installation and reducing adjustment time.

Flexible Door Compatibility:

Suitable for compatible wood and metal doors across multiple door thicknesses, subject to the specified lock configuration and door preparation.

Multiple Indicator Wording Options:

Available wording options allow the indicator to be tailored to different applications and user requirements.

Privacy and Controlled-Access Applications:

Suitable for restrooms, dressing rooms, mother's rooms, quiet rooms, and other spaces requiring clear visual status indication.

Fire-Rated Applications:

UL-listed configurations are available for up to 3-hour fire-rated door assemblies, subject to the applicable listing and installation requirements.

Commercial-Grade Durability:

Designed for reliable operation in high-use commercial, healthcare, educational, and institutional environments.
