M60 Electronic Mortise Lock ANSI/BHMA A156.13 F20 Apartment Corridor Door Lock

PRODUCT / Sectional electronic lock

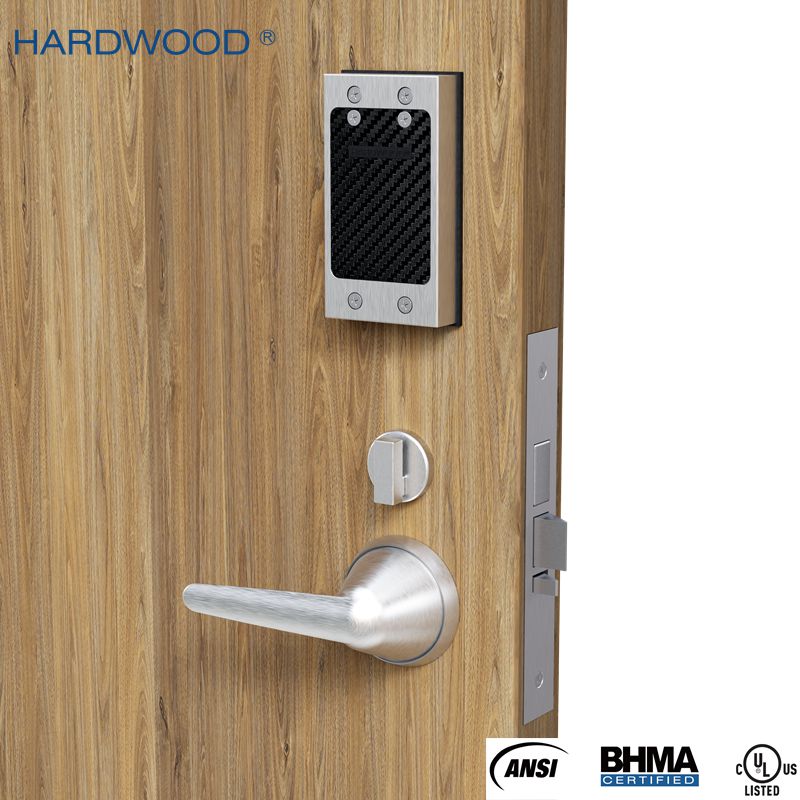

M60 Electronic Mortise Lock – Sectional Electronic Lock

The M60 Electronic Mortise Lock combines intelligent electronic access control with the proven durability of the DG Series mortise lock body. Its split-type design separates the electronic reader panel from the internal locking mechanism, creating a clean architectural appearance while housing the operating components within the lock body.

Supporting multiple access methods, including fingerprint, PIN code, RFID credentials, and mechanical key override, the M60 offers flexible access management for modern buildings. Its stainless steel construction, tempered glass touch screen, and reinforced electronic panel are designed for demanding daily use.

Category: Electronic Lock
FUNCTION: ANSI BHMA A156.13 F20 Apartment Corridor Door Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

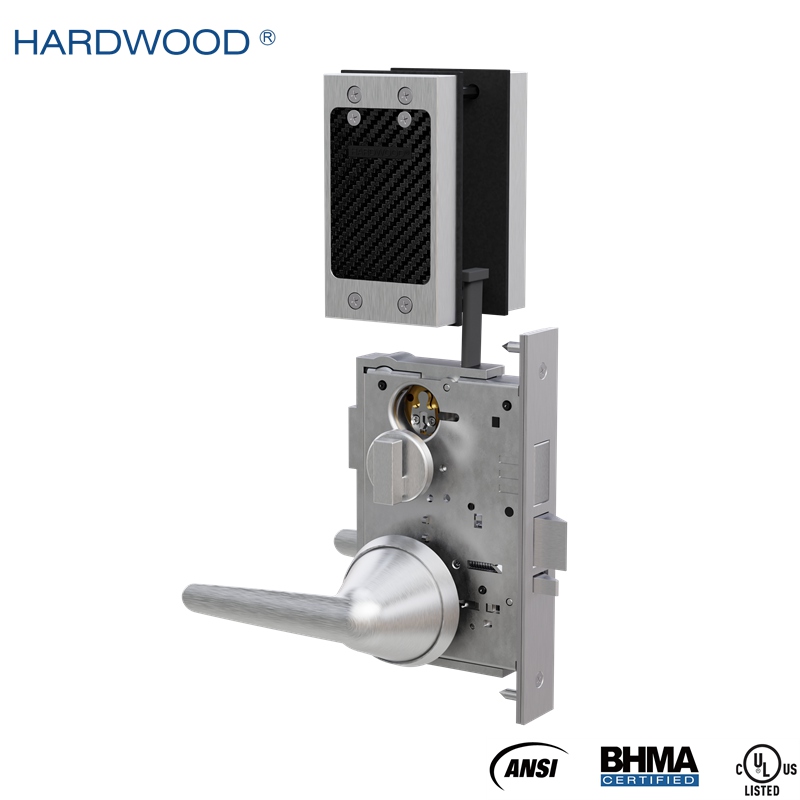

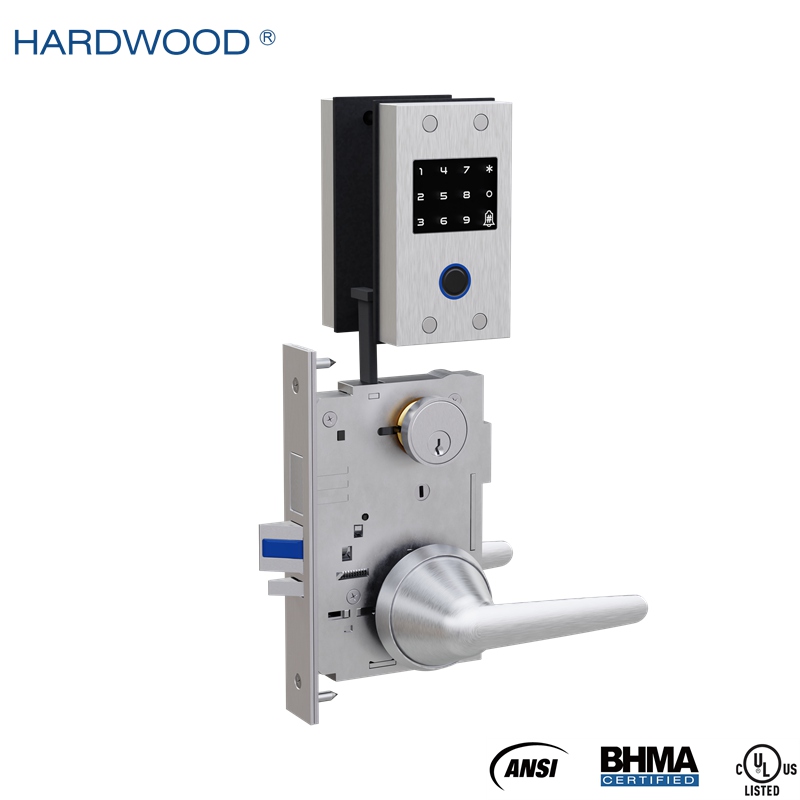

The M60 features a separated electronic reader panel and an internal locking mechanism integrated with the DG Series mortise lock body. This split-type architecture separates the user interface from the internal execution components, supporting a streamlined door appearance and a compact installation arrangement.

Designed for commercial-grade performance, the M60 is developed to meet ANSI/BHMA A156.13 requirements for mortise locks and ANSI/BHMA A156.25 requirements for electrified locking devices. Its multiple credential options support flexible access management, while four through-bolts reinforce the electronic panel for enhanced security and resistance to tampering.

With reversible handing, stainless steel construction, and compatibility with metal or wood doors, the M60 is suitable for a wide range of access-controlled openings in commercial and residential buildings.

Application

Office buildings
Apartments and multifamily housing
Hotels and hospitality projects
Mixed-use developments
Condominium entrances
Student housing
Senior living facilities
Healthcare facilities
Access-controlled interior openings
Retrofit and new construction projects
Metal and wood doors

02 / FEATURE

Feature

Split-Type Electronic Architecture:

Separated electronic reader panel and internal locking mechanism provide a streamlined design while housing the operating components within the mortise lock body.

Multiple Access Methods:

Supports fingerprint, PIN code, RFID credentials, and mechanical key override for flexible entry options.

Heavy-Duty Mortise Lock Body:

Combines electronic access control with the established mechanical design of the DG Series mortise lock body.

Standards Compliance:

Designed to meet ANSI/BHMA A156.13 requirements for mortise locks and ANSI/BHMA A156.25 requirements for electrified locking devices.

Reinforced Electronic Panel:

Four through-bolts secure the electronic panel to improve mounting stability and resistance to vandalism.

Stainless Steel Construction:

Provides strength, corrosion resistance, and long-term durability for demanding commercial applications.

Tempered Glass Touch Screen:

Provides a smooth, modern user interface with a clean architectural appearance.

Concealed Internal Mechanism:

Keeps the operating components within the lock body, supporting a streamlined exterior design.

Simplified Installation and Maintenance:

The separated electronic and mechanical structure supports installation and servicing flexibility.

Commercial-Grade Durability:

Designed for reliable operation in high-traffic commercial and residential environments.

Smooth Lever Operation:

Provides convenient door operation alongside electronic access control.

Reversible Handing:

Accommodates different door handing requirements for greater installation flexibility.

Metal and Wood Door Compatibility:

Suitable for compatible metal and wood door applications, subject to door preparation and installation requirements.

Modern Architectural Design:

Combines electronic functionality with a clean appearance suited to contemporary commercial and residential interiors.

03 / FUNCTION

Function

Picture	Model no.	ANSI no.	Function	Description	Lever	Cylinder	Thumb turn	Emergency turn
	M60	F20	Apartment Corridor Door Lock	Lever latch both sides; outside lever disable by non-key means. Deadbolt by key outside or turn inside; key operates both bolts. Inside lever retracts both; outside stays locked. Latch deadlocks when disabled or deadbolt thrown; re-enabled when deadbolt is retracted.	✓	✓	✓

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	*Standard backset 2-3/4" (70mm)
CTC	Cylinder to lever distance 3-7/8" (98mm)
Function	ANSI F20
Lock case	SS304, thickness 3/32"
Latch bolt	SS303, A156.13 Grade 1 latch bolt projection 3/4"
Auxiliary latch bolt	SS304, 3/8" projection, non-handed
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1”
Face plate	SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm)
Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face
Strike	SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm)
Strike box	PA66
Motor	Mabuchi brand

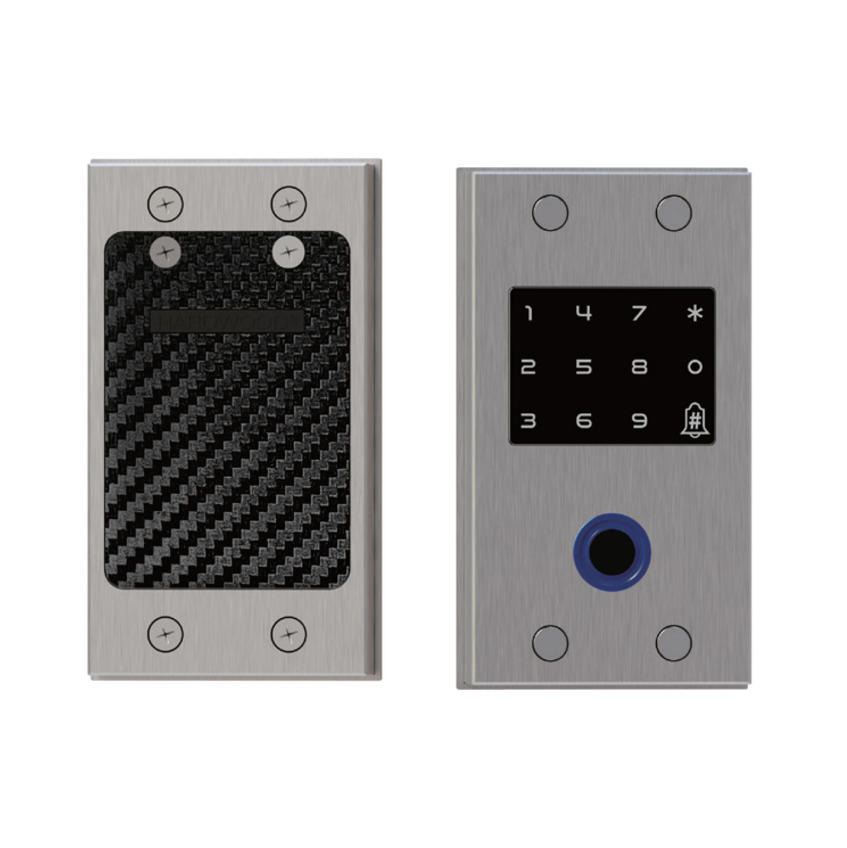

Electronic panel	SS303 cast sectional keypad
Touch screen	Tempered glass
Battery	4 AA batteries for 2 years normal life
Emergency power	USB interface
Access methods	Finger print, NFC, PIN code, key
Handing	Field reversible latch bolt
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.13 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
