C2029A Dead Lock – Double Cylinder Classroom Lock

The C2029A Double Cylinder Classroom Lock is part of the HARDWOOD C20 Series of compact auxiliary mortise locks. It features key cylinders on both sides, allowing the deadbolt to be operated with a key from either side of the door. An additional interior thumb turn allows the deadbolt to be retracted from inside but cannot extend it.

This operating arrangement provides flexible key operation while limiting the function of the interior thumb turn. With its compact lock case and durable stainless steel construction, the C2029A is suitable for classroom and other institutional applications requiring controlled locking.

Category: Auxiliary Lock
FUNCTION: ANSI BHMA A156.36 Classroom Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The C20 Series features a compact mortise lock case with a deadbolt mechanism, providing reliable locking in a space-saving design. The C2029A combines double cylinder operation with a restricted-function interior thumb turn.

Both key cylinders can operate the deadbolt, allowing it to be extended or retracted by key from either side. The interior thumb turn provides an additional means of retracting the deadbolt but cannot project it. This distinguishes the C2029A from conventional double cylinder deadlocks with a standard interior thumb turn.

Designed for applications requiring controlled locking and flexible key operation, the C2029A provides a compact auxiliary locking solution for classroom and institutional doors. The series is designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.

02 / FEATURE

Feature

Compact Mortise Design:

Small lock case provides a space-saving locking solution for doors with limited installation space.

Double Cylinder Operation:

Key cylinders on both sides allow the deadbolt to be extended or retracted using a key from either side of the door.

Restricted Interior Thumb Turn:

The interior thumb turn can retract the deadbolt but cannot extend it, providing an additional means of unlocking without projecting the deadbolt.

Controlled Locking Function:

Combines key-operated deadbolt control from both sides with a restricted-function interior thumb turn.

Deadbolt Security:

Solid deadbolt engagement provides positive locking without relying on a spring latch.

Durable Construction:

Constructed entirely of stainless steel for strength, corrosion resistance, and long-term durability under repeated use.

Space-Efficient Installation:

Compact dimensions make it suitable for door designs where a full-size lock case is not required.

Classroom and Institutional Applications:

Suitable for classroom doors, educational facilities, commercial buildings, and other institutional areas requiring controlled locking.

Standards Compliance:

Designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.

Flexible Door Integration:

Suitable for integration with compatible door hardware, subject to door preparation and installation requirements.

03 / FUNCTION

Function

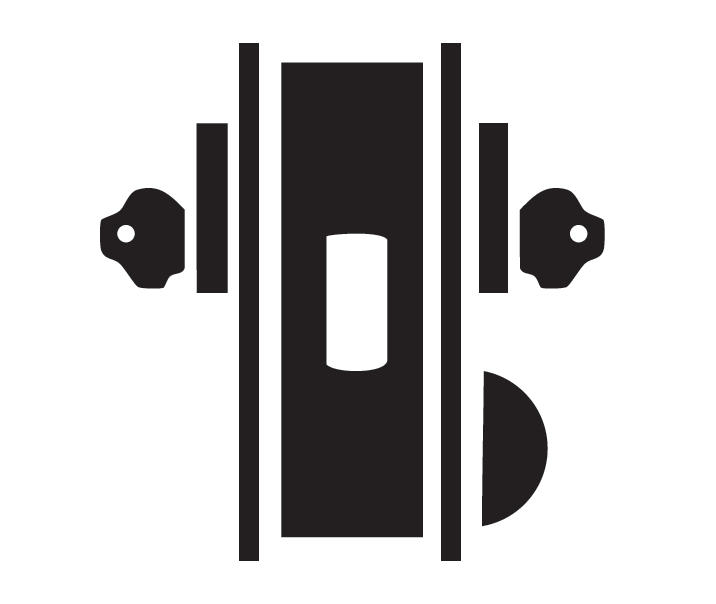

Picture	Model no.	ANSI No.	Function	Description	Outside trim	Inside trim
	C2029A	/	Classroom lock	Key from either side operates deadbolt. Inside thumb turn retracts deadbolt but cannot project it	Cylinder	Cylinder; Thumb turn

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
Lock case	SS304, thickness 3/32" (2.5mm)
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1"
Hub	AISI4140 42CrMo steel
Other components	Stainless steel/AISI4140/AISI1075
Face plate	SS304, thickness 3/64" or 5/64"
Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face
Strike	SS304, 3-1/2" strike, available with regular and heavy duty options
Handing	Non-Handed
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.36 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
