C2000 Dead Lock – Single Turn Passage Lock

The C2000 Passage Lock is part of the HARDWOOD C20 Series of compact auxiliary mortise locks. It features a turn knob on one side and blank trim on the opposite side, providing a simple and compact locking arrangement.

Its small lock case makes it suitable for applications where installation space is limited and straightforward deadbolt operation is required. Constructed entirely of stainless steel, the C2000 is designed for durability and reliable performance in commercial and residential settings.

Category: Auxiliary Lock
FUNCTION: ANSI BHMA A156.36 Passage Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The C20 Series features a compact mortise lock case with a deadbolt mechanism, providing a space-saving solution for doors requiring auxiliary locking hardware. The C2000 uses a single turn knob to operate the deadbolt from one side, while the opposite side has no operating trim.

With its compact construction and simple operating configuration, the C2000 is suitable for doors where one-sided deadbolt operation is preferred. The series is designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.

02 / FEATURE

Feature

Compact Mortise Design:

Small lock case provides a space-saving locking solution for doors with limited installation space.

Single Turn Operation:

A turn knob on one side allows manual operation of the deadbolt.

Deadbolt Security:

Solid deadbolt engagement provides positive locking without relying on a spring latch.

Durable Construction:

Constructed entirely of stainless steel for strength, corrosion resistance, and long-term durability under repeated use.

Space-Efficient Installation:

Compact dimensions make it suitable for door designs where a full-size lock case is not required.

Versatile Applications:

Suitable for commercial and residential doors, storage rooms, utility areas, and other applications requiring simple one-sided deadbolt operation.

Standards Compliance:

Designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.

Flexible Door Integration:

Suitable for integration with compatible door hardware, subject to door preparation and installation requirements.

03 / FUNCTION

Function

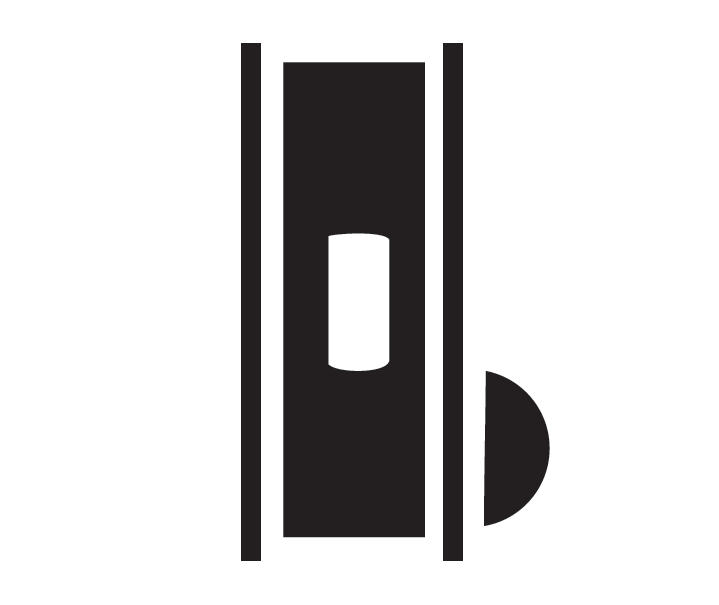

Picture	Model no.	ANSI No.	Function	Description	Outside trim	Inside trim
	C2000	/	Passage lock	Dead bolt operated by thumb turn from one side.	/	Thumb turn

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
Lock case	SS304, thickness 3/32" (2.5mm)
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1"
Hub	AISI4140 42CrMo steel
Other components	Stainless steel/AISI4140/AISI1075
Face plate	SS304, thickness 3/64" or 5/64"
Strike	SS304, 3-1/2" strike, available with regular and heavy duty options
Handing	Non-Handed
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.36 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
