PRODUCTS / Deadbolt Mortise Lock
Deadbolt Mortise Lock
C2018 Dead Lock ANSI/BHMA A156.36 E06081 Storeroom Lock
PRODUCT / Deadbolt Mortise Lock

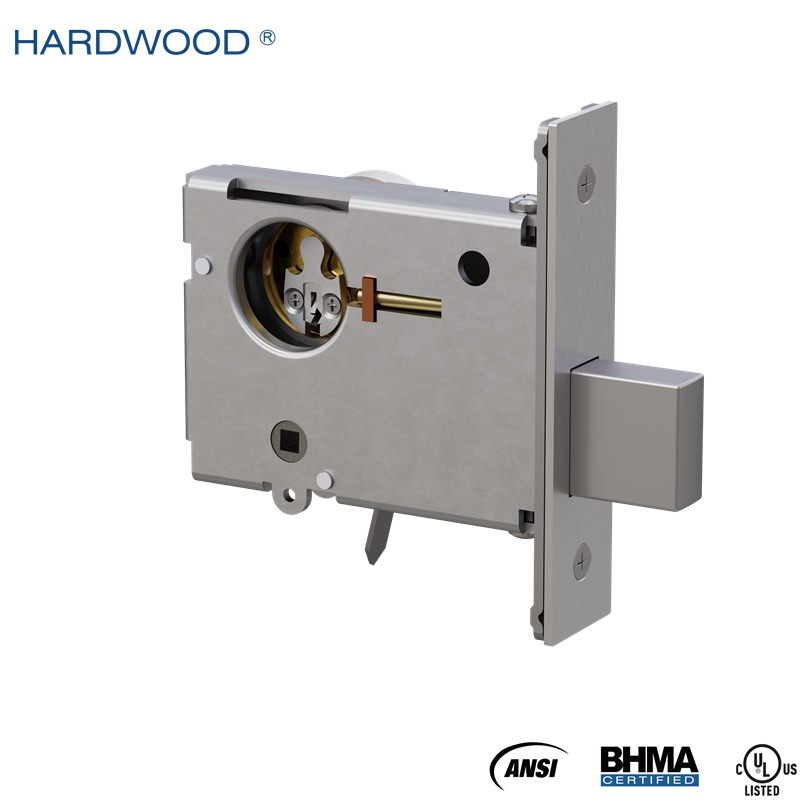

C2018 Dead Lock – Single Cylinder Storeroom Lock
The C2018 Storeroom Lock is part of the
HARDWOOD C20 Series of compact auxiliary mortise locks. It features an exterior
key cylinder and a blank interior, providing key-operated access from the
outside without an interior operating trim.
Its compact lock case makes it suitable for applications where installation space is limited and access must be controlled. Designed for commercial and institutional use, the C2018 provides a practical auxiliary locking solution for storerooms and other restricted-access areas.
- Category
- Auxiliary Lock
- FUNCTION
- ANSI BHMA A156.36 E06081 Storeroom Lock
01 / OVERVIEW
Overview
The C20 Series features a compact mortise
lock case with a deadbolt mechanism, providing dependable locking security in a
space-saving design. The C2018 uses an exterior key cylinder for operation,
while the blank interior trim provides no direct interior operating control.
This configuration is suitable for doors
where key-controlled exterior operation is required and an interior thumb turn
or cylinder is not needed. Its compact construction makes it a practical choice
for commercial storerooms, storage rooms, and other controlled-access
applications.
The series is designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.
02 / FEATURE
Feature
Compact Mortise Design:
Small lock case provides a space-saving
locking solution for doors with limited installation space.
Single Cylinder Operation:
Exterior cylinder allows authorized users
to operate the lock with a key.
Deadbolt Security:
Solid deadbolt engagement provides positive
locking without relying on a spring latch.
Durable Construction:
Constructed entirely of stainless steel for
strength, corrosion resistance, and long-term durability under repeated use.
Space-Efficient Installation:
Compact dimensions make it suitable for
door designs where a full-size lock case is not required.
Storeroom Applications:
Suitable for commercial storerooms, storage
rooms, supply rooms, and other areas requiring controlled access.
Standards Compliance:
Designed in accordance with ANSI/BHMA
A156.36 requirements for auxiliary locks.
Flexible Door Integration:
Suitable for integration with compatible
door hardware, subject to door preparation and installation requirements.
03 / FUNCTION
Function

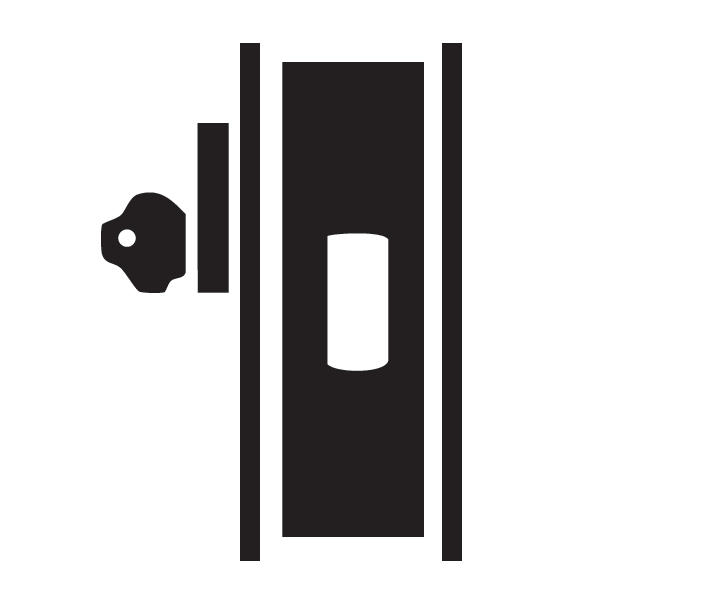

| Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|
|
C2018 | E06081 | Storeroom Lock | Dead bolt operated by key from outside only | Cylinder | / |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" (2.5mm) |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1" |
| Hub | AISI4140 42CrMo steel |
| Other components | Stainless steel/AISI4140/AISI1075 |
| Face plate | SS304, thickness 3/64" or 5/64" |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 3-1/2" strike, available with regular and heavy duty options |
| Handing | Non-Handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Cylinder details
Strike details
ST-05 Regular duty strike
3-1/2"×1-9/64"×5/64" (89×29×2mm)
SS304
ST-06 Heavy duty strike
3-1/2"×1-23/64"×3/16" (89×34.5×4mm)
SS303 cast
