PRODUCTS / Deadbolt Mortise Lock
Deadbolt Mortise Lock
C2016 Dead Lock ANSI/BHMA A156.36 E06061 Jail & Detention Lock
PRODUCT / Deadbolt Mortise Lock
C2016 Dead Lock – Double Cylinder Jail & Detention Lock
The
C2016 Double Cylinder Dead Lock is part of the HARDWOOD C20 Series of compact
auxiliary mortise locks. Featuring key-operated cylinders on both sides, it
provides controlled locking and unlocking from either side of the door.
Its compact lock case makes it suitable for applications where installation space is limited but dependable locking security is essential. Designed for demanding institutional environments, the C2016 is suitable for jail, detention, and other controlled-access applications.
- Category
- Auxiliary Lock
- FUNCTION
- ANSI BHMA A156.36 E06061 Jail & Detention Lock
01 / OVERVIEW
Overview
The
C20 Series features a compact mortise lock case with a deadbolt mechanism,
providing reliable security in a space-saving design. The C2016 double cylinder
configuration allows key operation from both sides, supporting controlled
access in areas where locking authority must be managed.
Its compact construction makes it a practical auxiliary locking solution for correctional facilities and other institutional environments. The series is designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.
02 / FEATURE
Feature
Compact
Mortise Design:
Small
lock case provides a space-saving locking solution for doors with limited
installation space.
Double
Cylinder Operation:
Key-operated
cylinders on both sides allow the lock to be operated from either side of the
door.
Controlled
Access:
Supports
access control in restricted areas where entry and exit must be managed.
Deadbolt
Security:
Solid
deadbolt engagement provides positive locking without relying on a spring
latch.
Durable
Construction:
Constructed
entirely of stainless steel for strength, corrosion resistance, and long-term
durability under repeated use.
Space-Efficient
Installation:
Compact
dimensions make it suitable for door designs where a full-size lock case is not
required.
Jail
and Detention Applications:
Suitable
for correctional facilities, detention centers, and other institutional areas
requiring controlled access.
Standards
Compliance:
Designed
in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.
Flexible
Door Integration:
Suitable
for integration with compatible door hardware, subject to door preparation and
installation requirements.
03 / FUNCTION
Function

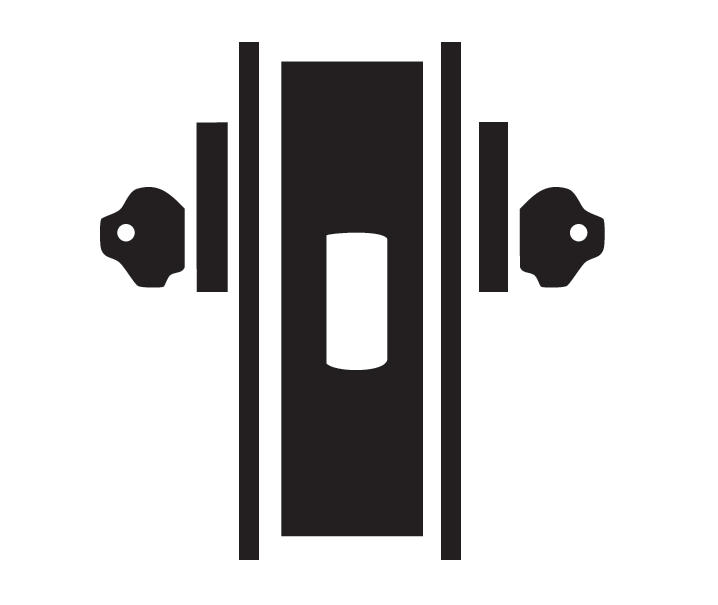

| Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|
|
C2016 | E06061 | Jail & Detention Lock | Deadbolt operated by key from either side | Cylinder | Cylinder |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" (2.5mm) |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1" |
| Hub | AISI4140 42CrMo steel |
| Other components | Stainless steel/AISI4140/AISI1075 |
| Face plate | SS304, thickness 3/64" or 5/64" |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 3-1/2" strike, available with regular and heavy duty options |
| Handing | Non-Handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Cylinder details
Strike details
ST-05 Regular duty strike
3-1/2"×1-9/64"×5/64" (89×29×2mm)
SS304
ST-06 Heavy duty strike
3-1/2"×1-23/64"×3/16" (89×34.5×4mm)
SS303 cast
