C2017A Dead Lock ANSI/BHMA A156.36 E06071 Entry Lock
PRODUCT / Deadbolt lock series
C2017A Dead Lock – Entry Lock with Cylinder Turn
The
C2017A Entry Auxiliary Lock is part of the HARDWOOD C20 Series of compact
auxiliary mortise locks. It features an exterior key cylinder and an interior
turn cylinder, providing key-controlled access from the outside and convenient
locking operation from the inside.
Its compact lock case is suitable for applications where installation space is limited and additional locking security is required. Constructed entirely of stainless steel, the C2017A is designed for durability and reliable operation in commercial and residential entry doors.
- Category
- Auxiliary Lock
- FUNCTION
- ANSI BHMA A156.36 E06071 Entry Lock
01 / OVERVIEW
Overview
The
C20 Series features a compact mortise lock case with a deadbolt mechanism,
providing dependable security in a space-saving design. The C2017A combines
exterior key access with an interior turn cylinder instead of a conventional
thumb turn.
Its
compact construction and stainless steel components make it a practical
solution for doors requiring supplemental locking security. The series is
designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.
02 / FEATURE
Feature
Compact
Mortise Design:
Small
lock case provides a space-saving locking solution for doors with limited
installation space.
Keyed
Entry:
Exterior
cylinder allows authorized users to lock and unlock the door with a key.
Deadbolt
Security:
Solid
deadbolt engagement provides positive locking without relying on a spring
latch.
Durable
Construction:
Constructed
entirely of stainless steel for strength, corrosion resistance, and long-term
durability under repeated use.
Space-Efficient
Installation:
Compact
dimensions make it suitable for door designs where a full-size lock case is not
required.
Versatile
Applications:
Suitable
for commercial and residential entry doors, storage rooms, offices, and other
areas requiring supplemental security.
Standards
Compliance:
Designed
in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.
Flexible
Door Integration:
Suitable
for integration with compatible door hardware, subject to door preparation and
installation requirements.
03 / FUNCTION
Function

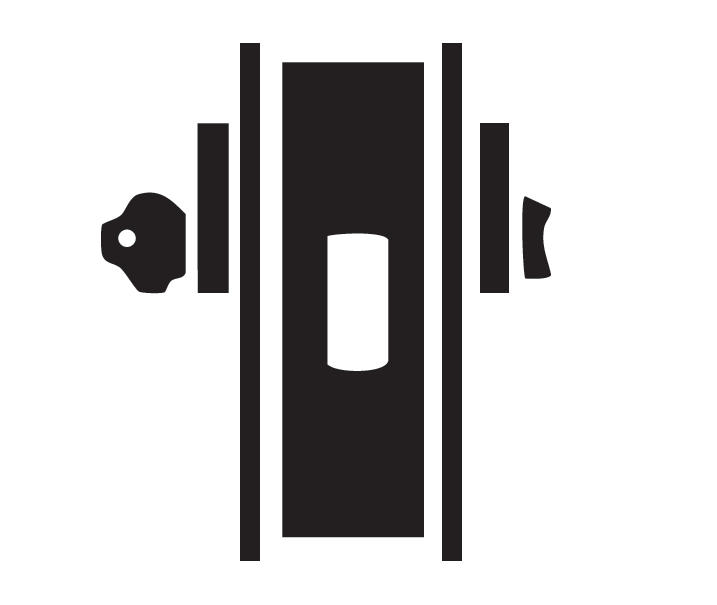

| Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|
|
C2017A | E06071 | Entry lock | Deadbolt thrown or retracted by key outside or cylinder thumb turn inside | Cylinder | Cylinder Turn |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" (2.5mm) |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1" |
| Hub | AISI4140 42CrMo steel |
| Other components | Stainless steel/AISI4140/AISI1075 |
| Face plate | SS304, thickness 3/64" or 5/64" |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 3-1/2" strike, available with regular and heavy duty options |
| Handing | Non-Handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Cylinder details

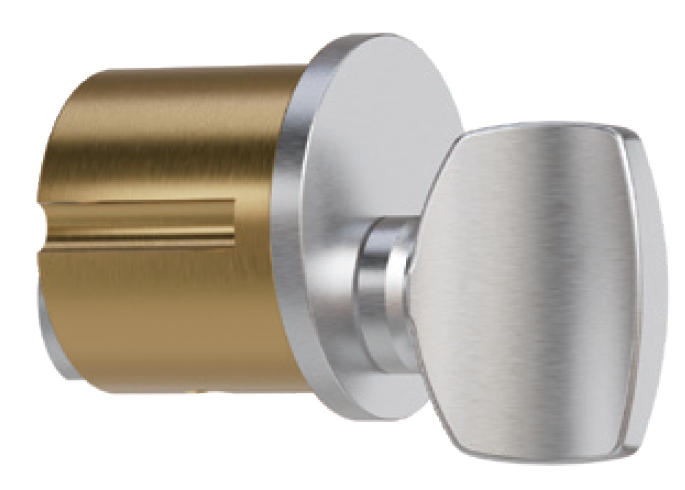

T70 Thumb turn cylinder
C28000 brass body
C28000 brass turn, nickel plated
SS304 rose
Strike details
ST-05 Regular duty strike
3-1/2"×1-9/64"×5/64" (89×29×2mm)
SS304
ST-06 Heavy duty strike
3-1/2"×1-23/64"×3/16" (89×34.5×4mm)
SS303 cast
