Deadbolt lock series

C2017 Dead Lock ANSI/BHMA A156.36 E06071 Entry Lock

C2017 Dead Lock – Single Cylinder Entry Lock

PRODUCT / Deadbolt lock series

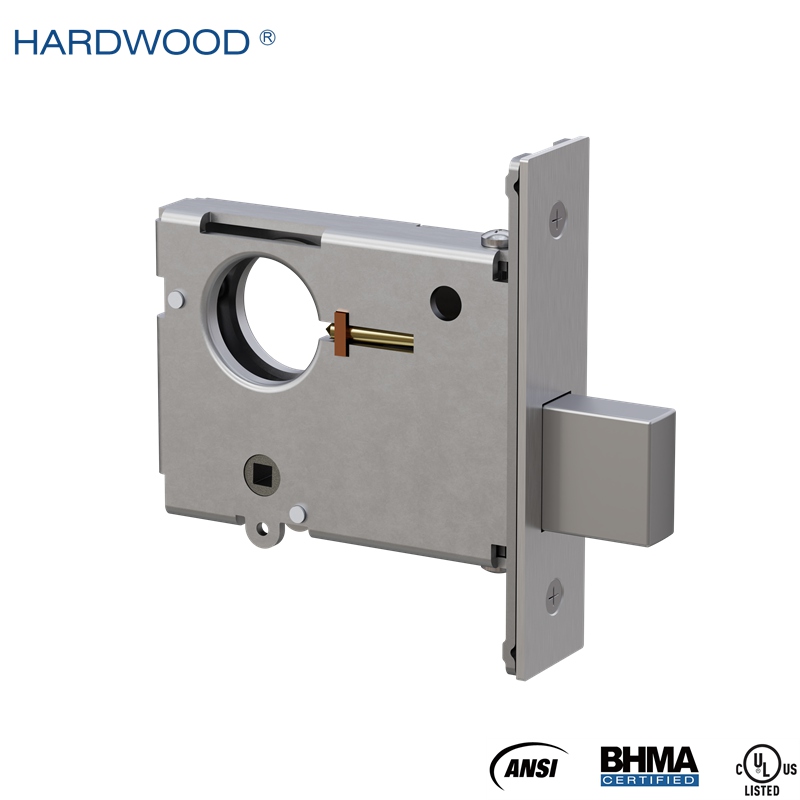

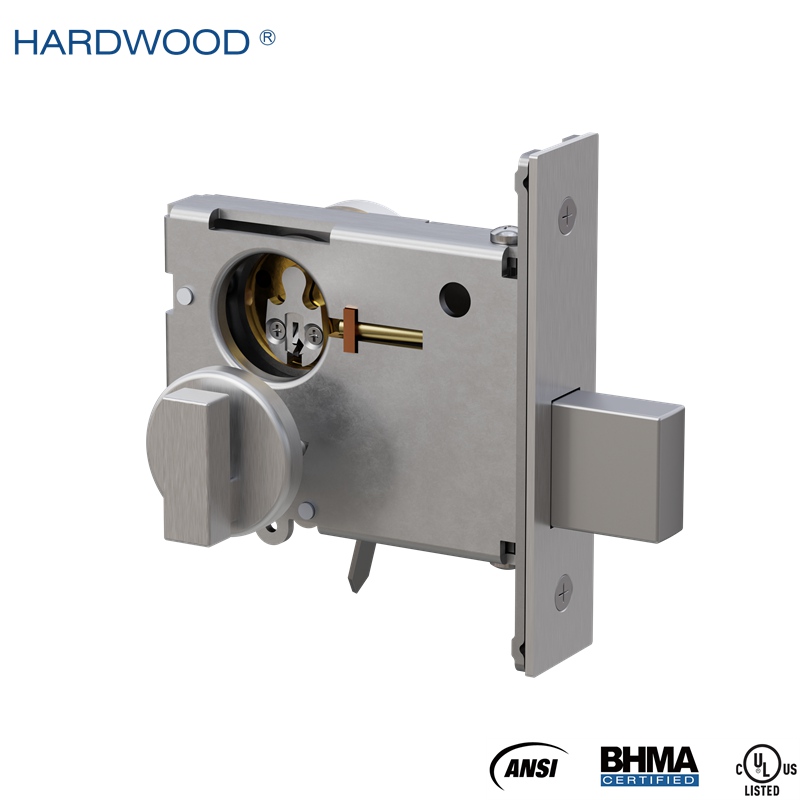

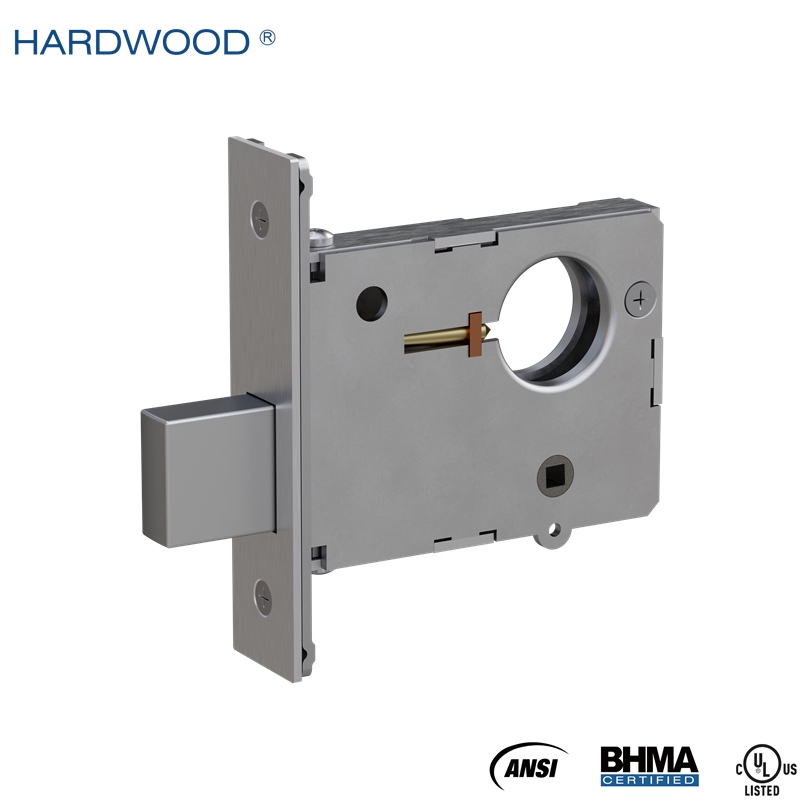

C2017 Dead Lock – Single Cylinder Entry Lock

The C2017 Entry Auxiliary Lock is part of the HARDWOOD C20 Series of compact auxiliary mortise locks. It features an exterior key cylinder and an interior thumb turn for convenient locking and unlocking.

Its small lock case makes it suitable for applications where installation space is limited and additional locking security is required. Designed for durability and reliable operation, the C2017 is suitable for commercial and residential entry doors.

Category: Auxiliary Lock
FUNCTION: ANSI BHMA A156.36 E06071 Entry Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The C20 Series features a compact mortise lock case with a deadbolt mechanism, providing dependable security in a space-saving design. The C2017 combines key-controlled exterior access with convenient interior thumb turn operation.

Designed for demanding applications, the C20 Series is developed in accordance with ANSI/BHMA A156.36 requirements. Its compact construction and deadbolt design make it a practical solution for doors requiring auxiliary locking security.

02 / FEATURE

Feature

Compact Mortise Design:

Small lock case provides a space-saving locking solution for doors with limited installation space.

Keyed Entry:

Exterior cylinder allows authorized users to lock and unlock the door with a key.

Deadbolt Security:

Solid deadbolt engagement provides positive locking without relying on a spring latch.

Durable Construction:

Constructed entirely of stainless steel for strength, corrosion resistance, and long-term durability under repeated use.

Space-Efficient Installation:

Compact dimensions make it suitable for door designs where a full-size lock case is not required.

Versatile Applications:

Suitable for commercial and residential entry doors, storage rooms, offices, and other areas requiring supplemental security.

Standards Compliance:

Designed in accordance with ANSI/BHMA A156.36 requirements for auxiliary locks.

Flexible Door Integration:

Suitable for integration with compatible door hardware, subject to the door preparation and installation requirements.

03 / FUNCTION

Function

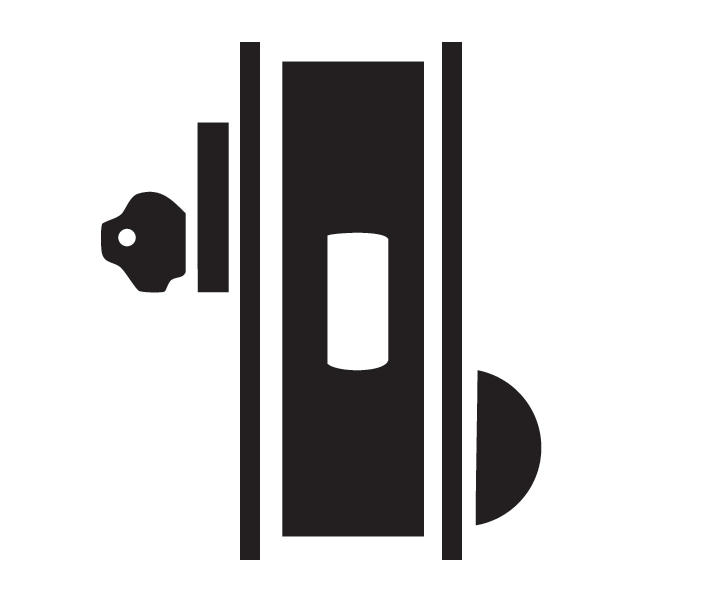

Picture	Model no.	ANSI No.	Function	Description	Outside trim	Inside trim
	C2017	E06071	Entry lock	Deadbolt thrown or retracted by key outside or thumb turn inside	Cylinder	Thumb turn

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/8" (35mm) to 2-3/16" (55mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
Lock case	SS304, thickness 3/32" (2.5mm)
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1"
Hub	AISI4140 42CrMo steel
Other components	Stainless steel/AISI4140/AISI1075
Face plate	SS304, thickness 3/64" or 5/64"

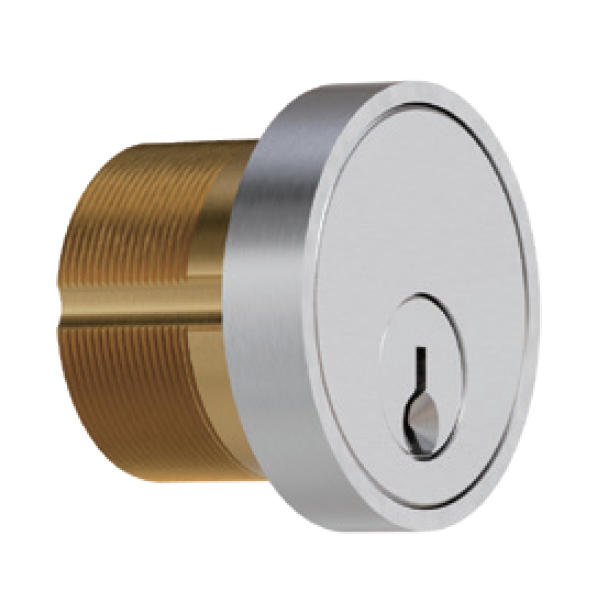

Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face

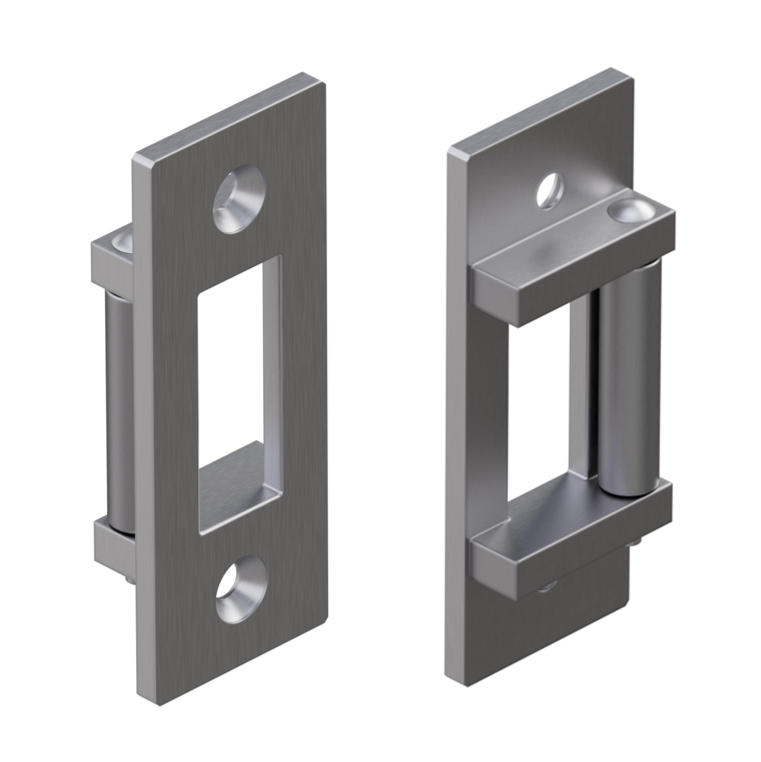

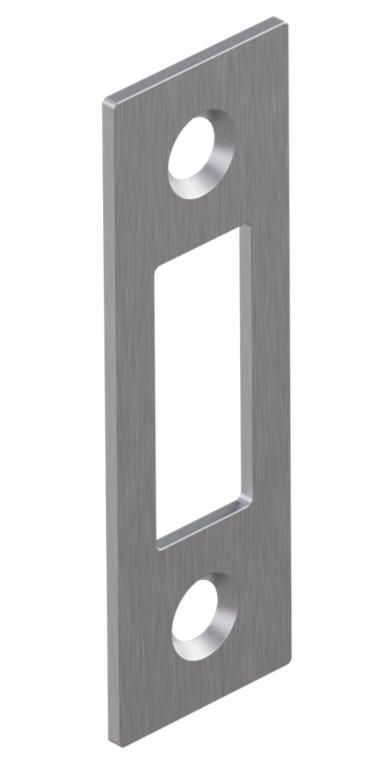

Strike	SS304, 3-1/2" strike, available with regular and heavy duty options
Handing	Non-Handed
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.36 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
