C11+T21 Dead Bolt Lock ANSI BHMA A156.36 E0191 Bathroom, Public restroom Indicator Lock

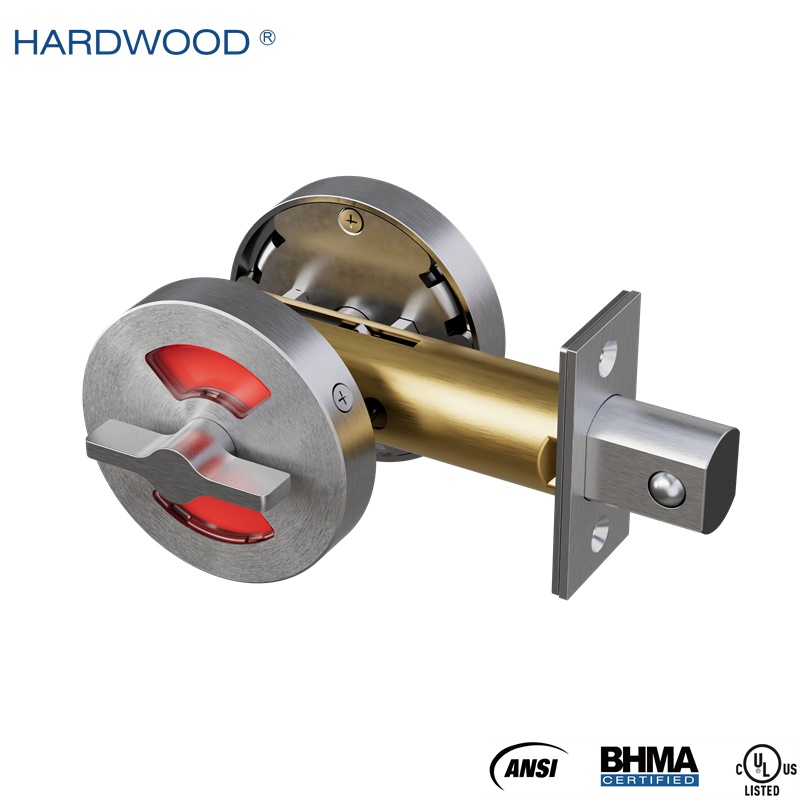

The C11 Dead Bolt with T22 Indicator Trim
is designed for bathroom and public restroom applications where clear occupancy
indication is required. The T22 indicator trim provides a visual indication of
the occupied or vacant status of the room.
Steel ball engagement enhances resistance
to jimmying and increases holding strength, while the C11 Series meets
ANSI/BHMA A156.36 specifications and achieves Grade 1 performance.
The C11 Dead Bolt with T22 Indicator Trim
combines a heavy-duty deadbolt with an occupancy indicator for bathroom and
public restroom doors. The T22 trim provides a clear visual indication of
whether the room is occupied or available, allowing users to identify the door
status from outside.
The deadbolt incorporates a steel ball
engagement feature that strengthens the locking point. Steel ball engagement
enhances resistance to jimmying and increases holding strength, adding security
to the locking function.
The indicator trim is particularly suitable for public and shared restroom facilities where clear occupancy information and convenient operation are required. The C11 Series is built for frequent use in commercial and institutional environments, with Grade 1 performance and ANSI/BHMA A156.36 compliance.
T22 Indicator Trim
Provides a clear visual indication of the occupied or vacant status of the
room.
Steel Ball Engagement
Steel ball engagement enhances resistance to jimmying and increases holding
strength.
Bathroom & Restroom Function
Suitable for bathroom, public restroom, and other privacy applications
requiring occupancy indication.
Grade 1 Performance
Meets ANSI/BHMA A156.36 specifications and achieves Grade 1 performance for
demanding applications.
Clear Occupancy Indication
Allows users to identify the room status from outside without opening the door.
Durable Construction
Built for frequent use in commercial and institutional restroom environments.
Application
Other shared restroom areas
| Picture | Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|---|
|
|
C11+T22 | E0191 | Bathroom and Public restroom | Dead bolt operated by turn from inside, indicator both sides | Indicator | Thumb turn indicator |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-1/2” (38mm) to 1-7/8" (48mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Face plate | SS304 2-1/4"×1-1/8"×5/64" (57×29×2mm) |
| Deadbolt | 17-4PH stainless steel, with Cr15 ball |
| Deadbolt throw | A156.36 all grade bored locks 1" (25.4mm) projection |
| Housing | Brass |
| Trims | SS303/SS304 |
| Strike | ST03 deadbolt strike, 2-3/4” ×1-1/8”×1/16” (70×29×2mm) SS304 |
| Strike box | PA66 |
| Handing | Non-handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
2-3/4" ×1-1/8"×1/16" (70×29×2mm) strike SS304
Strike box Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA6
