Deadbolt lock series
C10+T20 Dead Bolt Lock ANSI BHMA A156.36 E0151 Single Cylinder Entry Lock
PRODUCT / Deadbolt lock series
C10 Dead Bolt with T23 Single Cylinder Trim – Bank Strong room Lock
The C10 Dead Bolt with T23 Single Cylinder
Trim is a high-security locking solution for bank strong rooms and other
restricted-access areas. The T23 trim features a cylinder on the exterior side
and an interior thumb turn with an indicator for convenient operation and clear
lock status.
The C10 Series meets ANSI/BHMA A156.36
specifications and achieves Grade 1 performance for demanding security
applications.
- Category
- Auxiliary lock
- FUNCTION
- ANSI BHMA A156.36 E0151 Single Cylinder Entry Lock
01 / OVERVIEW
Overview

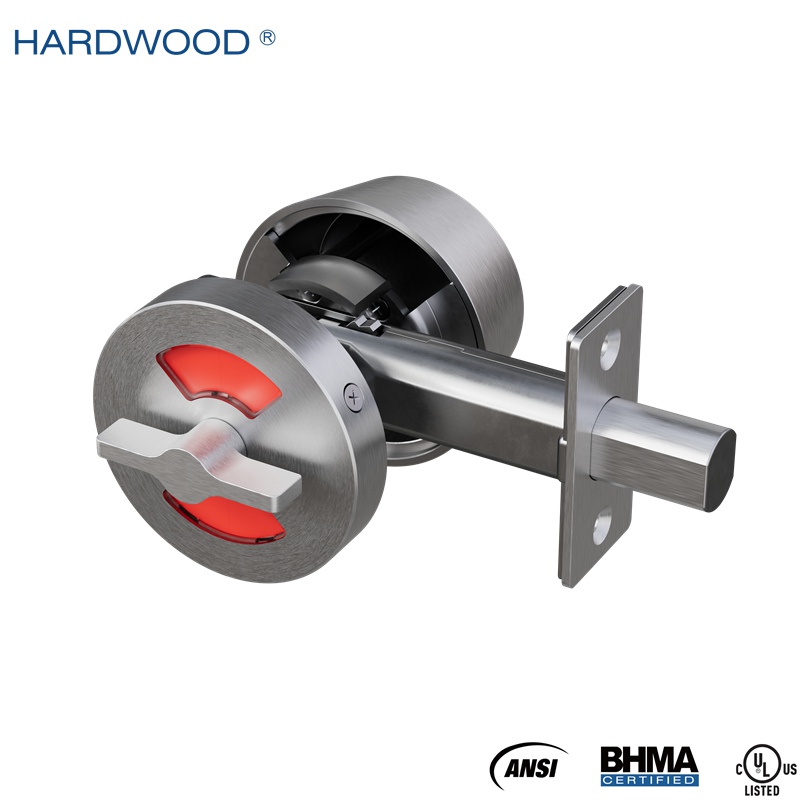

The C10 Dead Bolt with T23 Single Cylinder
Trim combines a heavy-duty deadbolt with a single-cylinder configuration and an
interior indicator thumb turn. The exterior side is operated by key, while the
interior side uses a thumb turn with an indicator, allowing the deadbolt to be
operated from inside while providing a clear visual indication of its status.
The T23 configuration is suited to bank
strong rooms and other restricted areas where controlled exterior access and
clear interior lock status are required. The indicator helps identify whether
the deadbolt is engaged, providing additional convenience for authorized users.
The C10 Series is built for demanding security applications where strength, durability, and controlled access are critical. Its Grade 1 performance and ANSI/BHMA A156.36 compliance make it suitable for financial institutions and other high-security environments.
02 / FEATURE
Feature

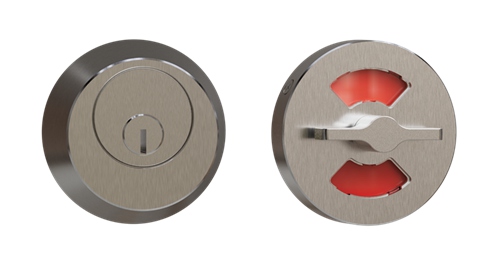

T23 Single Cylinder Trim
Exterior cylinder and interior thumb turn with indicator provide key operation
from outside and convenient operation from inside.
Lock Status Indicator
The integrated indicator provides a clear visual indication of the lock status
from the interior side.
High-Security Design
Heavy-duty deadbolt construction provides increased resistance to forced entry
and unauthorized access.
Grade 1 Performance
Meets ANSI/BHMA A156.36 specifications and achieves Grade 1 performance for
demanding applications.
Controlled Access
Exterior key operation provides controlled access to restricted and
high-security areas.
Durable Construction
Built for frequent use and demanding conditions in financial and institutional
environments.
Application
- Bank strong rooms
- Bank vault areas
- Financial institutions
- High-security rooms
- Restricted-access areas
- Government and administrative buildings
- Institutional facilities
Commercial security areas
03 / FUNCTION
Function

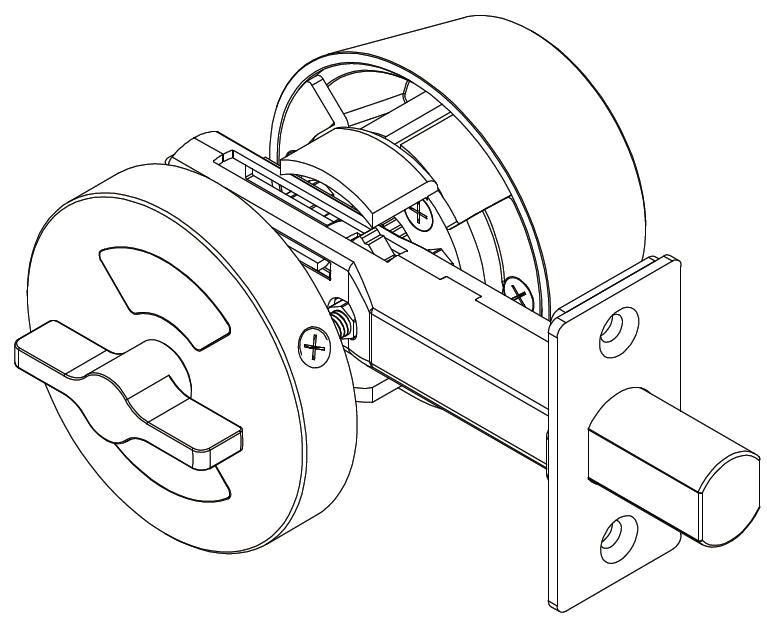

| Picture | Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|---|
|
|

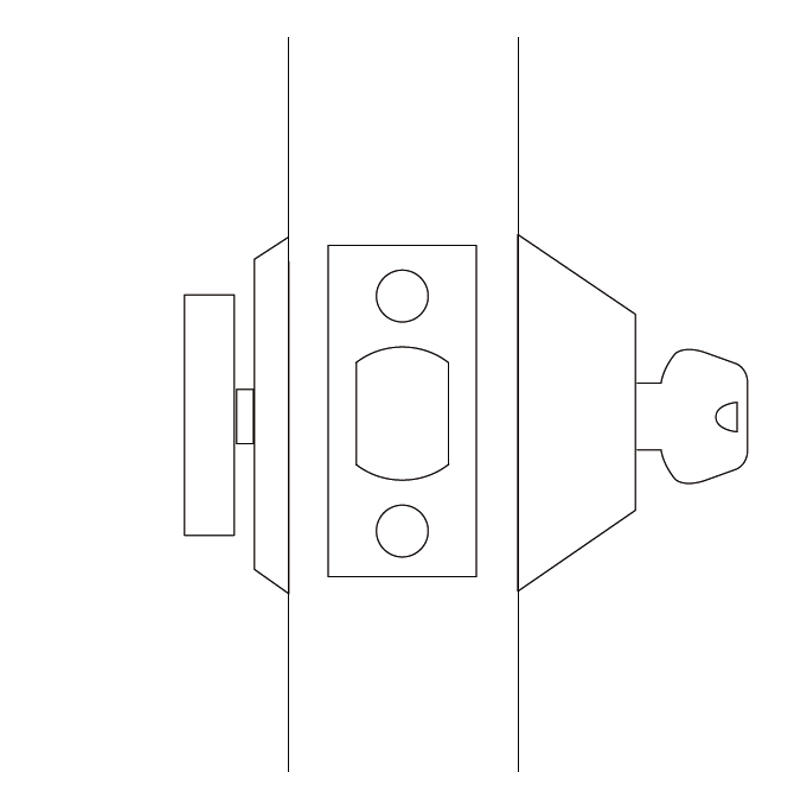

C10+T23 | E0151 | Entry lock | Dead bolt operated by key from outside and by turn from inside | Cylinder | Thumb turn Indicator |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-1/2” (38mm) to 1-7/8" (48mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Face plate | SS304 2-1/4"×1-1/8"×5/64" (57×29×2mm) |

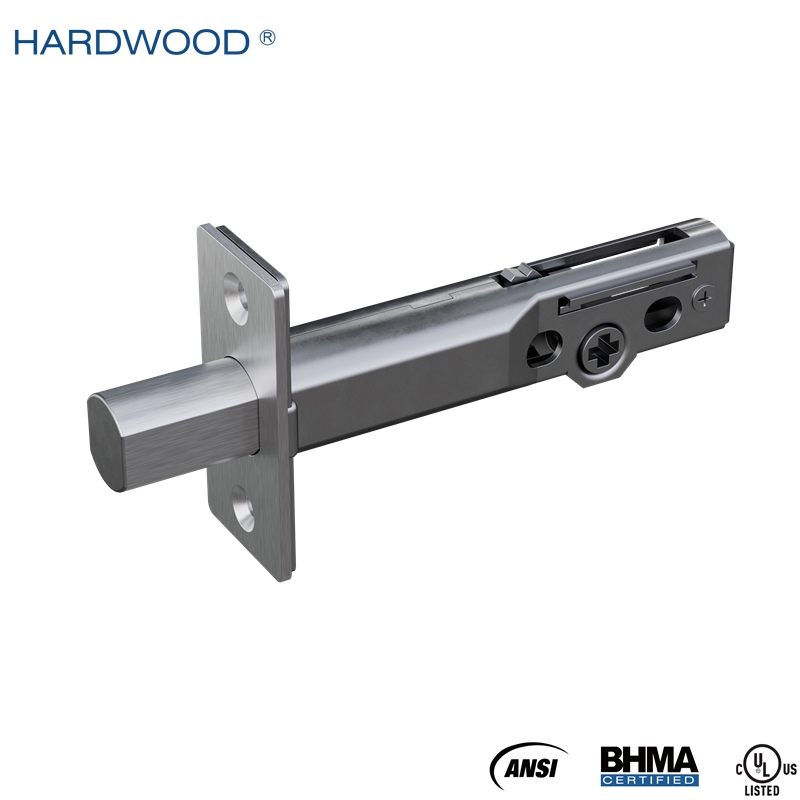

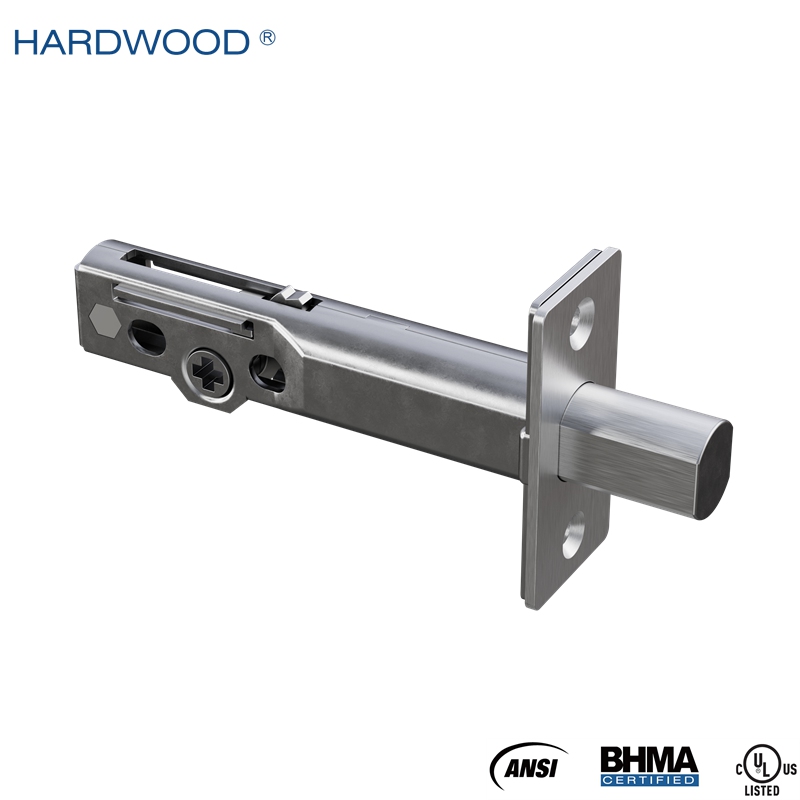

| Deadbolt | 17-4PH stainless steel |
| Deadbolt throw | A156.36 all grade bored locks 1" (25.4mm) projection |
| Housing | SS304 |

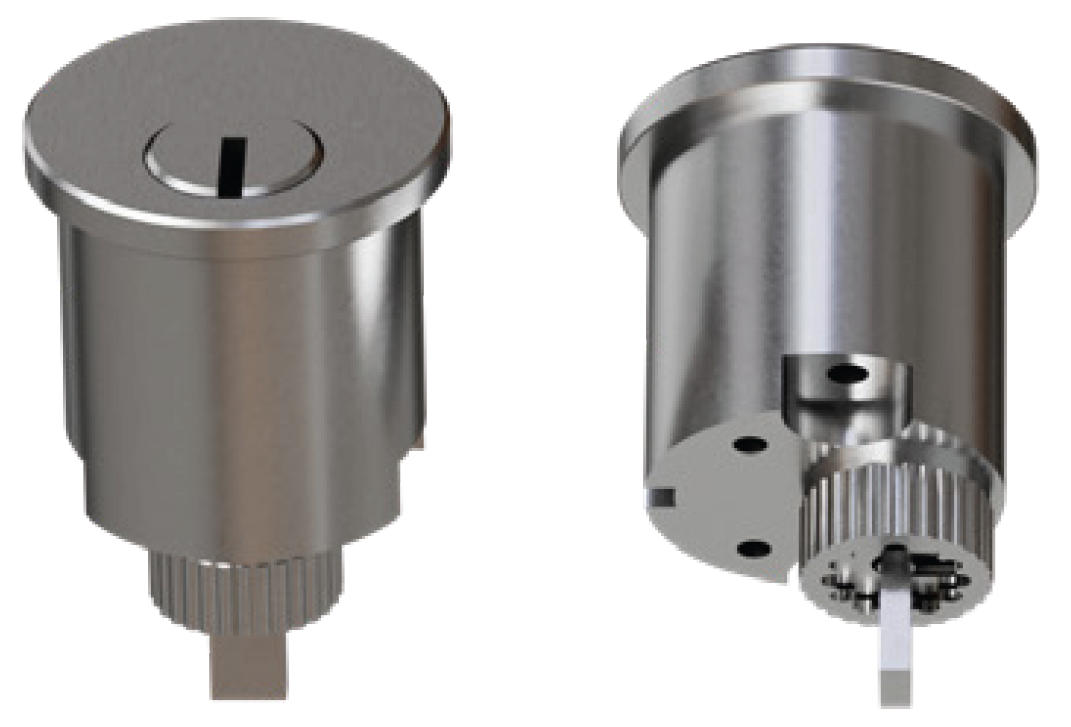

| Cylinder | Brass, 5 pin, 3 keys, satin nickel face |
| Trims | SS303/SS304 |
| Strike | ST03 deadbolt strike, 2-3/4” ×1-1/8”×1/16” (70×29×2mm) SS304 |
| Strike box | PA66 |
| Handing | Non-handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Trim details
Cylinder details
Strike details

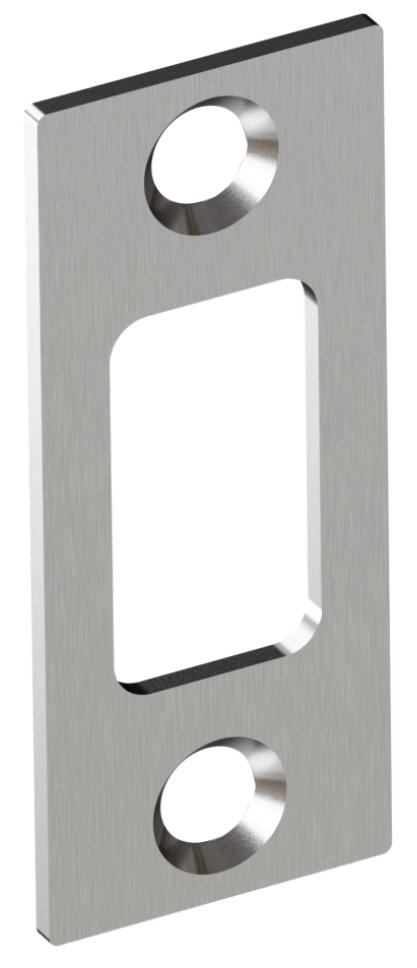

ST-03 *Standard
4-7/8" (124mm) ANSI curved lip strike SS304.
2-3/4" ×1-1/8"×1/16" (70×29×2mm) strike SS304
Strike box Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA6
