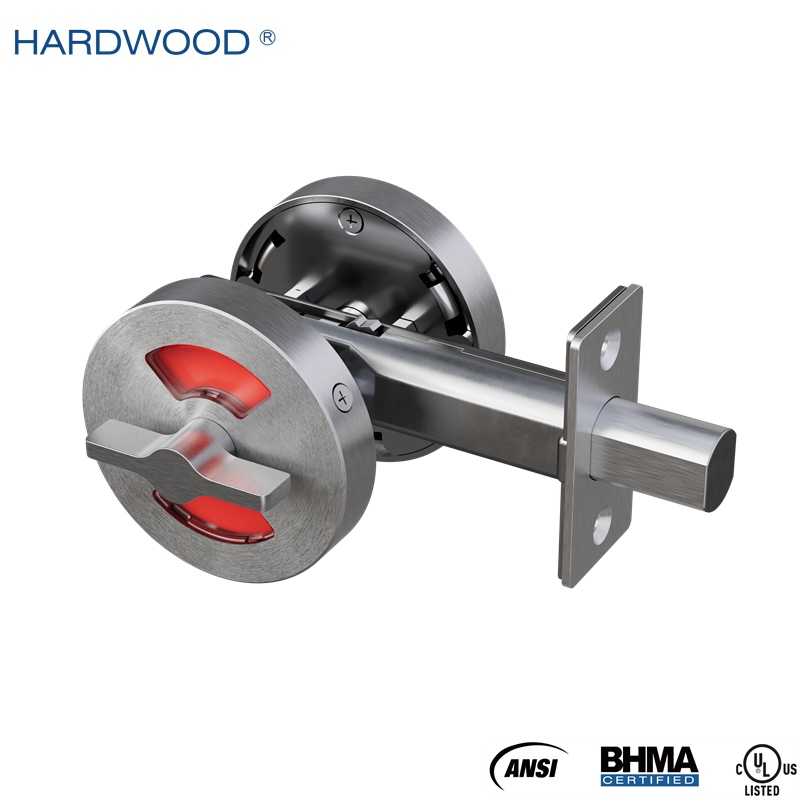

C10+T21 Dead Bolt Lock ANSI BHMA A156.36 E0191 Bathroom, Public restroom Indicator Lock
The C10 Dead Bolt with T22 Indicator Trim
is designed for bathroom and public restroom applications where clear occupancy
indication is required. The T22 indicator trim provides a visual indication of
the occupied or vacant status of the room.
The C10 Series meets ANSI/BHMA A156.36 specifications and achieves Grade 1 performance for demanding applications.
The C10 Dead Bolt with T22 Indicator Trim
combines a heavy-duty deadbolt with an occupancy indicator for bathroom and
public restroom doors. The T22 trim provides a clear visual indication of
whether the room is occupied or available, helping users quickly identify the
door status.
The indicator trim is particularly suitable
for public and shared restroom facilities where simple and clear occupancy
information is important. It provides convenient operation while allowing the
locked or occupied status to be identified from outside the room.
The C10 Series is built for frequent use in commercial and institutional environments. Its Grade 1 performance and ANSI/BHMA A156.36 compliance provide durable operation for demanding restroom and bathroom applications.

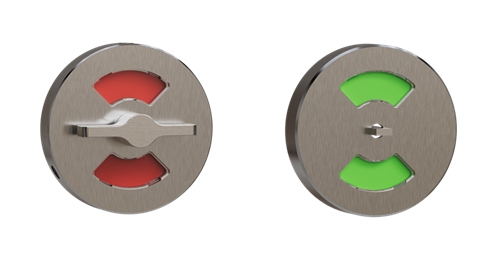

T22 Indicator Trim
Provides a clear visual indication of the occupied or vacant status of the
room.
Bathroom & Restroom Function
Suitable for bathroom, public restroom, and other privacy applications
requiring occupancy indication.
Grade 1 Performance
Meets ANSI/BHMA A156.36 specifications and achieves Grade 1 performance for
demanding applications.
Clear Occupancy Indication
Allows users to identify the room status from outside without opening the door.
Durable Construction
Built for frequent use in commercial and institutional restroom environments.
Application
| Picture | Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|---|
|
|

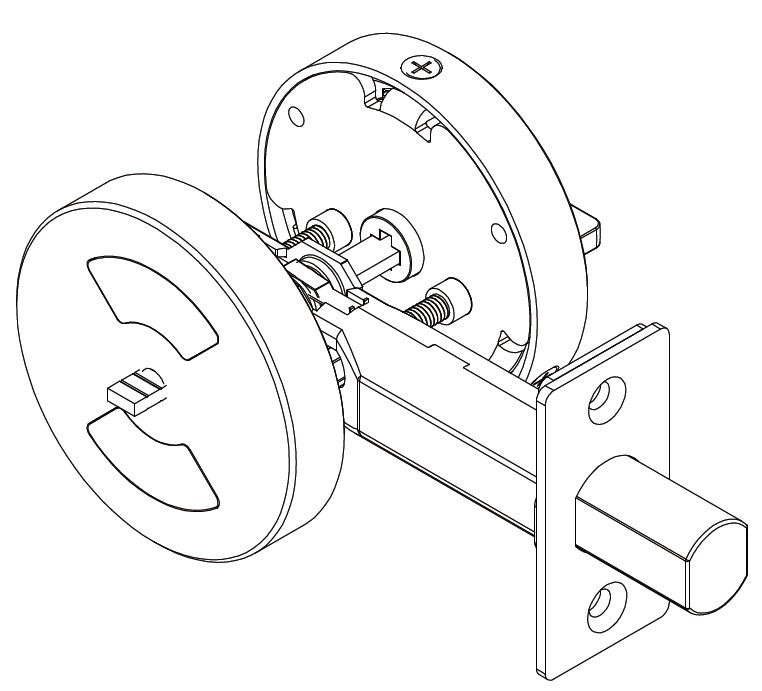

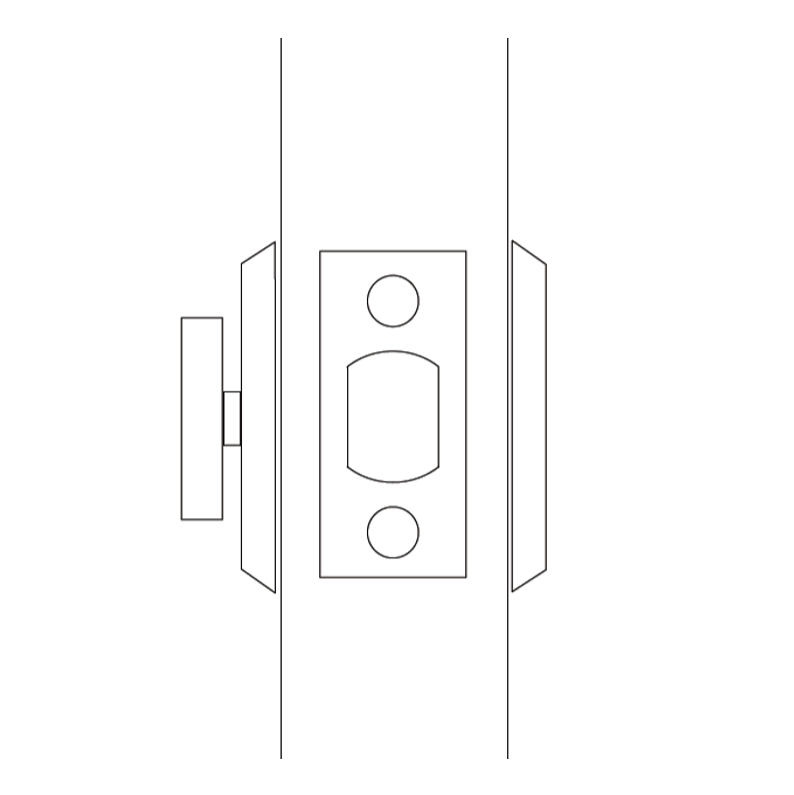

C10+T22 | E0191 | Bathroom and Public restroom | Dead bolt operated by turn from inside, indicator both sides | Indicator | Thumb turn indicator |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-1/2” (38mm) to 1-7/8" (48mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Face plate | SS304 2-1/4"×1-1/8"×5/64" (57×29×2mm) |
| Deadbolt | 17-4PH stainless steel |
| Deadbolt throw | A156.36 all grade bored locks 1" (25.4mm) projection |
| Housing | SS304 |
| Trims | SS303/SS304 |
| Strike | ST03 deadbolt strike, 2-3/4” ×1-1/8”×1/16” (70×29×2mm) SS304 |
| Strike box | PA66 |
| Handing | Non-handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
2-3/4" ×1-1/8"×1/16" (70×29×2mm) strike SS304
Strike box Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA6
