PRODUCTS / Deadbolt lock series
Deadbolt lock series
C10+T20 Dead Bolt Lock ANSI BHMA A156.36 E0151 Single Cylinder Entry Lock
PRODUCT / Deadbolt lock series
C10 Dead Bolt with T20 Single Cylinder Trim – Entry Lock
The C10 Dead Bolt with T20 Single Cylinder
Trim is an entry lock with a cylinder on the exterior side and a thumb turn on
the interior side. The T20 single cylinder trim provides convenient interior
operation while maintaining enhanced protection against forced entry.
The single-cylinder configuration offers a practical balance of security and convenience, making the C10 suitable for entry doors and other applications where exterior key operation and interior thumb-turn operation are preferred.
- Category
- Auxiliary lock
- FUNCTION
- ANSI BHMA A156.36 E0151 Single Cylinder Entry Lock
01 / OVERVIEW
Overview
The C10 Dead Bolt with T20 Single Cylinder
Trim combines a high-security deadbolt with convenient interior operation. The
exterior side is operated by key, while the interior side uses a thumb turn for
quick locking and unlocking.
The T20 trim provides a practical
single-cylinder configuration for applications requiring key operation from the
outside and easy thumb-turn operation from the inside.
With Grade 1 performance and durable construction, the C10 is suitable for demanding commercial and residential applications.
02 / FEATURE
Feature
T20 Single Cylinder Trim
Exterior cylinder and interior thumb turn provide convenient key operation from
outside and quick operation from inside.
Grade 1 Performance
Meets ANSI/BHMA A156.36 specifications and achieves Grade 1 performance for
demanding applications.
Enhanced Security
Heavy-duty deadbolt construction provides increased resistance to forced entry
and unauthorized access.
Durable Construction
Built for frequent use and long-term service in both commercial and residential
environments.
Easy Interior Operation
The interior thumb turn allows the deadbolt to be locked or unlocked without a
key.
Application
- Residential entry doors
- Commercial perimeter doors
- Multi-family and apartment units
- Private offices and restricted rooms
- Government and administrative buildings
- Industrial and utility spaces
- Financial institutions
- High-security rooms
03 / FUNCTION
Function

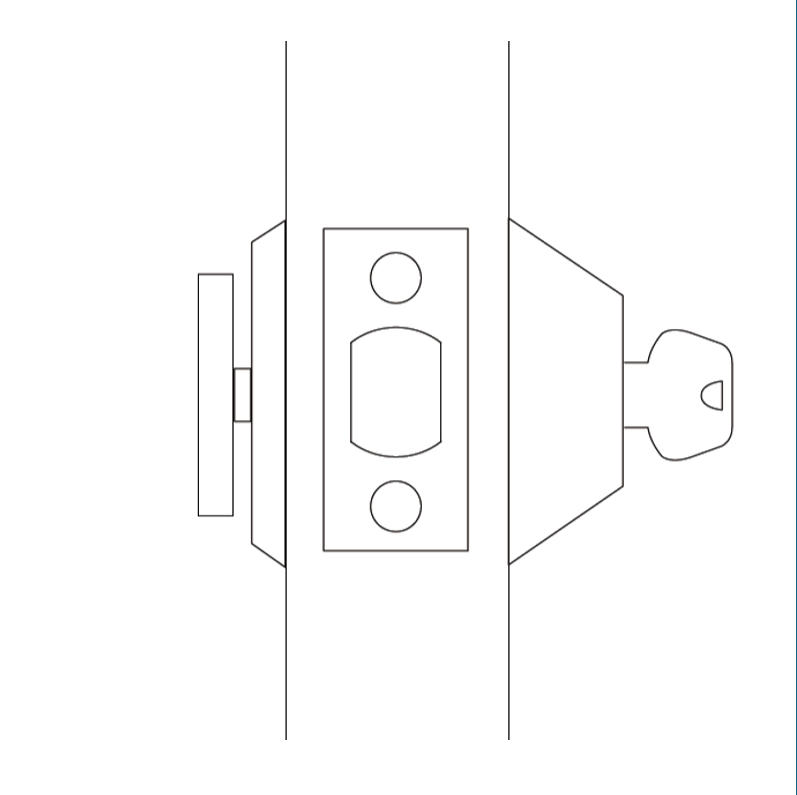

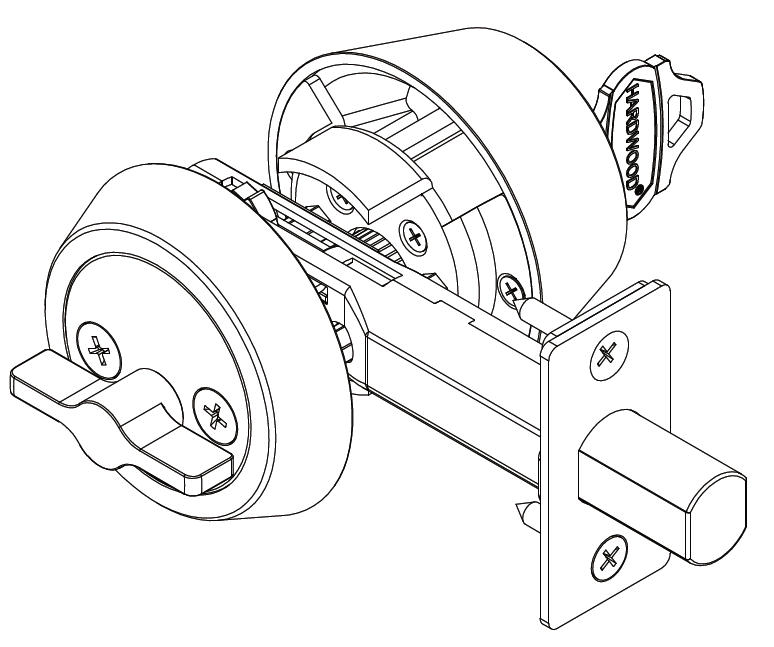

| Picture | Picture | Model no. | ANSI No. | Function | Description | Outside trim | Inside trim |
|---|---|---|---|---|---|---|---|
|
|
C10+T20 | E0151 | Entry lock | Dead bolt operated by key from outside and by turn from inside | Cylinder | Thumb turn |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-1/2” (38mm) to 1-7/8" (48mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Face plate | SS304 2-1/4"×1-1/8"×5/64" (57×29×2mm) |
| Deadbolt | 17-4PH stainless steel |
| Deadbolt throw | A156.36 all grade bored locks 1" (25.4mm) projection |
| Housing | SS304 |
| Cylinder | Brass, 5 pin, 3 keys, satin nickel face |
| Trims | SS303/SS304 |
| Strike | ST03 deadbolt strike, 2-3/4” ×1-1/8”×1/16” (70×29×2mm) SS304 |
| Strike box | PA66 |
| Handing | Non-handed |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.36 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration

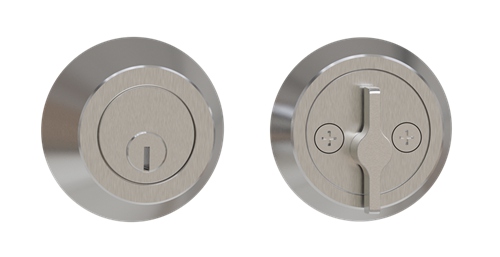

Trim details
Cylinder details
Strike options
ST-03 *Standard
4-7/8" (124mm) ANSI curved lip strike SS304.
2-3/4" ×1-1/8"×1/16" (70×29×2mm) strike SS304
Strike box Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA6
