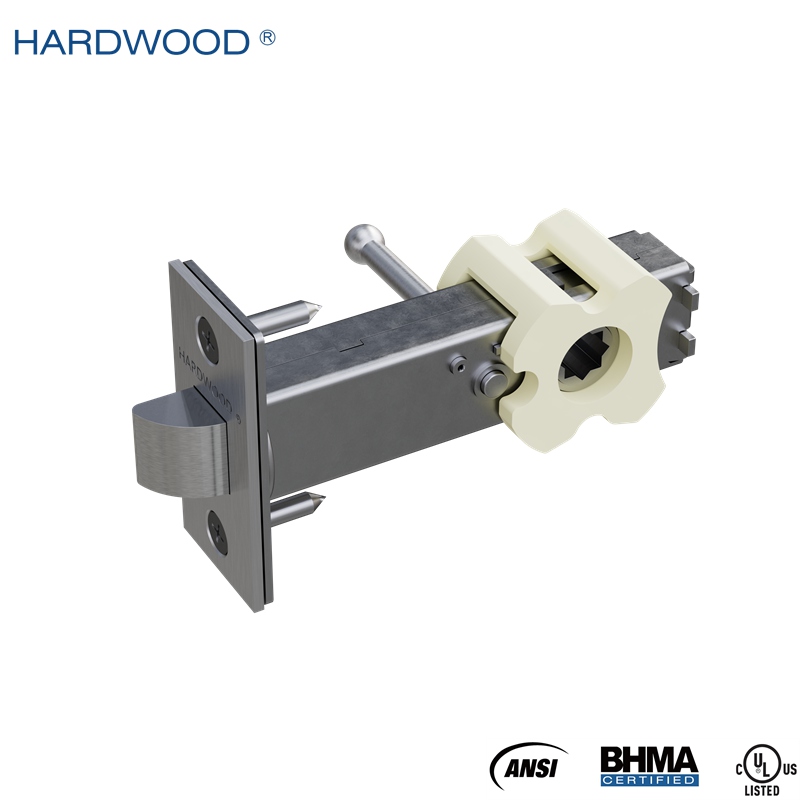

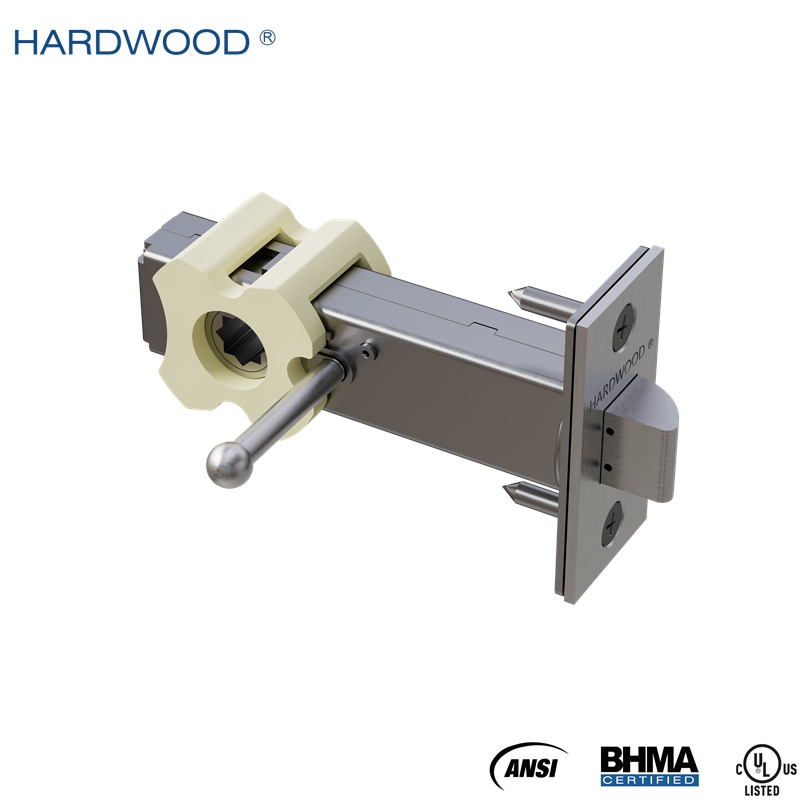

B15-03 Latch Bolt Lock ANSI BHMA A156.2 F76A Privacy, Bedroom or bath lock
The B15-03 Privacy, Bedroom or Bath Latch is an auxiliary latch bolt lock designed primarily for residential applications. It complies with ANSI/BHMA A156.2 requirements and is constructed entirely of stainless steel for strength, corrosion resistance, and durability. An installation bracket allows the latch to be used with conventional lever handles, providing a practical solution for residential privacy doors.
The B15-03 Privacy, Bedroom or Bath Latch is designed for reliable everyday use in residential applications. Its all-stainless-steel construction provides resistance to corrosion and wear for long-term service.
The latch is supplied with an installation bracket that allows it to be used with conventional lever handles. This provides flexibility in handle selection and simplifies installation for common residential door applications.
The B15-03 is intended for privacy, bedroom, and bathroom doors. It provides convenient privacy control while maintaining a simple and practical door hardware configuration.
Residential
Design
●
Designed primarily for residential door applications.
● Suitable for privacy, bedroom, and bathroom doors.
● Provides reliable everyday latch operation.
Construction
●
All components are made of stainless steel.
● Stainless steel construction provides resistance to corrosion and wear.
● Durable construction supports long-term residential use.
Installation
●

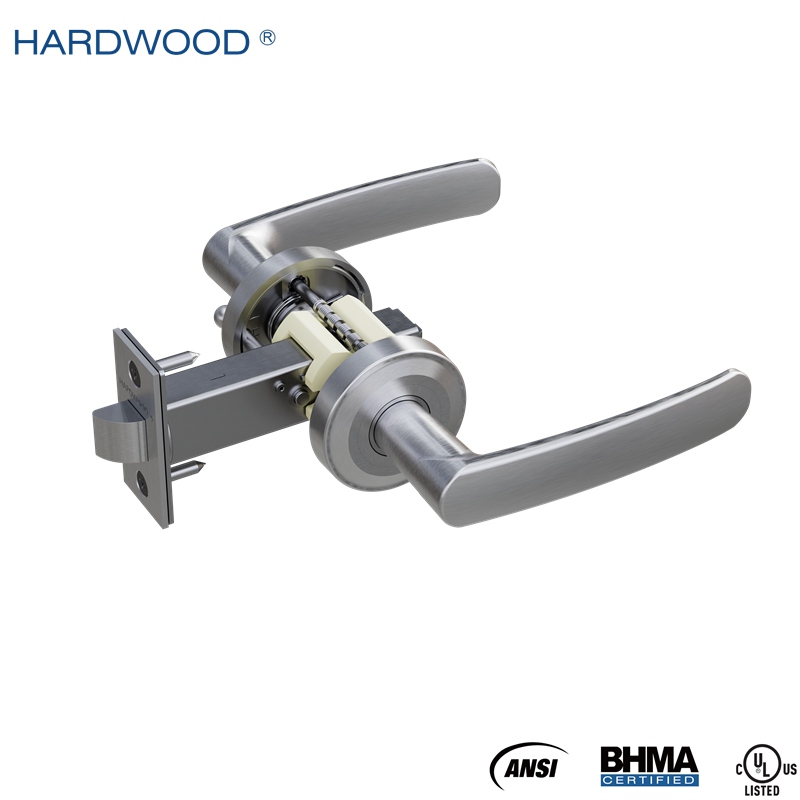

Includes an installation bracket for use with conventional lever handles.
● Compatible with standard lever handle configurations.
● Simple design allows convenient installation.
Application
●
Residential bedroom doors.
● Bathroom doors.
● Privacy doors for bedrooms and other living spaces.
● Suitable for applications where basic privacy is required.
| Picture | Picture | Model no. | ANSI No. | Function | Description | Accessories | Match lever |
|---|---|---|---|---|---|---|---|
|
|

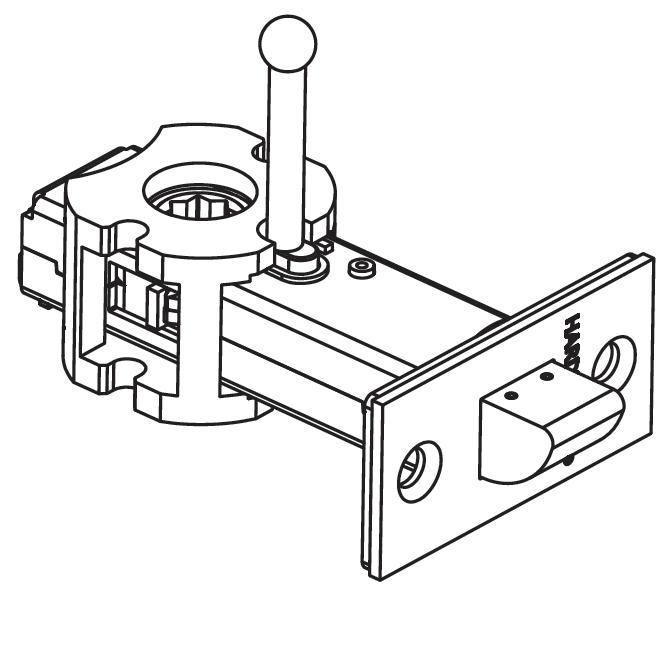

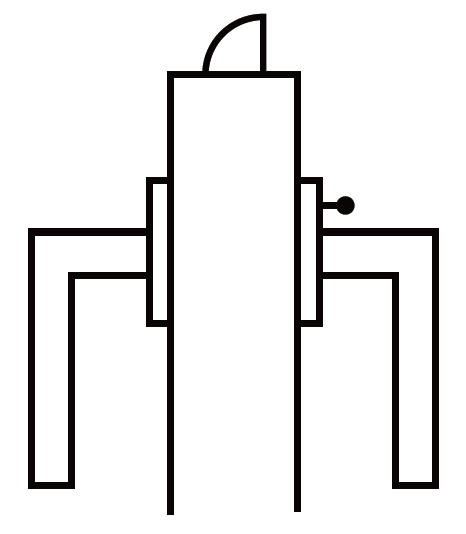

B15-03 | F76A | Privacy, Bedroom or bath lock | Both levers retract latch except when outside lever is locked by inside push button; Outside lever unlocked by operating inside lever or closing door. | Bracket; Locking button |

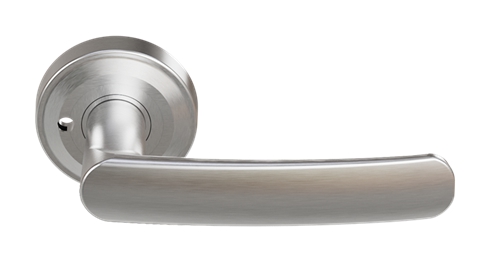

L24 |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/8” (60mm), 2-3/4” (70mm), 5” (127mm), 7” (178mm) |
| Latch bolt | Square corner latch bolt, Brass, chrome plated, direction reversible |
| Latch throw | A156.36 Grade 1-Mortise and Rim locks 1/2" (12.7mm) projection |
| Housing | SS304 |
| Face plate | SS304, 2-1/4"×1-1/8"×5/64” (57×29×2mm) |
| Lever | Zinc alloy |
| Strike | SS304, 4-7/8" ANSI curved lip strike, 2-3/4” curved lip T-strike |
| Strike box | PA66 |
| Hand | Non-handed, latch bolt bevel is field reversible |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.2 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |

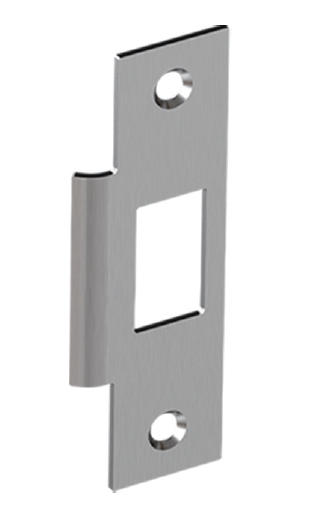

4-7/8" (124mm) ANSI curved lip strike SS304.
1-1/16" (27mm) curved lip from center of screw holes to end of lip.
Strike box 4-13/16"×1"×1" (122×26×26mm), PA66

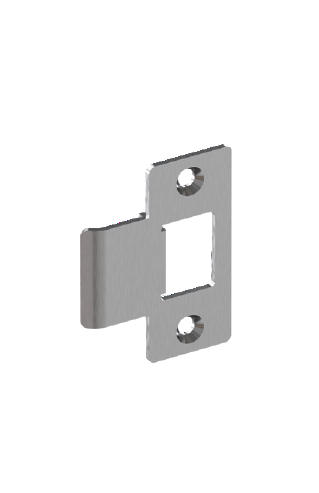

2-3/4" (70mm) curved lip “T” strike SS304.
1-1/4" (32mm) curved lip from center of screw holes to end of lip.
Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA66

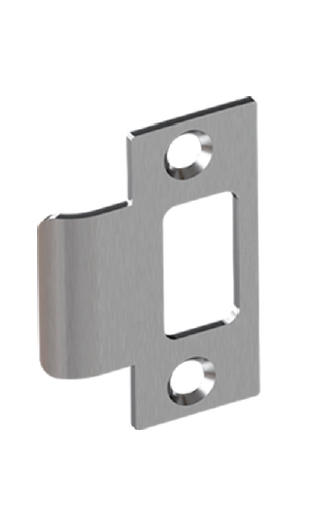

2-3/8" (60mm) curved lip “T” strike SS304.
1-5/16" (33mm) curved lip from center of screw holes to end of lip.
Strike box 2-9/32"×1"×21/32" (58×25×16.5mm), PA
