B15-0F Latch Bolt Lock ANSI BHMA A156.2 F75 Passage or closet lock
The

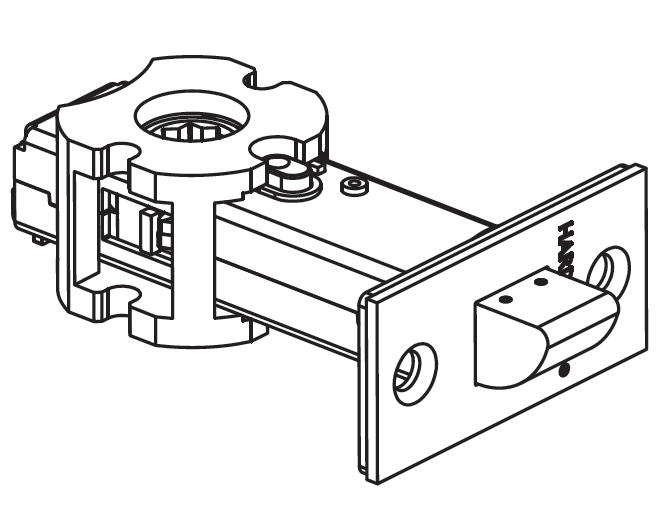

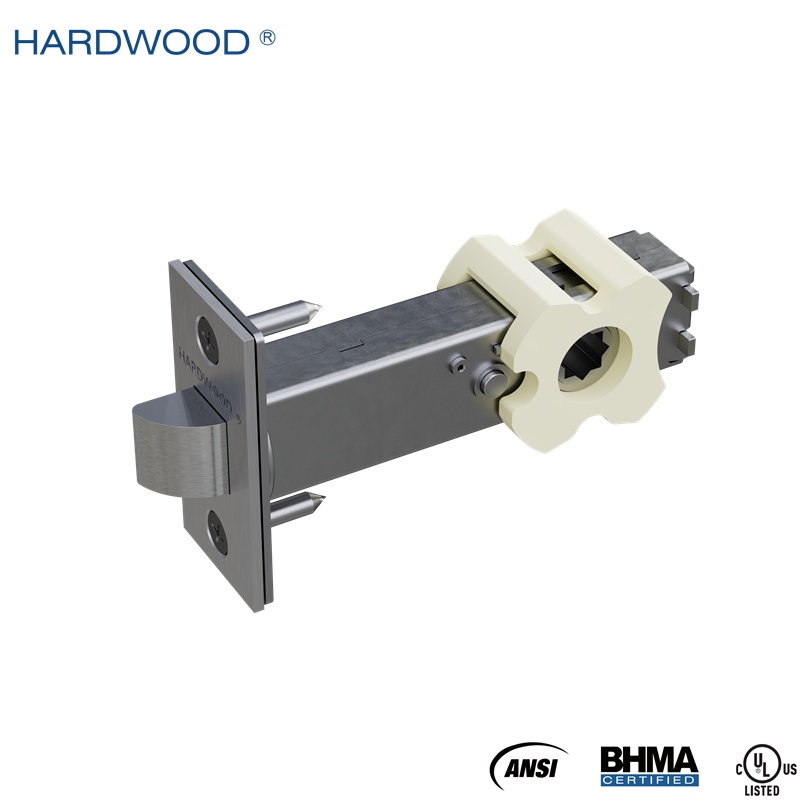

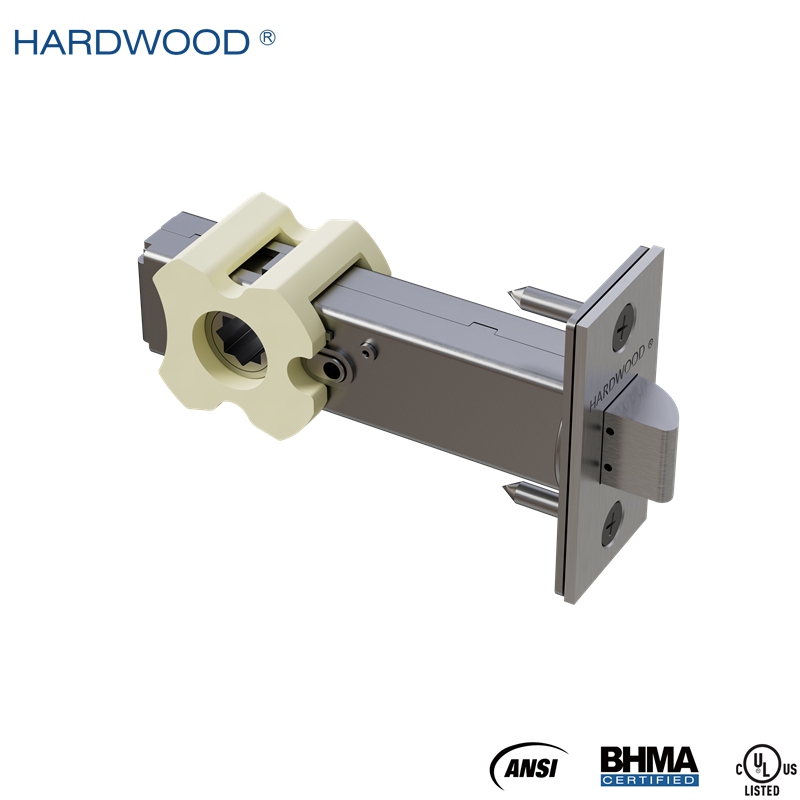

B15-01 Passage or Closet Latch is an auxiliary latch bolt lock designed
primarily for residential applications. It complies with ANSI/BHMA A156.2
requirements and is constructed entirely of stainless steel for strength,
corrosion resistance, and durability. An installation bracket allows the latch
to be used with conventional lever handles, providing a simple and flexible
solution for residential doors.
The
B15-01 Passage or Closet Latch is designed for reliable everyday operation in
residential applications. Its stainless steel construction provides good
resistance to corrosion and wear for long-term use.
The

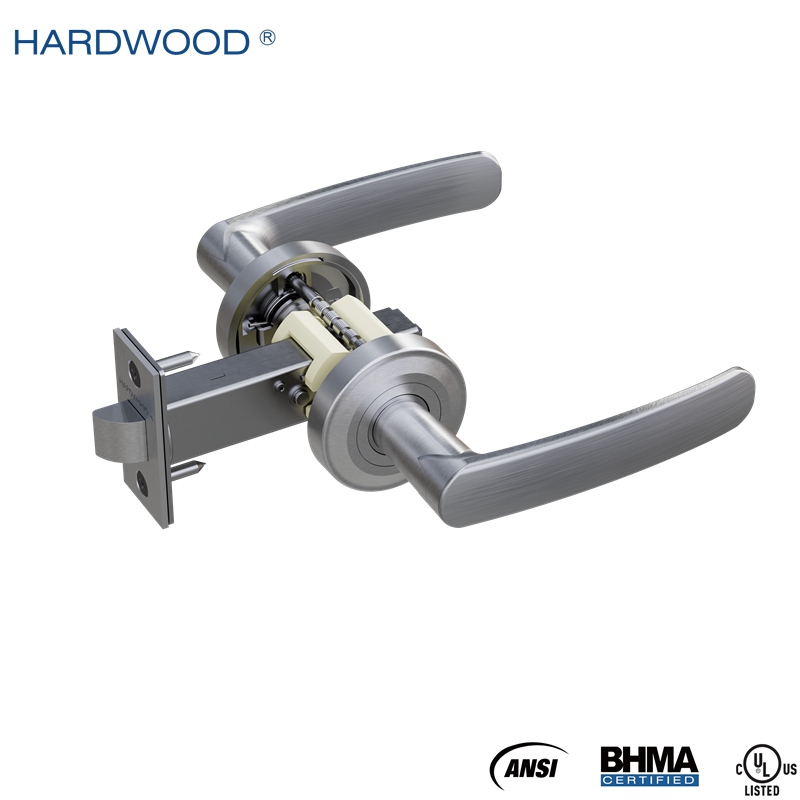

latch is supplied with an installation bracket that allows compatibility with
conventional lever handles. This provides greater flexibility in handle
selection and simplifies installation for common residential door applications.
The
B15-01 is suitable for passage and closet doors where locking is not required.
It provides smooth latch operation while maintaining a clean and practical door
hardware configuration.
Residential
Design
●
Designed primarily for residential door applications.
● Suitable for passage and closet doors.
● Provides smooth and reliable everyday latch operation.
Construction
●
Latch body and components are made of stainless steel.
● Stainless steel construction provides resistance to corrosion and wear.
● Durable construction supports long-term residential use.
Installation
●
Includes an installation bracket for mounting with conventional lever handles.
● Compatible with standard lever handle configurations.
● Simple construction allows convenient installation.
Application
●
Residential interior doors.
● Passage doors.
● Closet doors.
● Bedrooms, living areas, and other rooms where locking is not required.
| Picture | Picture | Model no. | ANSI No. | Function | Description | Accessories | Match lever |
|---|---|---|---|---|---|---|---|
|
|

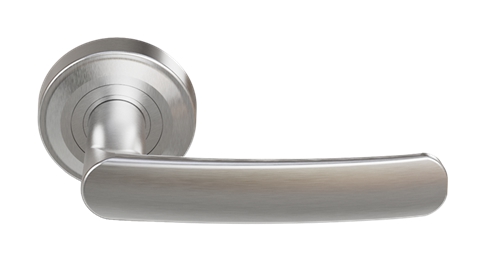

B15-01 | F75 | Passage & closet lock | Both levers retract latch at all times. | Bracket | L23 |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/8” (60mm), 2-3/4” (70mm), 5” (127mm), 7” (178mm) |
| Latch bolt | Square corner latch bolt, Brass, chrome plated, direction reversible |
| Latch throw | A156.36 Grade 1-Mortise and Rim locks 1/2" (12.7mm) projection |
| Housing | SS304 |
| Face plate | SS304, 2-1/4"×1-1/8"×5/64” (57×29×2mm) |
| Lever | Zinc alloy |
| Strike | SS304, 4-7/8" ANSI curved lip strike, 2-3/4” curved lip T-strike |
| Strike box | PA66 |
| Hand | Non-handed, latch bolt bevel is field reversible |
| Finishes | US32D |
4-7/8" (124mm) ANSI curved lip strike SS304.
1-1/16" (27mm) curved lip from center of screw holes to end of lip.
Strike box 4-13/16"×1"×1" (122×26×26mm), PA66
2-3/4" (70mm) curved lip “T” strike SS304.
1-1/4" (32mm) curved lip from center of screw holes to end of lip.
Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA66
2-3/8" (60mm) curved lip “T” strike SS304.
1-5/16" (33mm) curved lip from center of screw holes to end of lip.
Strike box 2-9/32"×1"×21/32" (58×25×16.5mm), PA
