DG34 mortise lock - Intruder Dead Bolt Lock

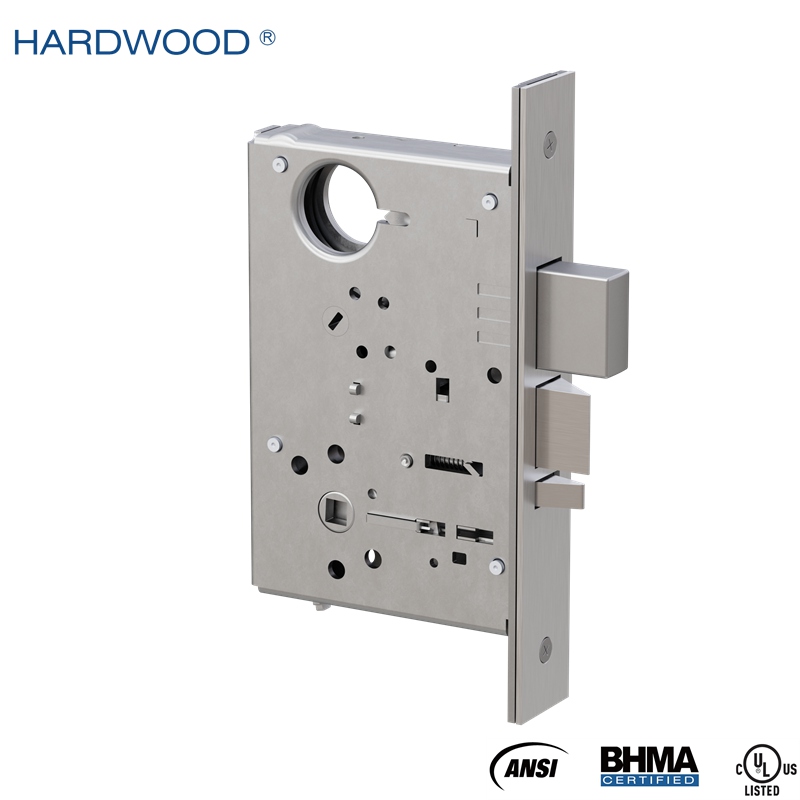

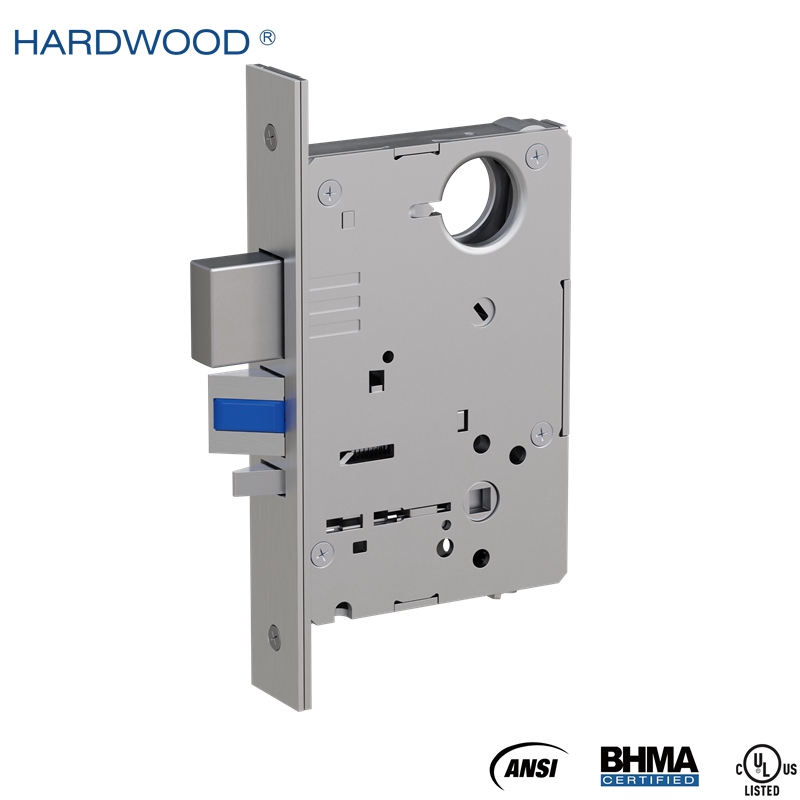

The DG34 Intruder Dead Bolt Lock is a Grade 1 mortise lock for demanding commercial and institutional applications. It complies with ANSI/BHMA A156.13 and exceeds the Grade 1 cycle requirement. The stainless steel lock case and internal components provide strength, durability, and resistance to corrosion. UL listed for up to 3-hour fire-rated openings.

Category: Mortise Lock
FUNCTION: ANSI BHMA A156.13 F34 Intruder Dead Bolt Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The DG34 Intruder Dead Bolt Lock meets ANSI/BHMA A156.13 requirements and Grade 1 performance for heavy-duty use. Its cycle performance exceeds the Grade 1 requirement for doors subject to frequent operation.

The lock case and internal components are made of stainless steel, providing resistance to corrosion and wear. The heavy-duty construction is suited to applications requiring a high level of physical security.

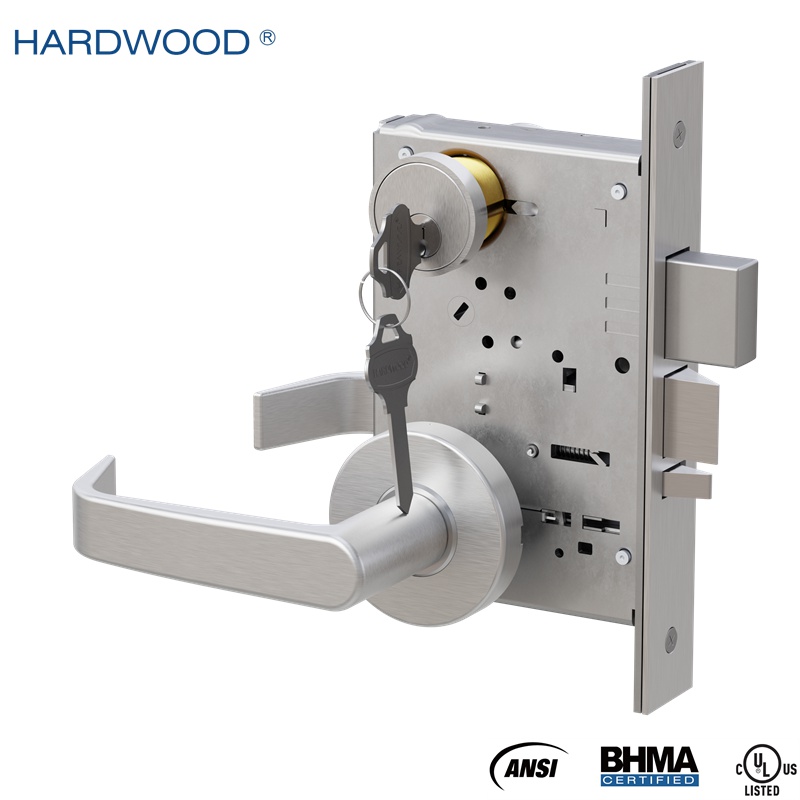

The DG34 features cylinders on both sides, allowing the deadbolt to be operated by key from either side of the door. Both levers remain operable, allowing the latchbolt to be retracted while the deadbolt provides the primary locking function.

The DG Series uses a common multifunction mortise lock body that supports 10 functions and fits multiple door thicknesses and both wood and metal doors.

UL listed for up to 3-hour fire-rated openings, the DG34 is suitable for commercial buildings, institutional facilities, controlled-access areas, and other applications requiring enhanced security.

02 / FEATURE

Feature

Intruder Function

● Deadbolt provides the primary locking function for enhanced security.
● Both levers remain operable for normal latchbolt operation.
● Designed for applications requiring increased resistance to unauthorized entry.

Access Control

● Cylinders are provided on both sides of the door.
● Key operation allows the deadbolt to be controlled from either side.
● Double-cylinder configuration provides controlled locking from both sides.

Construction

● Grade 1 mortise lock construction for demanding commercial and institutional use.
● Stainless steel lock case and internal components provide strength and corrosion resistance.
● Heavy-duty components support repeated daily operation.

Flexibility

● Common DG Series lock body supports 10 functions.
● Quick Reversible design allows handing to be changed without disassembling the lock case.
● Fits multiple door thicknesses and both wood and metal doors.

Security

● Double-cylinder deadbolt provides key-controlled locking from both sides.
● Heavy-duty construction and high-strength materials provide increased resistance to forced damage.
● UL listed for up to 3-hour fire-rated openings.

03 / FUNCTION

Function

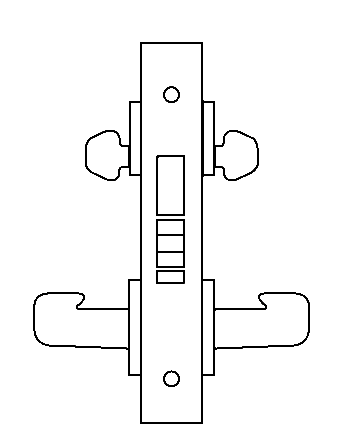

Picture	Model no.	ANSI no.	Function	Description	Lever	Cylinder	Thumb turn	Emergency turn
	DG34	F34	Intruder Dead Bolt Lock	Latch by either lever unless outside lever is key-locked. Dead bolt by key from either side. Inside lever retracts both bolts and unlocks outside. Auxiliary dead latch / latch deadlocked when dead bolt is thrown.	✓	✓

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
CTC	Cylinder to lever distance 3-7/8" (98mm)
Lock case	SS304, thickness 3/32"
Latch bolt	SS303, A156.13 Grade 1 latch bolt projection 3/4"
Auxiliary latch bolt	SS304, 3/8" projection, non-handed
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1”
Face plate	SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm)
Hub	AISI4140 steel, high hardness
Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face
Strike	SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm)
Strike box	PA66
Hand	Field reversible latch bolt
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.13 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
