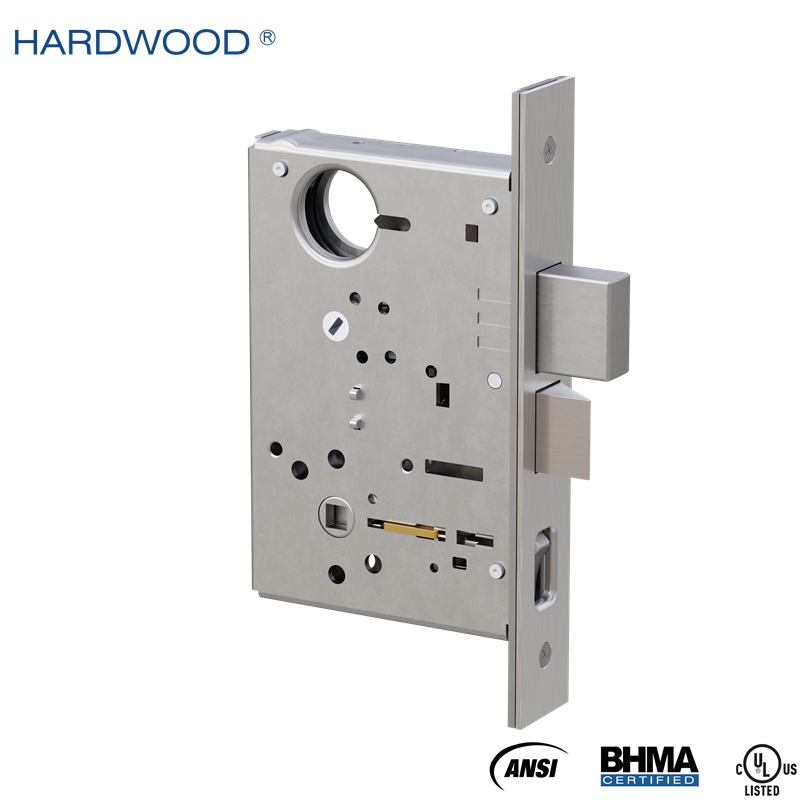

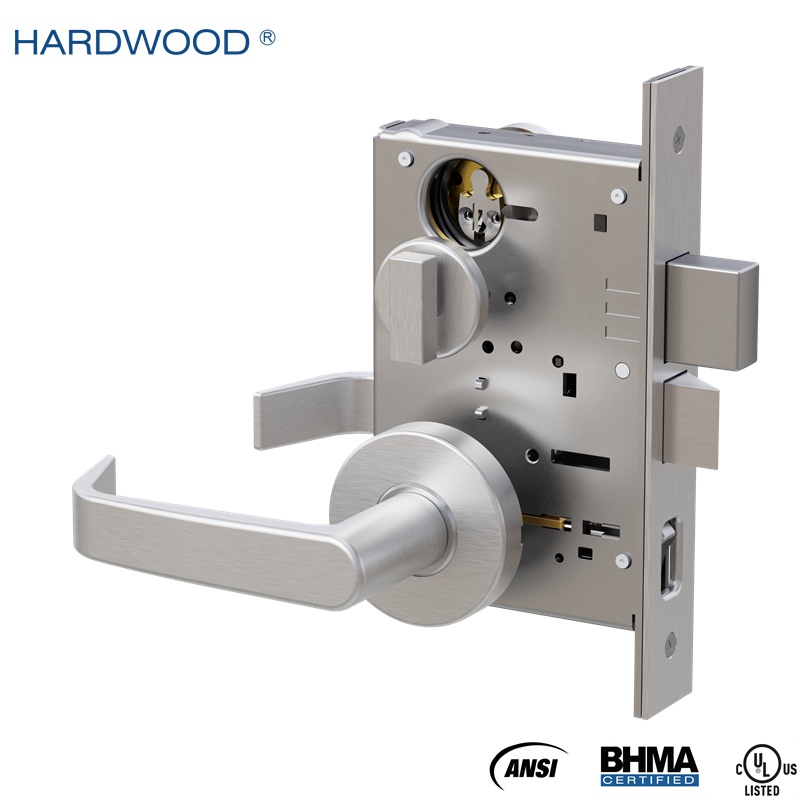

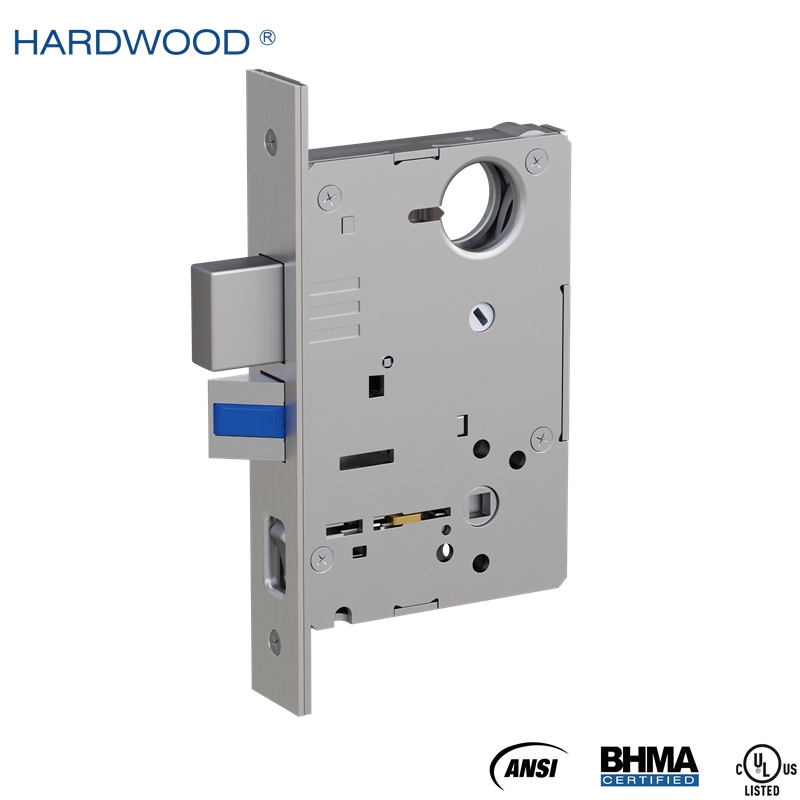

DG12 mortise lock ANSI/BHMA A156.13 F12 Dormitory or Exit Lock

DG12 mortise lock - Dormitory or Exit Lock

PRODUCT / DG series

DG12 mortise lock - Dormitory or Exit Lock

The DG12 Dormitory or Exit Lock is a Grade 1 mortise lock for heavy-duty commercial and institutional applications. It meets ANSI/BHMA A156.13 requirements, with cycle performance exceeding the Grade 1 requirement. The lock case and internal components are made of stainless steel for strength and corrosion resistance. UL listed for up to 3-hour fire-rated openings

Category: Mortise Lock
FUNCTION: ANSI BHMA A156.13 F12 Dormitory or Exit Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The DG12 Dormitory or Exit Lock meets ANSI/BHMA A156.13 requirements and Grade 1 performance for heavy-duty use. Its cycle performance exceeds the Grade 1 requirement for doors subject to frequent use.

The lock case and internal components are made of stainless steel, providing strength and resistance to corrosion and wear. The durable construction is suited to repeated daily operation in high-traffic areas.

The DG Series uses one multifunction mortise lock body for 10 functions, including entry, classroom, storeroom, privacy, passage, and deadlock. The lock body fits multiple door thicknesses and both wood and metal doors.

UL listed for up to 3-hour fire-rated openings, the DG12 is suitable for dormitories, student housing, schools, colleges, offices, healthcare facilities, and other commercial and institutional applications.

02 / FEATURE

Feature

Universal Design

● One multifunction mortise lock body supports 10 functions.
● Fits multiple door thicknesses and both wood and metal doors.
● Compatible with various lever and trim configurations, including ADA-compliant levers.
● Indicator trim is available for visual locked/unlocked status.
● Compatible with escutcheon trim and electronic mechanisms.

Quality

● ANSI Grade 1 mortise lock for heavy-duty, high-traffic use.
● Stainless steel lock case and internal components provide strength and corrosion resistance.
● Cycle performance exceeds the Grade 1 requirement.

Flexibility

● One lock body can be configured for 10 functions.
● Quick Reversible design allows handing to be changed without disassembling the lock case.
● Multiple trim options support different door and access requirements.

Security & Safety

● Heavy-duty construction provides dependable security for dormitory and exit doors.
● High-strength components provide increased resistance to forced damage.
● UL listed for up to 3-hour fire-rated openings.

03 / FUNCTION

Function

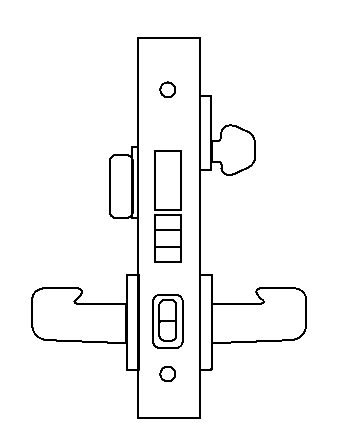

Picture	Model no.	ANSI no.	Function	Description	Lever	Cylinder	Thumb turn	Emergency turn
	DG12	F12	Dormitory or Exit Lock	Latch by either lever except when outside lever is mechanically disabled. Dead bolt by outside key and inside turn. Inside lever retracts both bolts; outside remains locked.	✓	✓	✓

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
CTC	Cylinder to lever distance 3-7/8" (98mm)
Lock case	SS304, thickness 3/32"
Latch bolt	SS303, A156.13 Grade 1 latch bolt projection 3/4"
Dead bolt	17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1”
Face plate	SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm)
Hub	AISI4140 steel, high hardness
Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face
Strike	SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm)
Strike box	PA66
Hand	Field reversible latch bolt
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.13 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
