DG09 mortise lock - Apartment, Exit or Public Toilet Lock

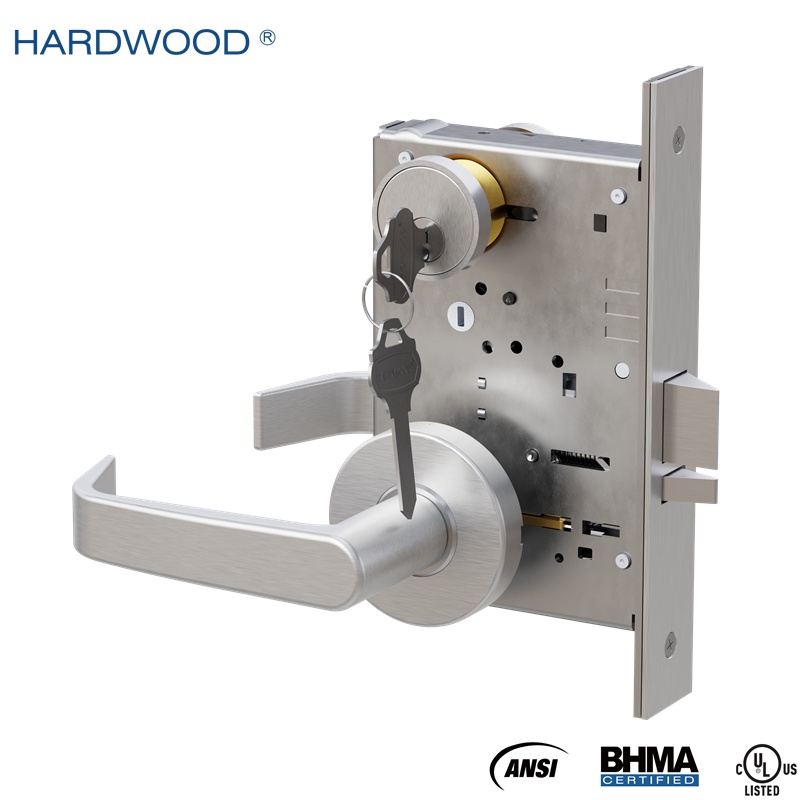

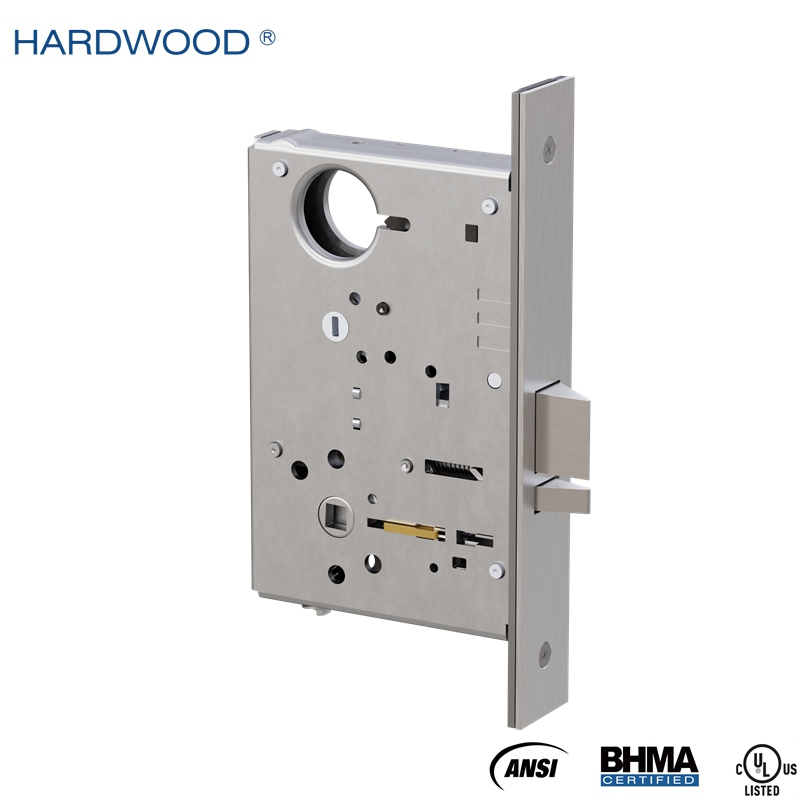

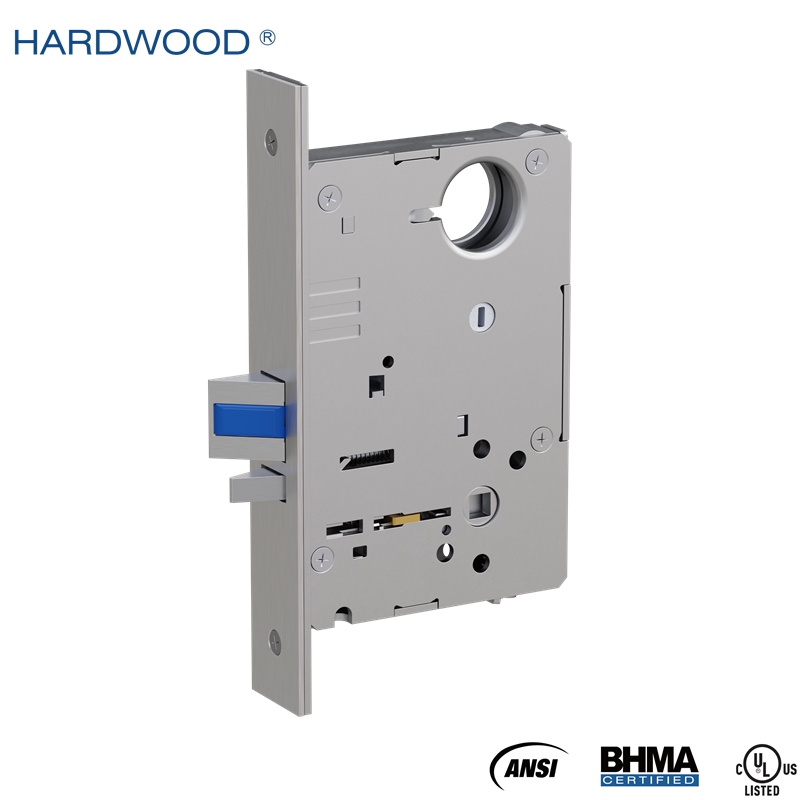

The DG09 Apartment, Exit or Public Toilet Lock is a Grade 1 mortise lock for heavy-duty commercial and institutional applications. It meets ANSI/BHMA A156.13 requirements, with cycle performance exceeding the Grade 1 requirement. The lock case and internal components are made of stainless steel for strength and corrosion resistance. UL listed for up to 3-hour fire-rated openings.

Category: Mortise Lock
FUNCTION: ANSI BHMA A156.13 F09 Apartment, Exit or Public Toilet Lock

Request Product Information View Product Categories

01 / OVERVIEW

Overview

The DG09 Apartment, Exit or Public Toilet Lock meets ANSI/BHMA A156.13 requirements and Grade 1 performance for heavy-duty use. Its cycle performance exceeds the Grade 1 requirement for doors subject to frequent use.

The lock case and internal components are made of stainless steel, providing strength and resistance to corrosion and wear. The durable construction is suited to repeated daily operation in busy commercial and public areas.

The DG09 is equipped with cylinders on both sides, allowing key operation from either side of the door. This configuration provides controlled access for apartment corridor doors, exit doors, public toilets, and other applications where access from both sides is required.

The DG Series uses one multifunction mortise lock body for 10 functions, including entry, classroom, storeroom, privacy, passage, and deadlock. The lock body fits multiple door thicknesses and both wood and metal doors.

UL listed for up to 3-hour fire-rated openings, the DG09 is suitable for apartment buildings, exit doors, public toilets, offices, schools, healthcare facilities, and other high-traffic applications.

02 / FEATURE

Feature

Universal Design

● One multifunction mortise lock body supports 10 functions.
● Fits multiple door thicknesses and both wood and metal doors.
● Compatible with various lever and trim configurations, including ADA-compliant levers.
● Indicator trim is available for visual locked/unlocked status.
● Compatible with escutcheon trim and electronic mechanisms.

Quality

● ANSI Grade 1 mortise lock for heavy-duty, high-traffic use.
● Stainless steel lock case and internal components provide strength and corrosion resistance.
● Cycle performance exceeds the Grade 1 requirement.

Access Control

● Double-cylinder configuration allows key operation from both sides of the door.
● Provides controlled access for apartment, exit, and public-area doors.

Flexibility

● One lock body can be configured for 10 functions.
● Quick Reversible design allows handing to be changed without disassembling the lock case.

Security & Safety

● Heavy-duty construction provides increased resistance to forced damage.
● UL listed for up to 3-hour fire-rated openings.

03 / FUNCTION

Function

Picture	Model no.	ANSI no.	Function	Description	Lever	Cylinder	Thumb turn	Emergency turn

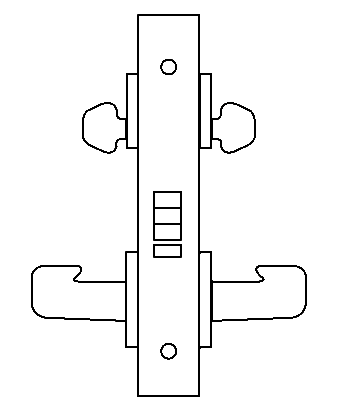

	DG09	F09	Apartment, Exit or Public Toilet Lock	Latch by either lever except when outside lever is key-locked from inside. Locked latch retracts by outside key or inside lever. Auxiliary dead latch.	✓	✓

04 / SPECIFICATION

Specification

Door preparation	ANSI/BHMA A156.115W or A156.115
Door thickness	For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard
Stile	4-1/2" (114mm) minimum stile
Backset	2-3/4" (70mm)
CTC	Cylinder to lever distance 3-7/8" (98mm)
Lock case	SS304, thickness 3/32"
Latch bolt	SS303, A156.13 Grade 1 latch bolt projection 3/4"
Auxiliary latch bolt	SS304, 3/8" projection, non-handed
Face plate	SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm)
Hub	AISI4140 steel, high hardness
Cylinder	Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face
Strike	SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm)
Strike box	PA66
Hand	Field reversible latch bolt
Finishes	US32D
ANSI/BHMA	ANSI/BHMA A156.13 certified Grade 1
UL listed	UL/cUL 10C listed for 3 hour fire rating
