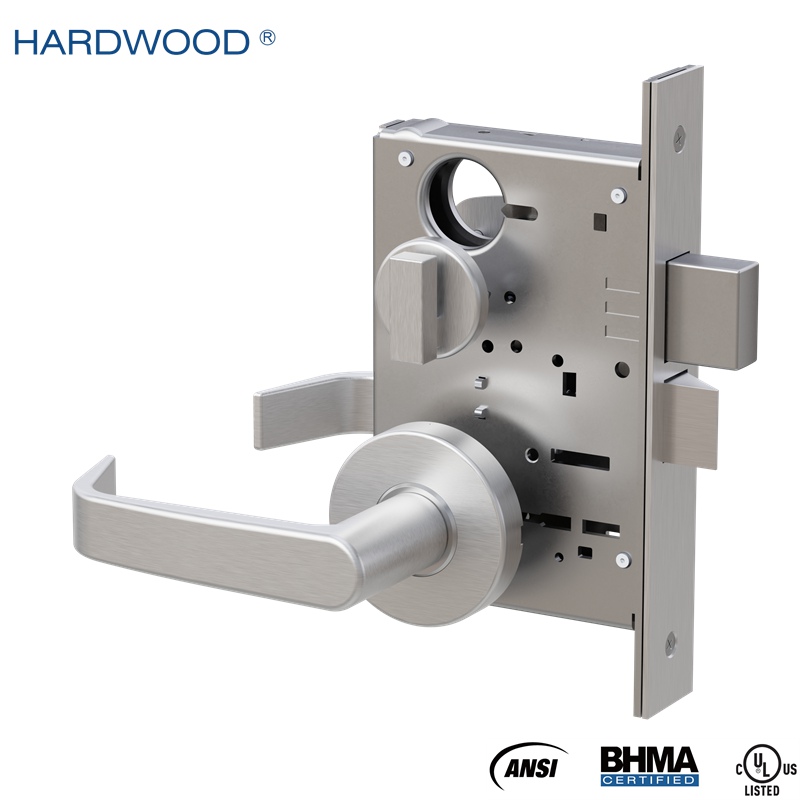

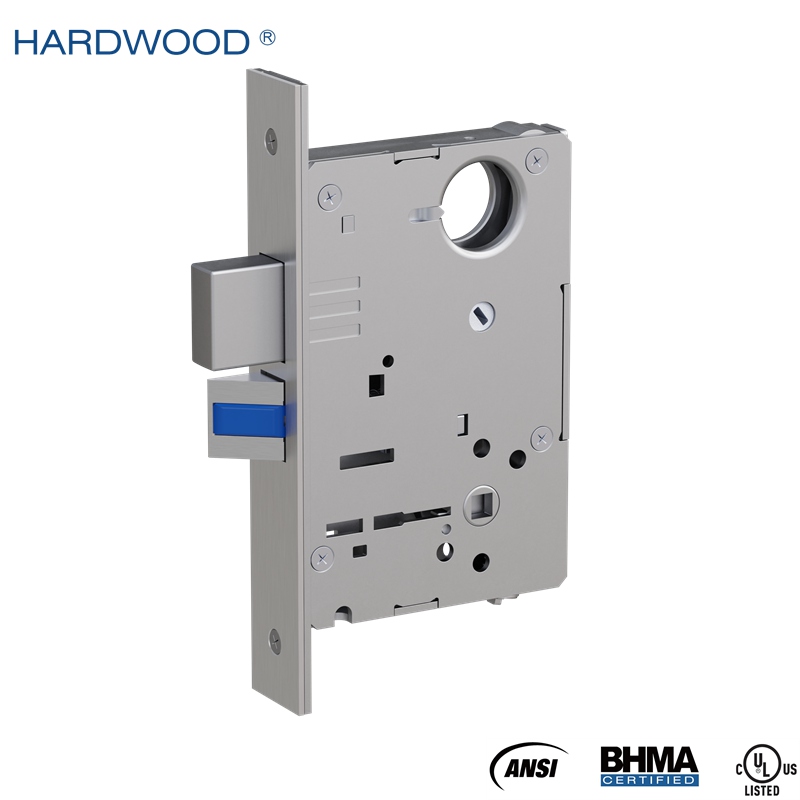

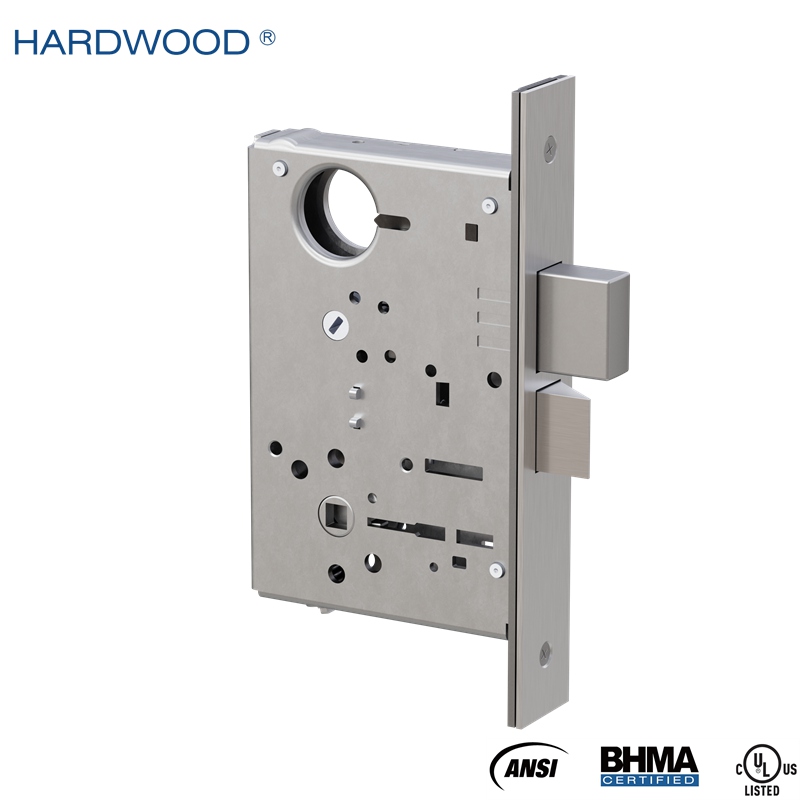

DG02 mortise lock ANSI/BHMA A156.13 F02 Privacy, Bedroom or Bath Lock
The DG02 Privacy, Bedroom or Bath Lock is a Grade 1 mortise lock for heavy-duty commercial applications. It meets ANSI/BHMA A156.13 requirements, with cycle performance exceeding the Grade 1 requirement. The lock case and internal components are made of stainless steel for strength and corrosion resistance. UL listed for up to 3-hour fire-rated openings.
The
DG02 Privacy, Bedroom or Bath Lock meets ANSI/BHMA A156.13 requirements and
Grade 1 performance for heavy-duty use. Its cycle performance exceeds the Grade
1 requirement for doors subject to frequent use.
The
lock case and internal components are made of stainless steel, providing
strength and resistance to corrosion and wear. The construction is suited to
repeated daily operation in commercial and institutional buildings.
The
DG Series uses one multifunction mortise lock body for 10 functions, including
entry, classroom, storeroom, privacy, passage, and deadlock. The lock body fits
multiple door thicknesses and both wood and metal doors.
UL listed for up to 3-hour fire-rated openings, the DG02 is suitable for privacy applications in bedrooms, bathrooms, offices, healthcare facilities, and other commercial and institutional buildings.
Universal
Design
●
One multifunction mortise lock body supports 10 functions.
● Fits multiple door thicknesses and both wood and metal doors.
● Compatible with various lever and trim configurations, including
ADA-compliant levers.
● Available with indicator trim for visual locked/unlocked status.
● Compatible with escutcheon trim and electronic mechanisms.
Quality
●
ANSI Grade 1 mortise lock for heavy-duty, high-traffic use.
● Stainless steel lock case and internal components provide strength and
corrosion resistance.
Flexibility
●
One lock body can be configured for 10 functions.
● Quick Reversible design allows handing to be changed without disassembling
the lock case.
Security
●
Heavy-duty construction and high-strength components provide increased
resistance to forced damage.
● Robust lock construction provides dependable security for demanding
applications.

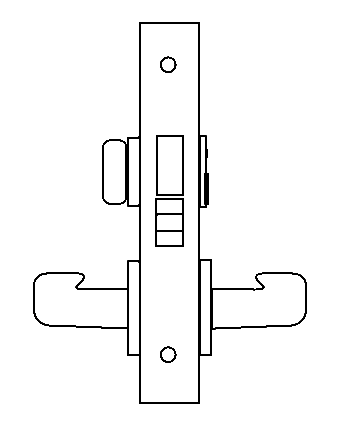

| Picture | Model no. | ANSI no. | Function | Description | Lever | Cylinder | Thumb turn | Emergency turn |
|---|---|---|---|---|---|---|---|---|
|
DG02 | F02 | Privacy, Bedroom or Bath Lock | Latch by either lever; dead bolt by inside turn and outside emergency release | ✓ | ✓ | ✓ |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| CTC | Cylinder to lever distance 3-7/8" (98mm) |
| Lock case | SS304, thickness 3/32" |
| Latch bolt | SS303, A156.13 Grade 1 latch bolt projection 3/4" |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1” |
| Face plate | SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm) |
| Hub | AISI4140 steel, high hardness |
| Strike | SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm) |
| Strike box | PA66 |
| Hand | Field reversible latch bolt |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.13 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
1-3/16" (30mm) curved lip from center of screw holes to end of lip.
Strike box 4-3/4" × 1-1/8" × 1" (120×29×25mm), PA66
