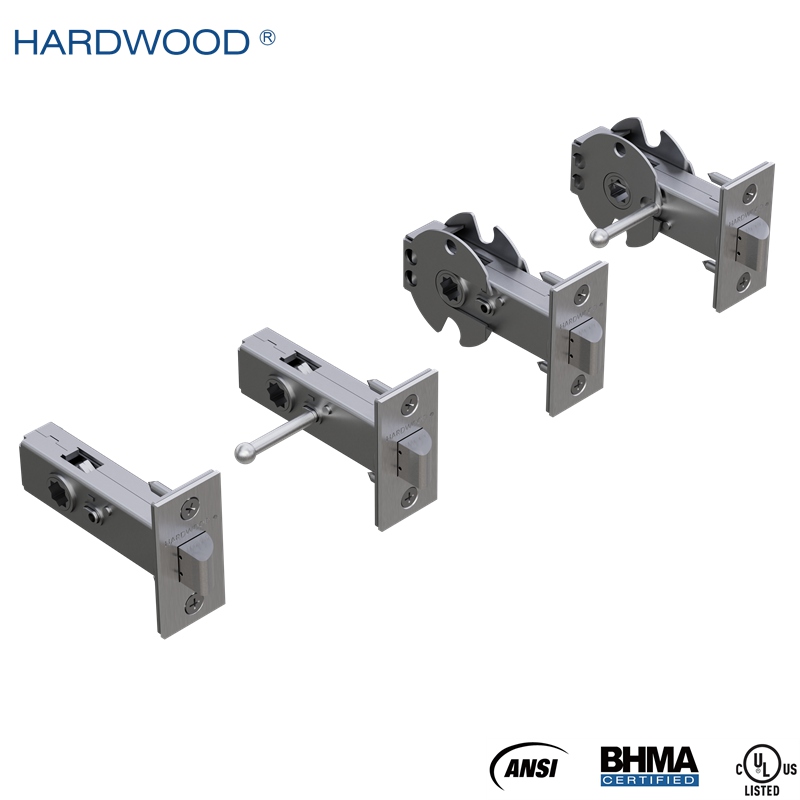

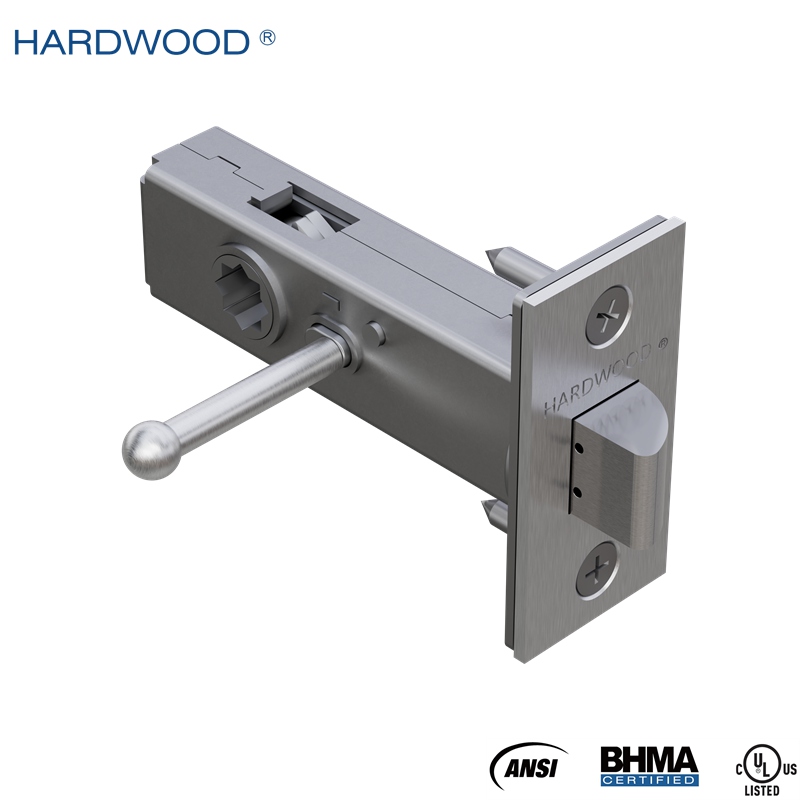

B10-03 Latch Bolt Lock ANSI BHMA A156.2 F76A Privacy, Bedroom or bath lock
The B10-03 Privacy, Bedroom or Bath Lock is an auxiliary latch bolt lock designed to ANSI/BHMA A156.2 requirements. It exceeds the standard cycle performance requirements and is constructed entirely of stainless steel for strength, corrosion resistance, and durability. Designed for privacy applications, it is suitable for commercial and residential doors.
The
B10-03 Privacy, Bedroom or Bath Lock complies with ANSI/BHMA A156.2 functional
requirements and exceeds the required cycle performance. It is designed for
doors subject to regular and frequent use.
All
components are stainless steel, including the lock body and internal parts. The
stainless steel construction provides resistance to corrosion and wear and is
suited to long-term daily use.
The B10-03 is intended for privacy, bedroom, and bath doors in commercial and residential buildings. Typical applications include offices, schools, healthcare facilities, hotels, and other institutional or public spaces.
Performance
●
Complies with ANSI/BHMA A156.2 functional requirements.
● Exceeds the standard cycle performance requirements.
● Designed for regular and high-frequency use.
Construction
●
All components are made of stainless steel.
● Stainless steel construction provides high corrosion resistance and
durability.
● Designed for repeated daily operation.
Application
●
Privacy, bedroom, and bath door applications.
● Suitable for commercial and residential doors.
● Commonly used in offices, schools, healthcare facilities, hotels, and
institutional buildings.
| Picture | Picture | Model no. | ANSI No. | Function | Description | Accessories | Match lever |
|---|---|---|---|---|---|---|---|
|
|

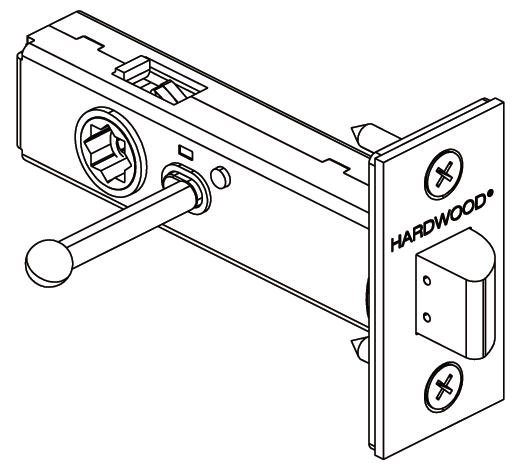

B10-03 | F76A | Privacy, Bedroom or bath lock | Both levers retract latch except when outside lever is locked by inside push button; Outside lever unlocked by operating inside lever or closing door. |

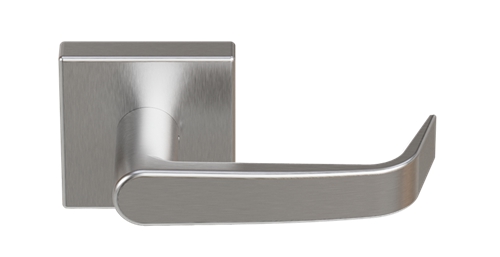

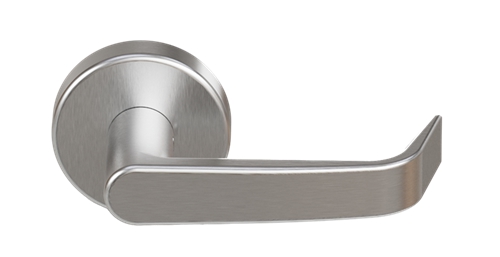

-- | T30 |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/8” (60mm), 2-3/4” (70mm), 5” (127mm), 7” (178mm) |
| Latch bolt | Square corner latch bolt, Brass, chrome plated, direction reversible |
| Latch throw | A156.36 Grade 1-Mortise and Rim locks 1/2" (12.7mm) projection |
| Housing | SS304 |
| Face plate | SS304, 2-1/4"×1-1/8"×5/64” (57×29×2mm) |
| Lever | SS303 solid cast |
| Rose | SS304 square or round |
| Strike | SS304, 4-7/8" ANSI curved lip strike, 2-3/4” curved lip T-strike |
| Strike box | PA66 |
| Hand | Non-handed, latch bolt bevel is field reversible |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.2 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
1-1/16" (27mm) curved lip from center of screw holes to end of lip.
Strike box 4-13/16"×1"×1" (122×26×26mm), PA66
2-3/4" (70mm) curved lip “T” strike SS304.
1-1/4" (32mm) curved lip from center of screw holes to end of lip.
Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA66
2-3/8" (60mm) curved lip “T” strike SS304.
1-5/16" (33mm) curved lip from center of screw holes to end of lip.
Strike box 2-9/32"×1"×21/32" (58×25×16.5mm), PA
