DD18 mortise lock – Dead Lock

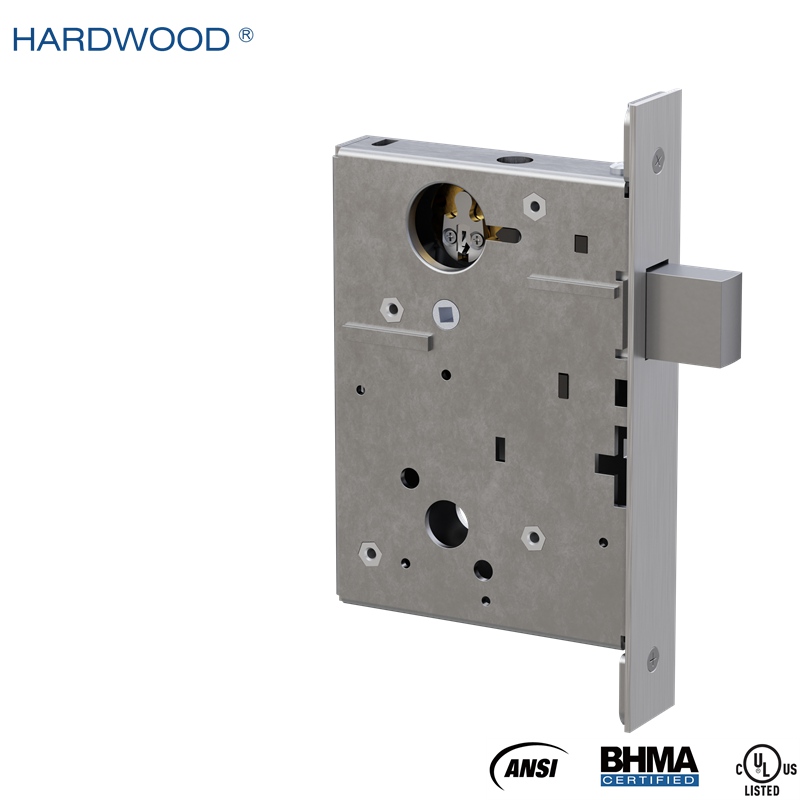

The DD18 Dead Lock is an ANSI/BHMA A156.13 Grade 1 mortise lock for heavy-duty commercial applications. The lock case and internal components are made of stainless steel for strength and corrosion resistance. The DD Series lock body can be configured for 10 functions and is available for wood and metal doors in multiple door thicknesses. UL listed for up to 3-hour fire-rated openings.
- Category
- Mortise Lock
- FUNCTION
- ANSI BHMA A156.13 F18 Dead Lock
01 / OVERVIEW
Overview
The
DD18 Dead Lock complies with ANSI/BHMA A156.13 and meets Grade 1 requirements
for heavy-duty use. Its cycle performance exceeds the Grade 1 requirement,
making it suitable for high-traffic doors.
The
lock case and internal parts are stainless steel, providing good resistance to
corrosion and wear. The construction is intended for repeated daily use in
commercial buildings.
The
DD Series uses a common mortise lock body for 10 functions, including entry,
classroom, storeroom, privacy, passage, and deadlock. The lock body fits wood
or metal doors and is available for different door thicknesses.
UL listed for up to 3-hour fire-rated openings, the DD18 can be used in commercial and institutional buildings where a heavy-duty mortise lock is required.
02 / FEATURE
Feature
Universal
Design
●
One mortise lock body supports 10 functions.
● Fits multiple door thicknesses and wood or metal doors.
● Compatible with various lever and trim configurations, including
ADA-compliant levers.
● Indicator trim is available for visual locked/unlocked status.
● Compatible with escutcheon trim and electronic mechanisms.
Quality
●
ANSI Grade 1 mortise lock for heavy-duty, high-traffic use.
● Stainless steel lock case and internal components resist corrosion and wear.
Flexibility
●
One lock body can be configured for 10 functions.
● Quick Reversible design allows handing to be changed without removing the
lock case.
Security
●
Heavy-duty lock case and high-strength components provide added resistance to
forced entry.
● Solid construction supports dependable locking performance in demanding
applications.
03 / FUNCTION
Function
| Picture | Model no. | ANSI no. | Function | Description | Lever | Cylinder | Thumb turn |
|---|---|---|---|---|---|---|---|

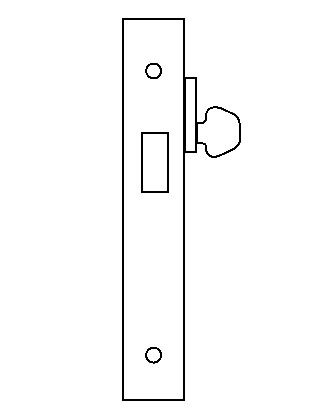

| DD20 | F18 | Dead Lock | Dead bolt operated by key from outside only | ✓ |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1” |
| Face plate | SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm) |
| Hub | AISI4140 steel, high hardness |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm) |
| Strike box | PA66 |
| Hand | Field reversible latch bolt |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.13 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration
Cylinder details
Strike details
ST-04
*Standard
4-7/8" (124mm) ANSI curved lip strike SS304.
1-3/16" (30mm) curved lip from center of screw holes to end of lip.
Strike box 4-3/4" × 1-1/8" × 1" (120×29×25mm), PA66
