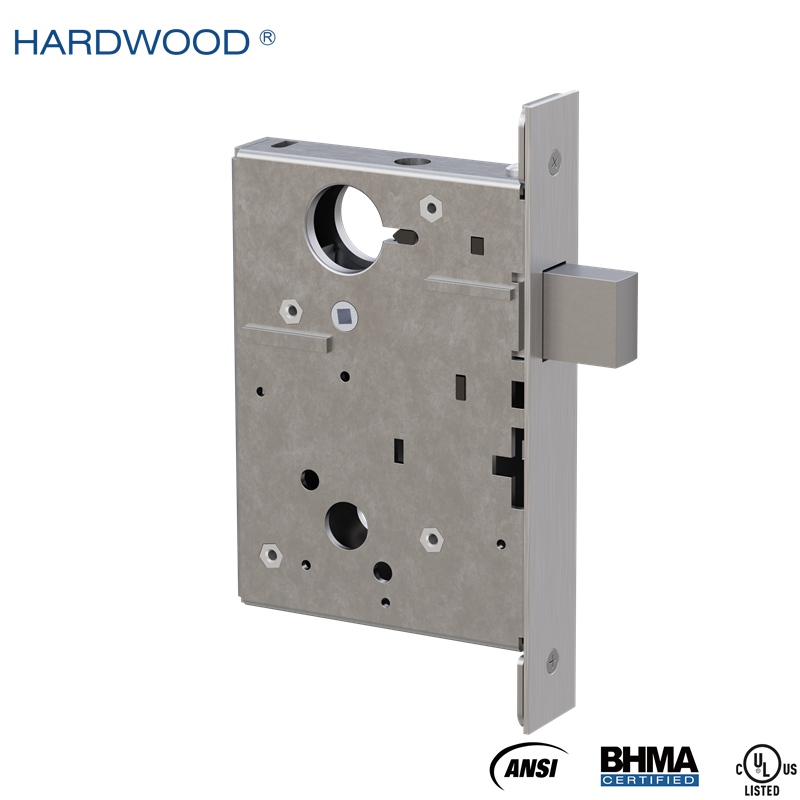

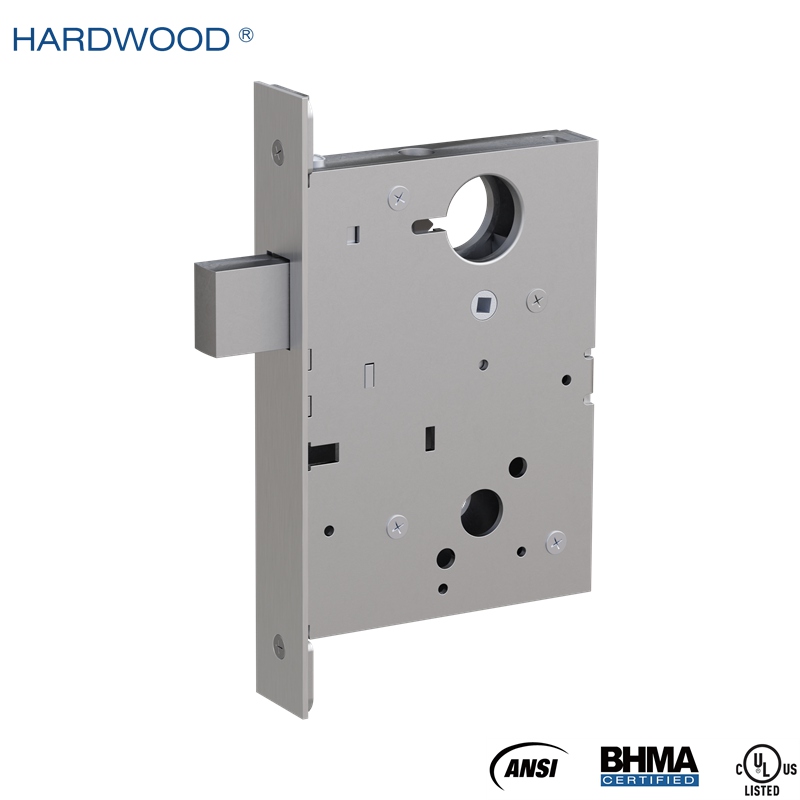

DD17 mortise lock – Dead Lock
The DD17 Dead Lock meets and exceeds ANSI/BHMA A156.13 requirements and Grade 1 cycle performance for heavy-duty applications. Stainless steel components provide strength and corrosion resistance for long-term use. The lock body supports 10 functions within the DD Series, allowing the same basic design to be used across different door applications. UL listed for up to 3-hour fire-rated openings.
- Category
- Mortise Lock
- FUNCTION
- ANSI BHMA A156.13 F17 Dead Lock
01 / OVERVIEW
Overview
The
DD17 Dead Lock is designed and tested to ANSI/BHMA A156.13 requirements, with
Grade 1 performance for heavy-duty commercial and institutional applications.
It exceeds the required cycle performance and is suitable for doors subject to
frequent use.
The
lock case and internal components are made of stainless steel for improved
strength and corrosion resistance, with durable construction for long-term
operation.
The
DD Series uses one multifunction lock body for 10 functions, including entry,
classroom, storeroom, privacy, passage, and deadlock. The lock body is suitable
for multiple door thicknesses and both wood and metal doors.
UL listed for up to 3-hour fire-rated openings, the DD17 is suitable for commercial and institutional applications where durable construction and added security are required.
02 / FEATURE
Feature
Universal
Design
●
One multifunction mortise lock body supports 10 functions.
● Suitable for multiple door thicknesses and both wood and metal doors.
● Compatible with various lever and trim types, including ADA-compliant levers.
● Available with indicator trim for clear visual indication of locked/unlocked
status.
● Compatible with escutcheon trim and electronic mechanisms for hospitality
applications.
Quality
●
ANSI Grade 1 mortise lock for heavy-duty, high-traffic applications.
● Stainless steel lock case and internal components provide strength and
corrosion resistance.
Flexibility
●
10 functions can be configured using the same lock body.
● Quick Reversible design allows handing to be changed without disassembling
the lock case.
Security
●
Strong structural design and high-strength materials provide increased
resistance to forced damage.
● Robust construction provides reliable security for demanding applications.
03 / FUNCTION
Function

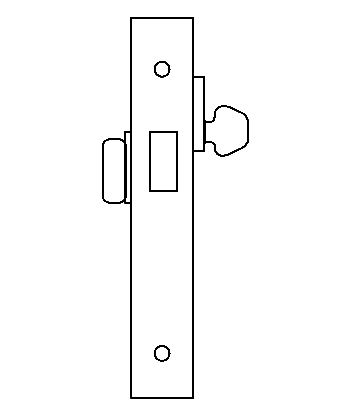

| Picture | Model no. | ANSI no. | Function | Description | Lever | Cylinder | Thumb turn |
|---|---|---|---|---|---|---|---|
| DD17 | F17 | Dead Lock | Dead bolt operated by key from outside and by turn from inside. | ✓ | ✓ |
04 / SPECIFICATION
Specification
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" |
| Dead bolt | 17-4PH stainless steel, A156.13 Grade 1 dead bolt projection 1” |
| Face plate | SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm) |
| Hub | AISI4140 steel, high hardness |
| Cylinder | Φ1-1/8" cylinder, C28000 brass, 6 pin, 3 keys, satin nickel face |
| Strike | SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm) |
| Strike box | PA66 |
| Hand | Field reversible latch bolt |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.13 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
05 / CONFIGURATION
Configuration

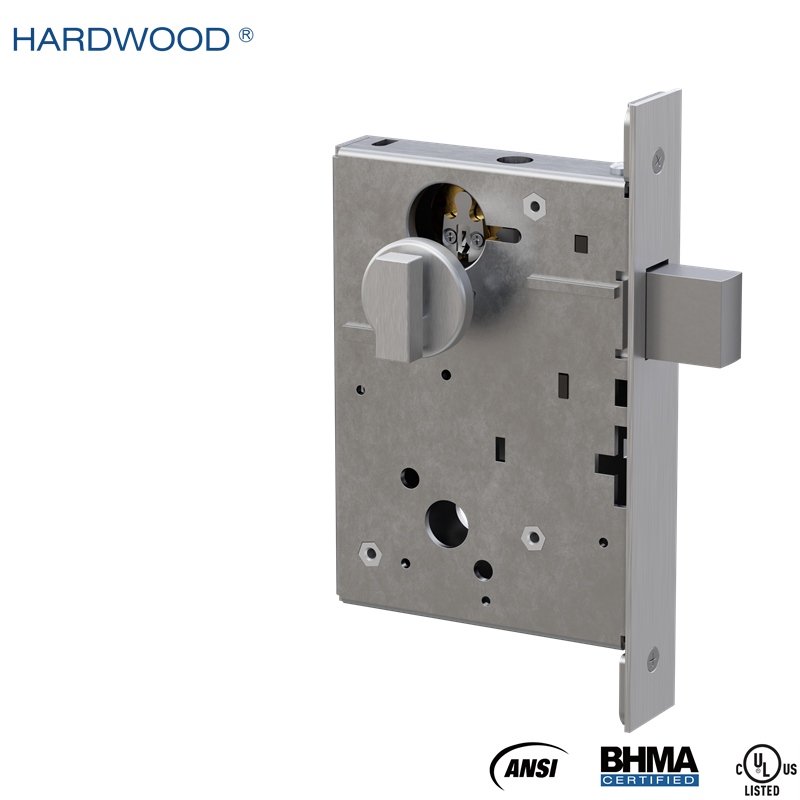

Thumb turn options
Cylinder details
Strike details
ST-04
*Standard
4-7/8" (124mm) ANSI curved lip strike SS304.
1-3/16" (30mm) curved lip from center of screw holes to end of lip.
Strike box 4-3/4" × 1-1/8" × 1" (120×29×25mm), PA66
