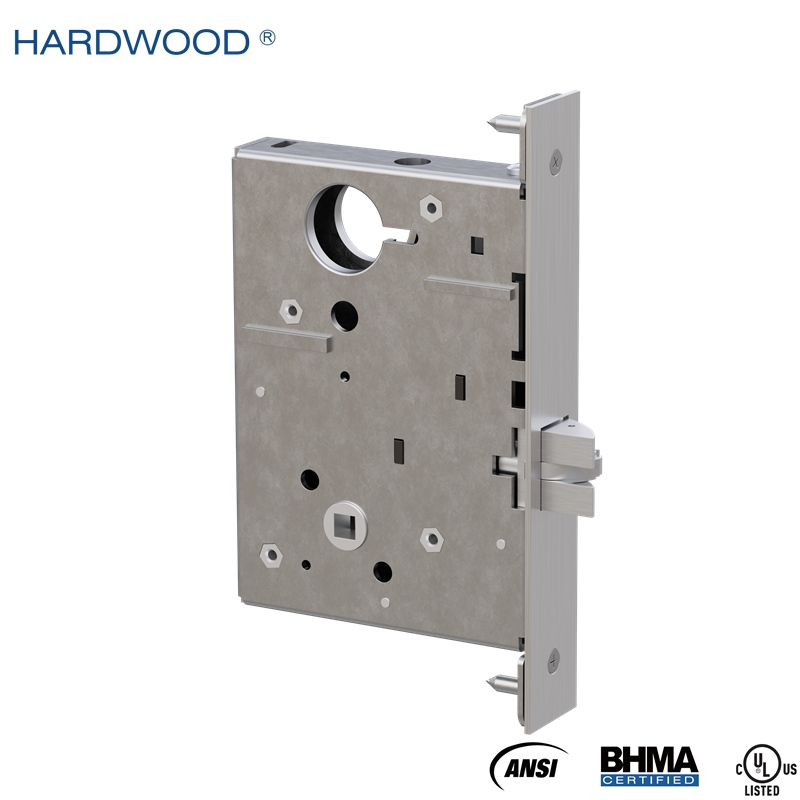

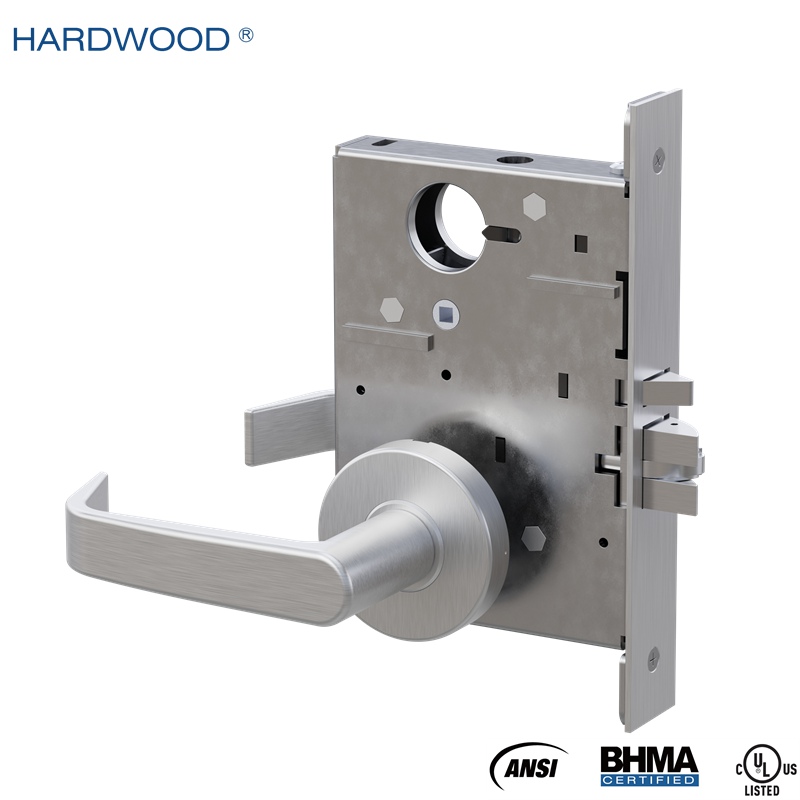

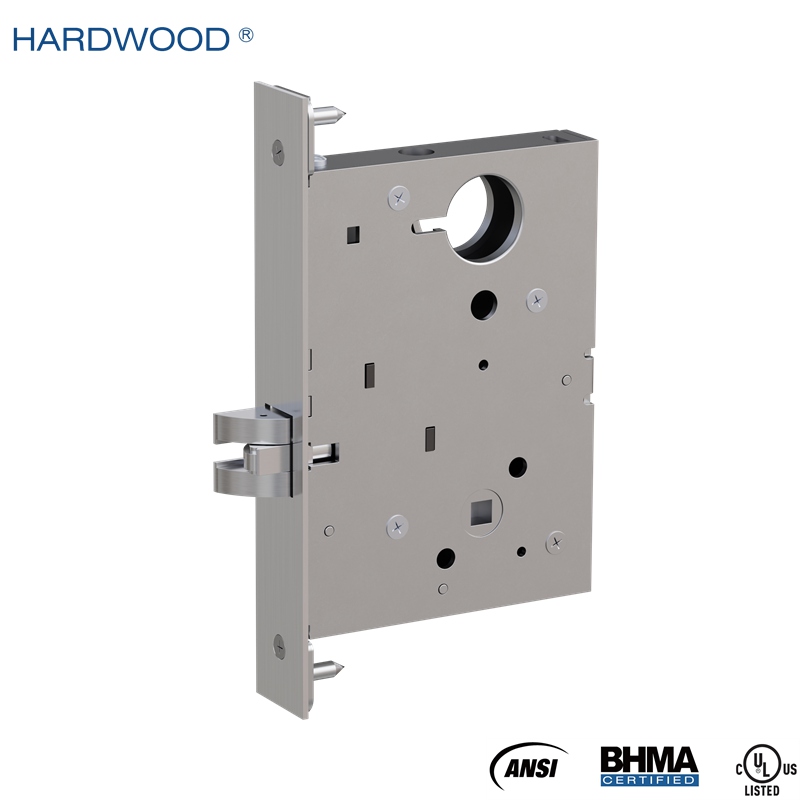

DD01 Mortise lock ANSI BHMA A156.13 F01 Passage or closet lock
The DD01 Passage Lock is a Grade 1 mortise lock designed for heavy-duty commercial applications. It meets and exceeds ANSI/BHMA A156.13 requirements for strength, durability, and operational performance, with cycle performance suited for demanding, high-traffic environments.
The
DD01 Passage Lock is designed in accordance with ANSI/BHMA A156.13 and
engineered to meet the demands of heavy-duty commercial use. Its Grade 1
performance provides reliable strength, durability, and consistent operation in
high-cycle environments.
The
lock case and internal components are constructed from stainless steel to
enhance structural strength and corrosion resistance, helping maintain reliable
performance throughout the service life of the lock.
A
universal design allows the same lock body to accommodate 10 different
functions, multiple door thicknesses, and both wood and metal doors. It also
supports various lever and trim configurations, including ADA-compliant levers,
indicator trim, escutcheon trim, and electronic mechanisms.
UL listed for up to 3-hour fire-rated openings, the DD01 provides a versatile solution for a broad range of commercial, institutional, and hospitality applications.
Universal
Design
●
Multifunction mortise lock body integrates 10 functions into one lock case.
● Suitable for multiple door thicknesses and both wood and metal doors.
● Compatible with various lever and trim types, including ADA-compliant levers.
● Supports indicator trim for clear visual confirmation of locked/unlocked
status.
● Compatible with escutcheon trim and electronic mechanisms for hospitality
applications.
Quality
●
ANSI Grade 1 mortise lock designed for demanding, high-traffic applications.
● Stainless steel lock case and internal components enhance strength and
corrosion resistance.
● Designed and tested to meet ANSI/BHMA A156.13 performance requirements.
● UL listed for up to 3-hour fire-rated openings.
Flexibility
●
10 functions can be configured from a single universal lock body.
● Quick Reversible design allows handing to be changed without disassembling
the lock case.
● Multiple trim and function options provide flexibility for different door
applications.
Security
●
Robust structural design and high-strength materials provide enhanced
resistance to forced external damage.
● Durable construction helps maintain reliable security and performance in
demanding environments.

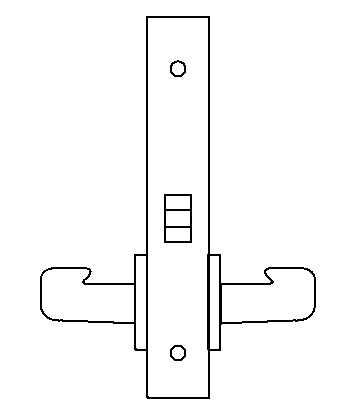

| Picture | Model no. | ANSI no. | Function | Description | Lever | Cylinder | Thumb turn |
|---|---|---|---|---|---|---|---|
| DD01 | F01 | Passage or Closet Lock | Latch bolt operated by lever from either side at all times. | ✓ |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/4" (70mm) |
| Lock case | SS304, thickness 3/32" |
| Latch bolt | SS303, A156.13 Grade 1 latch bolt projection 3/4", 2 pcs anti-friction |
| Face plate | SS304, ANSI/BHMA A156.115 8" × 1-1/4" × 1/16" (203 × 31.7 × 2.1mm) |
| Hub | AISI4140 steel, high hardness |
| Strike | SS304, 4-7/8" ANSI curved lip strike, thickness 1/8" (3mm) |
| Strike box | PA66 |
| Hand | Field reversible latch bolt |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.13 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
1-3/16" (30mm) curved lip from center of screw holes to end of lip.
Strike box 4-3/4" × 1-1/8" × 1" (120×29×25mm), PA66
