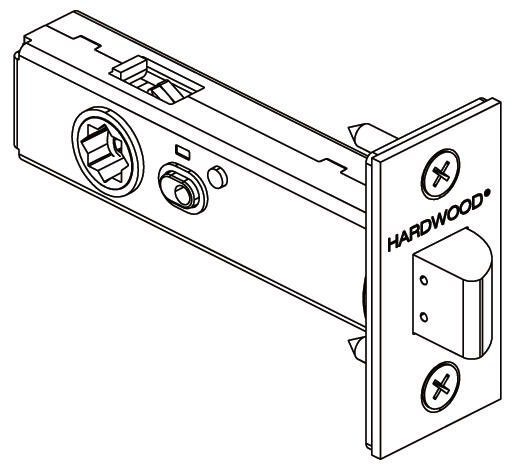

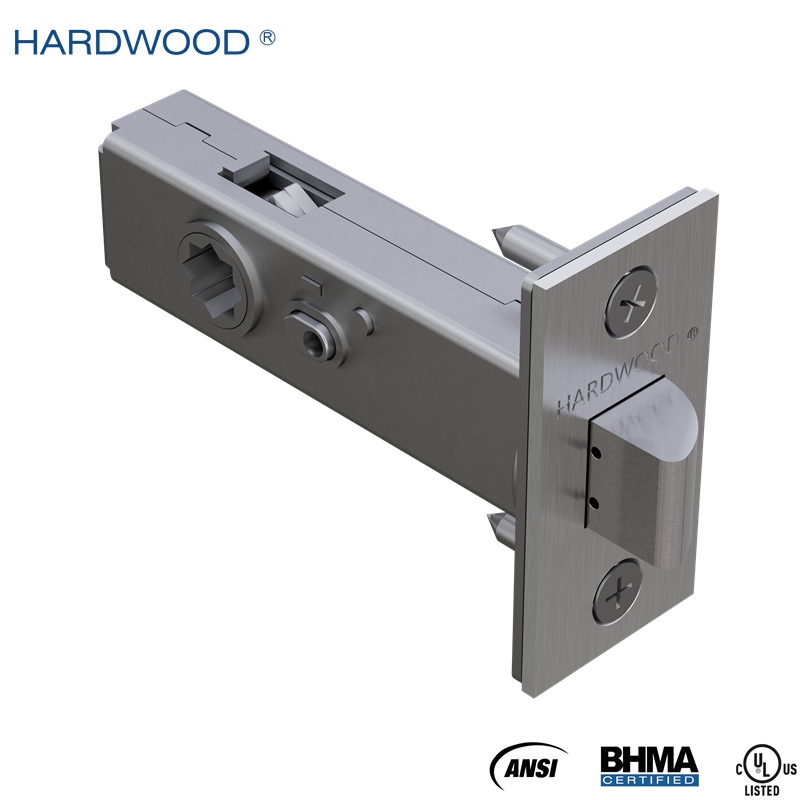

B10-01 latch bolt lock ANSI BHMA A156.2 F75 Passage or closet lock
The B10-01 Auxiliary Latch Bolt Lock complies with ANSI/BHMA A156.2 functional requirements and is designed for high-cycle applications. Constructed entirely of stainless steel components, it provides excellent corrosion resistance and durability for long-term use. The B10-01 is suitable for passage and closet applications in commercial and residential buildings.
The B10-01 Series is an auxiliary latch
bolt lock designed and tested to ANSI/BHMA A156.2 functional requirements. Its
cycle performance exceeds the requirements of the standard, making it suitable
for doors subject to frequent use.
All lock components are made of stainless
steel, providing good resistance to corrosion, wear, and daily use. The B10-01
is designed for passage and closet applications and can be used on both
commercial and residential doors.
Typical applications include office buildings, schools and universities, healthcare facilities, manufacturing plants, government buildings, and other high-traffic commercial or public institutional spaces.
Performance
● Complies with ANSI/BHMA A156.2
functional requirements.
● Cycle performance exceeds the requirements of the standard.
● Designed for frequent-use applications.
Construction
● Stainless steel construction provides
excellent corrosion resistance and durability.
● Designed for repeated daily use in demanding environments.
Applications
● Suitable for passage, privacy, and dummy trim
applications.
● Designed for commercial and residential doors.
● Suitable for offices, schools, universities, healthcare facilities,
manufacturing plants, and government buildings.
| Picture | Picture | Model no. | ANSI No. | Function | Description | Accessories | Match lever |
|---|---|---|---|---|---|---|---|
|
|
B10-01 | F75 | Passage & closet lock | Both levers retract latch at all times. | -- | T30 |
| Door preparation | ANSI/BHMA A156.115W or A156.115 |
|---|---|
| Door thickness | For doors 1-3/4" (44mm) to 2-1/4" (57mm) thick standard |
| Stile | 4-1/2" (114mm) minimum stile |
| Backset | 2-3/8” (60mm), 2-3/4” (70mm), 5” (127mm), 7” (178mm) |
| Latch bolt | Square corner latch bolt, Brass, chrome plated, direction reversible |
| Latch throw | A156.36 Grade 1-Mortise and Rim locks 1/2" (12.7mm) projection |
| Housing | SS304 |
| Face plate | SS304, 2-1/4"×1-1/8"×5/64” (57×29×2mm) |
| Lever | SS303 solid cast |
| Rose | SS304 square or round |
| Strike | SS304, 4-7/8" ANSI curved lip strike, 2-3/4” curved lip T-strike |
| Strike box | PA66 |
| Hand | Non-handed, latch bolt bevel is field reversible |
| Finishes | US32D |
| ANSI/BHMA | ANSI/BHMA A156.2 certified Grade 1 |
| UL listed | UL/cUL 10C listed for 3 hour fire rating |
4-7/8" (124mm) ANSI curved lip strike SS304.
1-1/16" (27mm) curved lip from center of screw holes to end of lip.
Strike box 4-13/16"×1"×1" (122×26×26mm), PA66
2-3/4" (70mm) curved lip “T” strike SS304.
1-1/4" (32mm) curved lip from center of screw holes to end of lip.
Strike box 2-11/16"×1-1/8"×1" (69×28.5×26mm), PA66
2-3/8" (60mm) curved lip “T” strike SS304.
1-5/16" (33mm) curved lip from center of screw holes to end of lip.
Strike box 2-9/32"×1"×21/32" (58×25×16.5mm), PA
